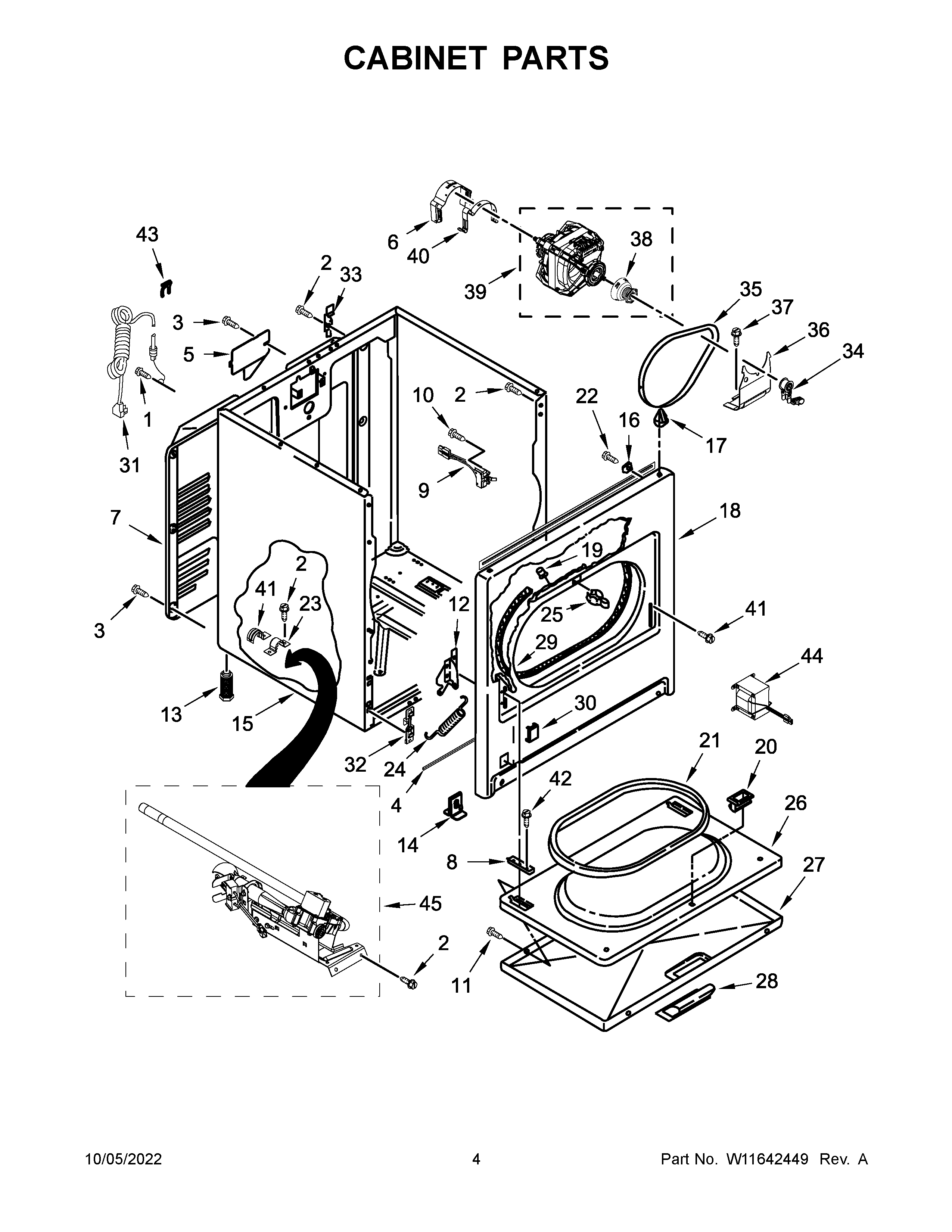

4GWGD4815FW2 03 – CABINET PARTS

4GWGD4815FW2 03 – CABINET PARTS

Products

PositionProduct
1W10850756 Whirlpool Screw
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4W11596046 Whirlpool Seal
5W11736322 Whirlpool Cover Assembly
6WP3404162 Whirlpool Clamp
7W11626083 Whirlpool Rear Panel
8W11252547 Whirlpool Clip Assembly
9SWITCH-DOOR DRYER
10WP3395530 Whirlpool Screw
11WP488627 Whirlpool Refrigerator Screw
12AWP8066057 Whirlpool Door Hinge
12WP8066056 Whirlpool Door Hinge
1349621 Whirlpool Leveling Feet
14W10575896 Whirlpool Clip
158533643 Whirlpool Dryer White Cabinet
16WP98234 Whirlpool Nut
17WP8066092 Whirlpool Panel Clip
18279740 Whirlpool Panel Primary with O/S2
19279220 Whirlpool Clip
20WP3389441 Whirlpool Door Catch
21W10906683 Whirlpool Door Seal
22SCREW
23341029 Whirlpool Clamp
24WPW10041960 Whirlpool Door Spring
25279570 Whirlpool Dryer Door Latch Kit
26WP695737 Whirlpool Door
27W10861223 Whirlpool Door Appliance
28W10861225 Whirlpool Dryer White Door Handle
29W11035878 Whirlpool Bearing and Seal
30W10811916 Whirlpool Plug
31AWPW10475423 Whirlpool Adapter
31C10A CORD LOCK
31BWPW10476822 Whirlpool Adapter
31WPW10476824 Whirlpool Power Cord
31DCORD ADAPTER, EUROPEAN
32W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33WP8066217 Whirlpool Hinge
34WP691366 Whirlpool Dryer Idler Pulley Assembly
35341241 Whirlpool Dryer Drum Belt
36WP348780 Whirlpool Base
373400500 Whirlpool Screw
38WP8066184 Whirlpool Dryer Motor Pulley
39ASSEMBLY, MOTOR (60 HZ)
40CLAMP
41Screw, 10-32 x 1/2
42WP308685 Whirlpool Microwave Screw
43W11712577 Whirlpool Clip
44W10851673 Whirlpool Transformer
45W11652257 Whirlpool Gas Burner
