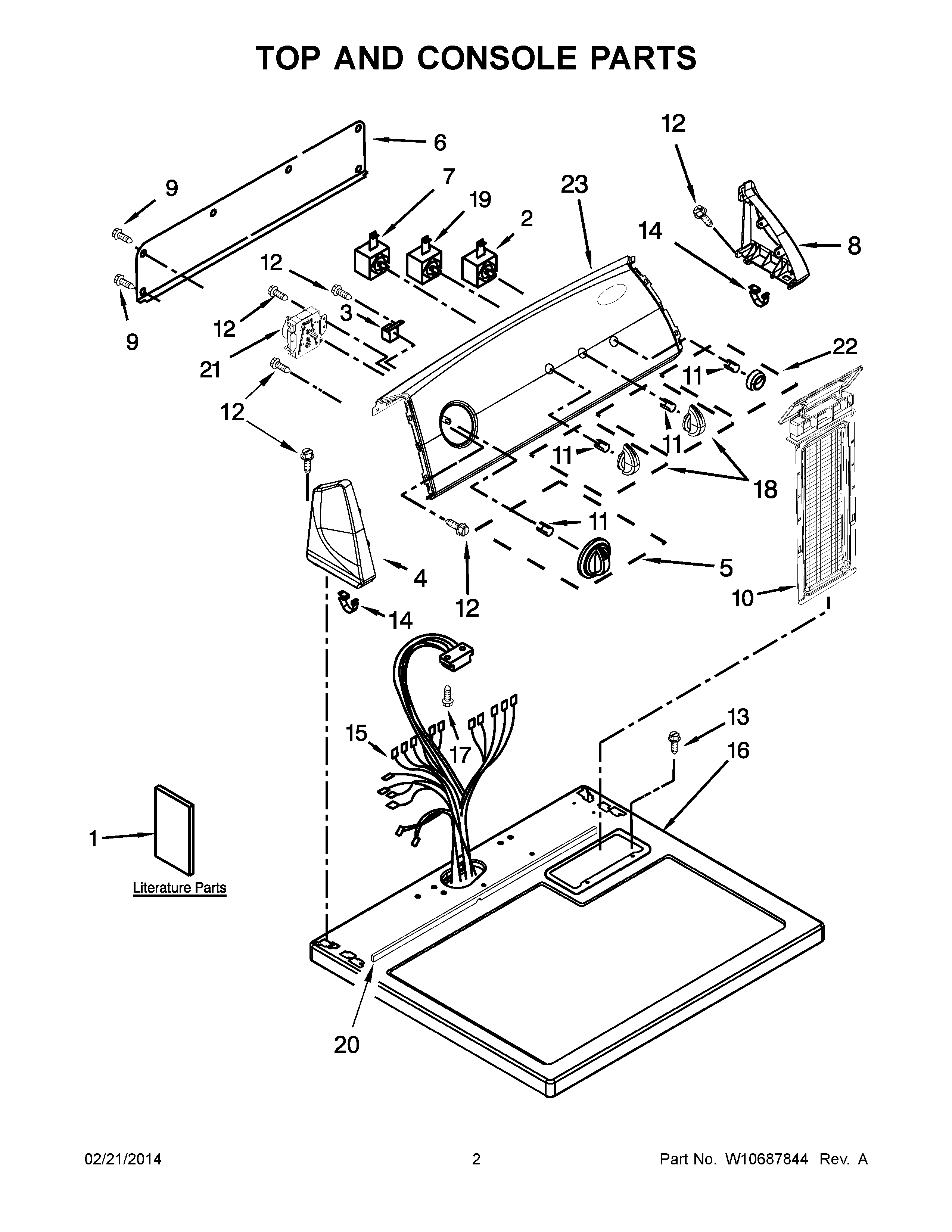

4GWGD4900YQ4 02 – TOP AND CONSOLE PARTS

4GWGD4900YQ4 02 – TOP AND CONSOLE PARTS

Written by

in

4GWGD4900YQ4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WPW10112668 Whirlpool Relay Push to Start
33952439 Whirlpool Buzzer
4WP8565957 Whirlpool Endcap Assembly
5TIMER KNOB ASSEMBLY
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8WP8565954 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15HARNESS, WIRING
16WP8563663 Whirlpool Top Assembly
17W11693756 Whirlpool Screw Assembly
18Knob, Control (3)
19WP3405156 Whirlpool Switch
20W10316616 Whirlpool Seal
21WPW10185982 Whirlpool Timer
22WPW10034790 Whirlpool Knob
23WPW10434962 Whirlpool Control Panel
