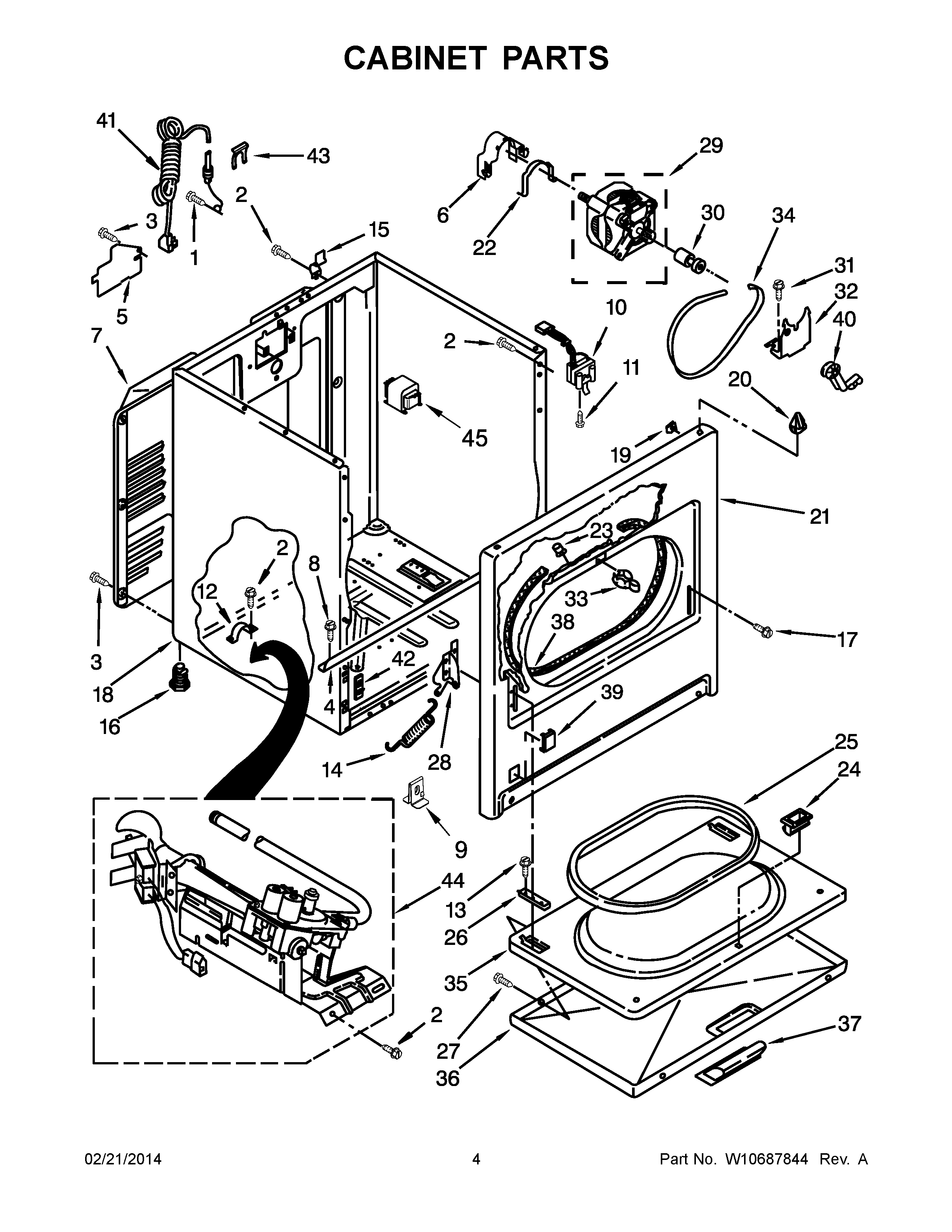

4GWGD4900YQ4 03 – CABINET PARTS

4GWGD4900YQ4 03 – CABINET PARTS

Written by

in

4GWGD4900YQ4 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIWPW10475423 Whirlpool Adapter
NIWPW10476822 Whirlpool Adapter
NI10A CORD LOCK
NICABINET (NOT A SERVICEABLE PART)
NIWPW10476820 Whirlpool Adapter
1W10850756 Whirlpool Screw
2SCREW
3WP693995 Whirlpool Screw
4BRACKET, CABINET
5W11539855 Whirlpool Refrigerator Pump
6WP3404162 Whirlpool Clamp
7280043 Whirlpool Rear Panel
8WP3390631 Whirlpool Screw
9W10575896 Whirlpool Clip
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12341029 Whirlpool Clamp
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15WP8066217 Whirlpool Hinge
17Screw, 10-32 x 1/2
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP8066092 Whirlpool Panel Clip
21279740 Whirlpool Panel Primary with O/S2
22CLAMP
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP488627 Whirlpool Refrigerator Screw
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
29W11618508 Whirlpool Drive Motor
30W11233559 Whirlpool Motor Pulley
313400500 Whirlpool Screw
32WP348780 Whirlpool Base
33279570 Whirlpool Dryer Door Latch Kit
34341241 Whirlpool Dryer Drum Belt
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37W10877261 Whirlpool Handle Assembly
38W11035878 Whirlpool Bearing and Seal
39W10811916 Whirlpool Plug
40WP691366 Whirlpool Dryer Idler Pulley Assembly
41WPW10476824 Whirlpool Power Cord
42W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
43W11712577 Whirlpool Clip
44W10823508 Whirlpool Gas Burner
45TRANSFORMER
