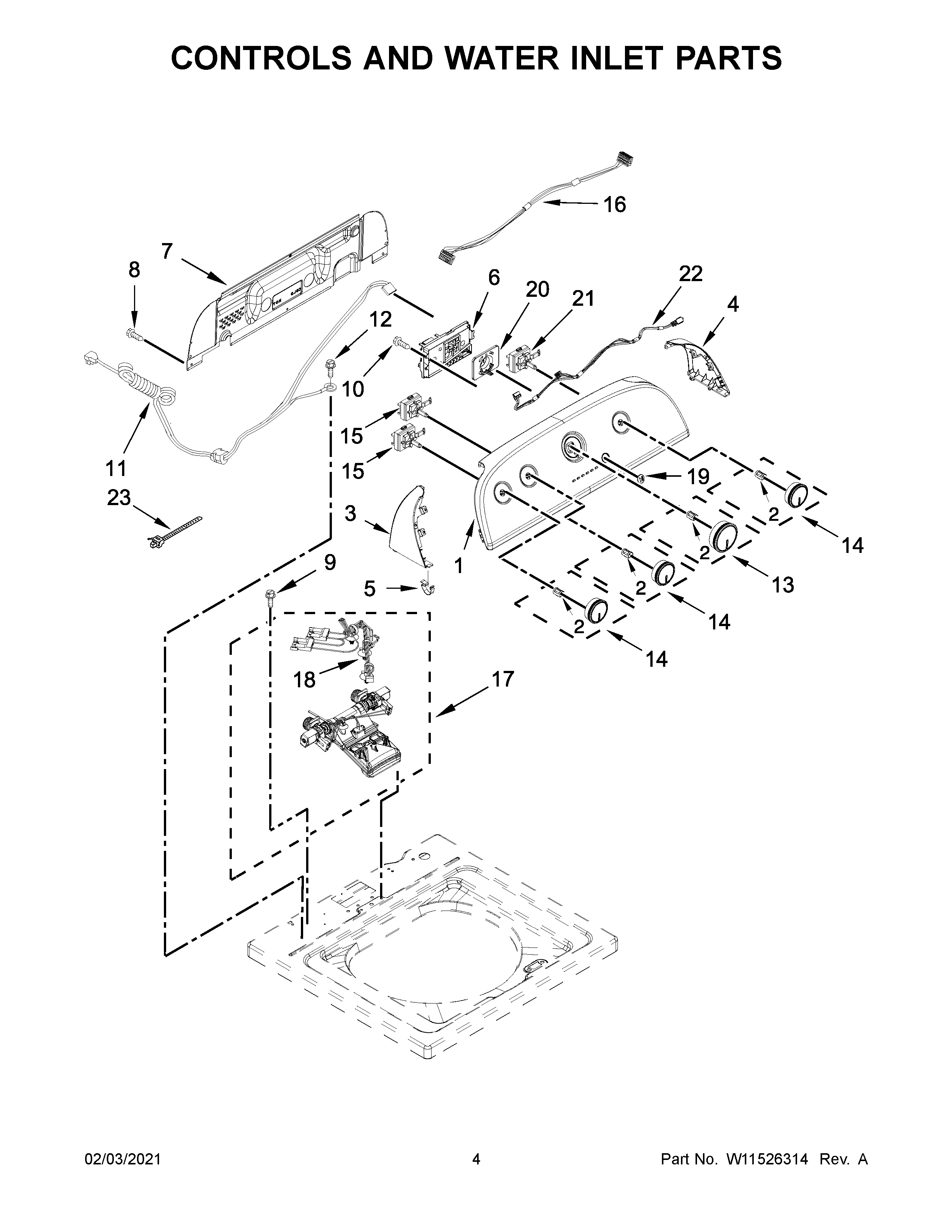

4GWTW1805LW0 03 – CONTROLS AND WATER INLET PARTS

4GWTW1805LW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4GWTW1805LW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NIWPW10475423 Whirlpool Adapter
NICABINET (NOT A SERVICEABLE PART)
NIWPW10476822 Whirlpool Adapter
1PANEL, CONSOLE
2WP688805 Whirlpool Spring Clip
3END CAP (RIGHT) (WHITE)
4END CAP (LEFT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11608068-includeCORE Whirlpool W11608068 Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11CORD, UNIVERSAL POWER
12AW10846509 Whirlpool Screw
123400073 Whirlpool Screw
13W10756270 Whirlpool Dryer Timer Knob
15WPW10285512 Whirlpool Cycle Switch
16W10694682 Whirlpool Wire Harness
17W11038628 Whirlpool Valve Assembly
18W10868094 Whirlpool Wire Harness
19W11084340 Whirlpool Push Button
20WPW10596298 Whirlpool Push Button
21WPW10285511 Whirlpool Cycle Switch
22W10786100 Whirlpool Wire Harness
23WPW10339879 Whirlpool Wire Tie
