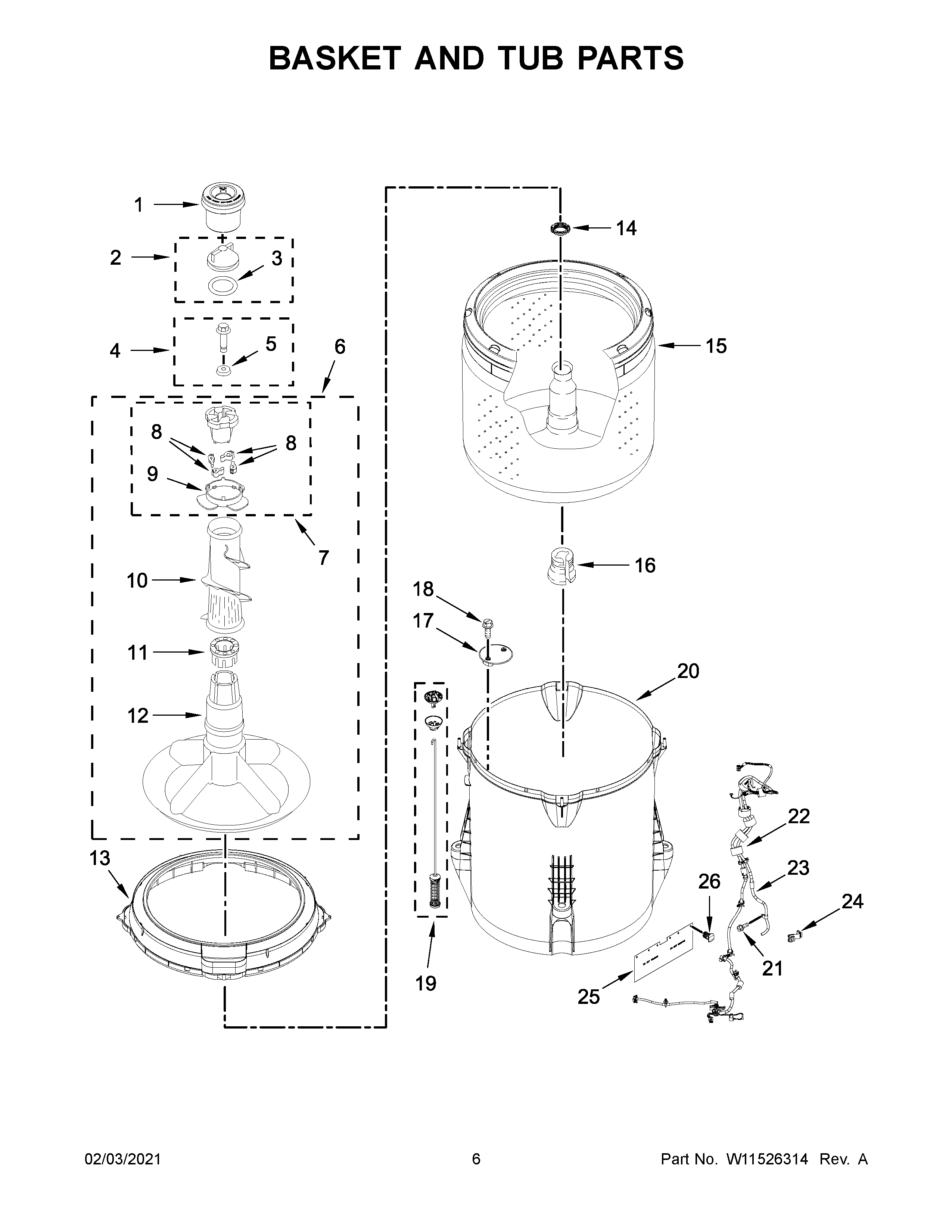

4GWTW1805LW0 04 – BASKET AND TUB PARTS

4GWTW1805LW0 04 – BASKET AND TUB PARTS

Written by

in

4GWTW1805LW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
18575076A Whirlpool Fabric Softener Dispenser
2WPW10074580 Whirlpool Agitator Inner Cap and Seal
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6285565 Whirlpool Agitator Assembly
7285811 Whirlpool Washer Agitator Repair Kit
880040 Whirlpool Washer Agitator Dog Kit
9WP3363661 Whirlpool Bearing Cam
10WP3348752 Whirlpool Agitator Mover
11285587 Whirlpool Thrust Washer
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10215093 Whirlpool Filter
18WP8533928 Whirlpool Refrigerator Screw
19W10780045 Whirlpool Suspension Rod
20W10371566 Whirlpool Outer Tub
21WPW10109200 Whirlpool Screw
22HARNESS, LOWER
23WP353244 Whirlpool Hose
24CLIP
25W10339098 Whirlpool Shield
26W10429200 Whirlpool Retainer
