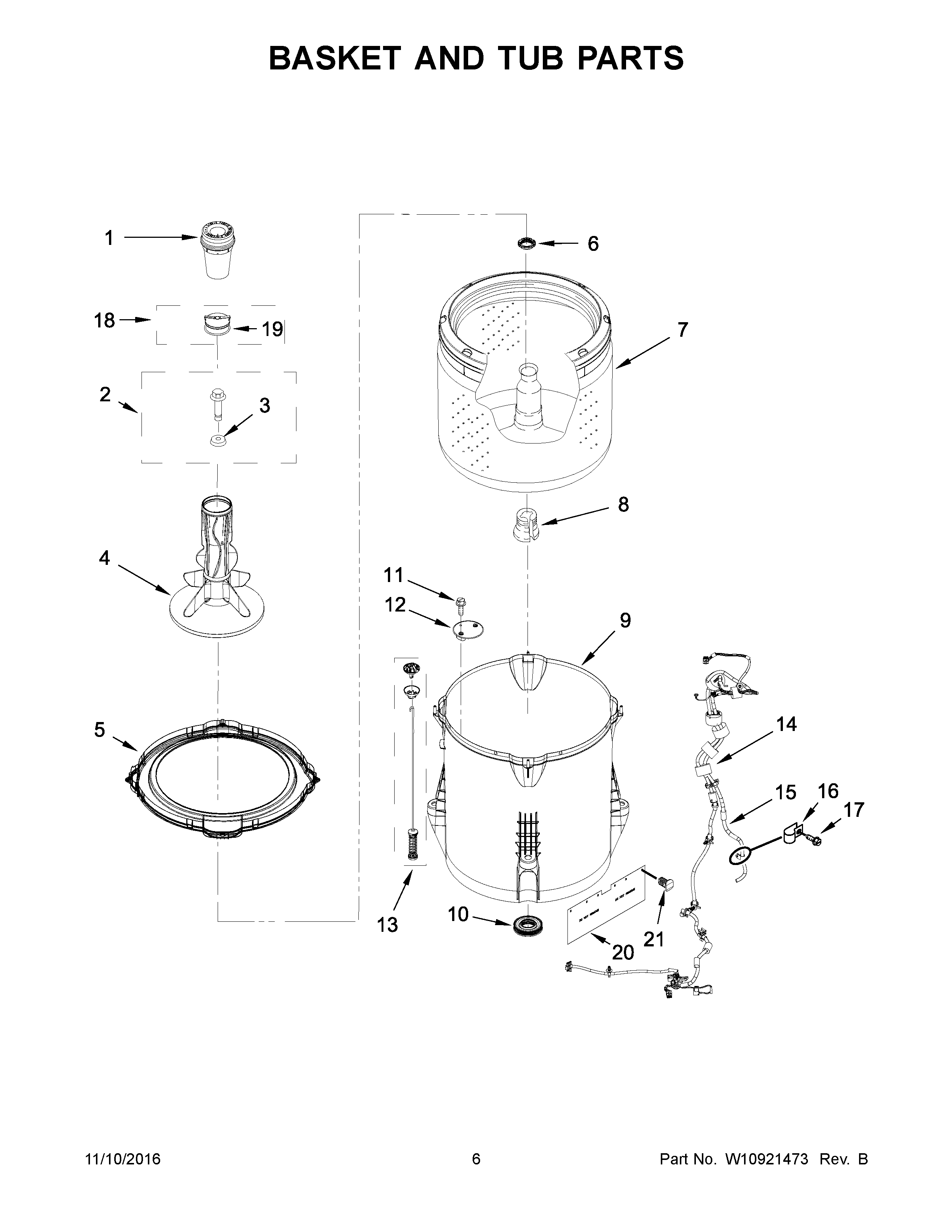

4GWTW3000FW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	285565 Whirlpool Agitator Assembly
5	WPW10531289 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	W10554251 Whirlpool Basket
8	WP389140 Whirlpool Drive Block or Bell
9	W10371566 Whirlpool Outer Tub
10	W10324647 Whirlpool Seal Tub
11	WP8533928 Whirlpool Refrigerator Screw
12	WPW10215093 Whirlpool Filter
13	W10780045 Whirlpool Suspension Rod
14	HARNESS, LOWER
15	WP353244 Whirlpool Hose
16	W10005430 Whirlpool Clamp
17	WPW10109200 Whirlpool Screw
18	WPW10074580 Whirlpool Agitator Inner Cap and Seal
19	WPW10072840 Whirlpool Seal Assembly
20	W10339098 Whirlpool Shield
21	W10429200 Whirlpool Retainer
