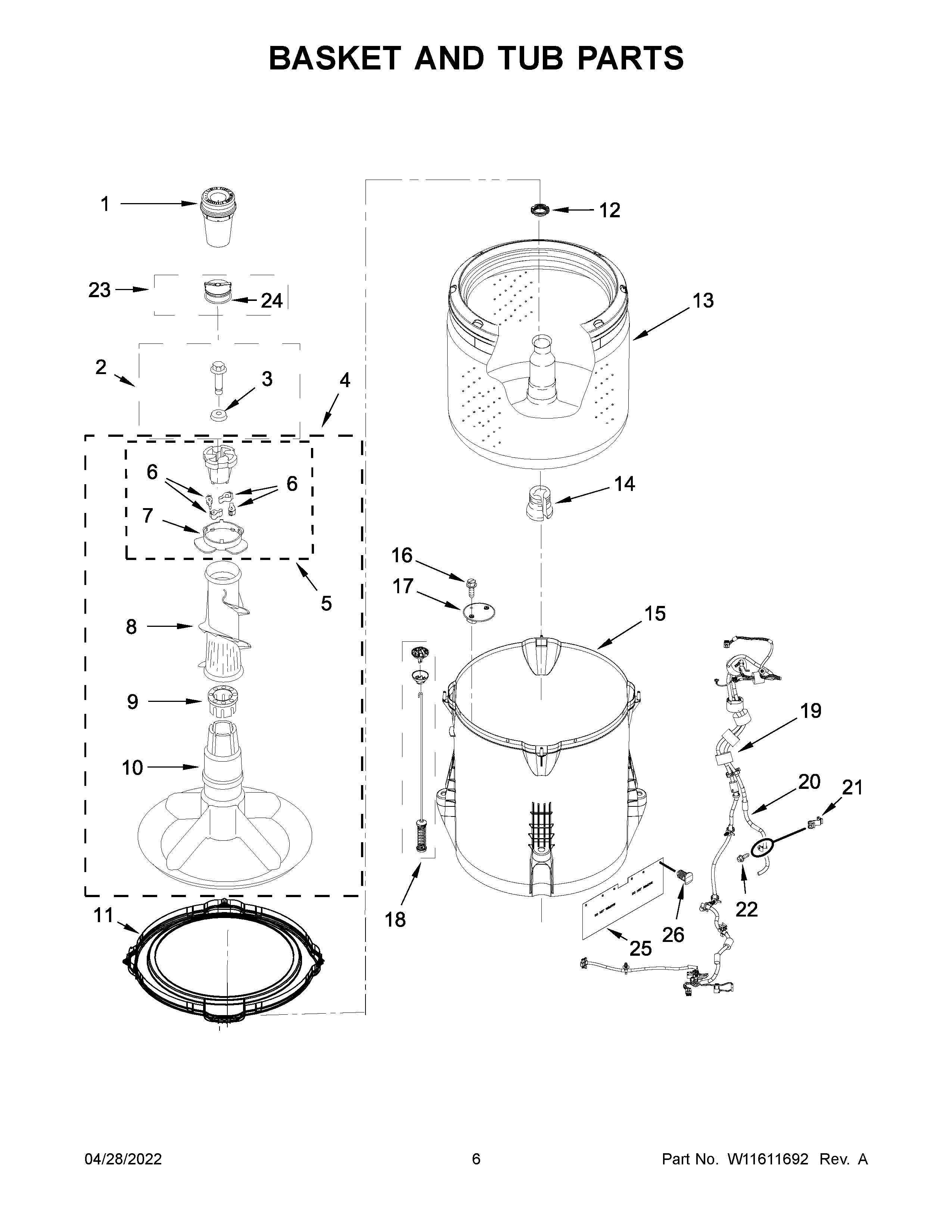

4GWTW3000FW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	W10772621 Whirlpool Washplate Screw
3	WP3949550 Whirlpool Gasket Assembly
4	285565 Whirlpool Agitator Assembly
5	285811 Whirlpool Washer Agitator Repair Kit
6	80040 Whirlpool Washer Agitator Dog Kit
7	WP3363661 Whirlpool Bearing Cam
8	WP3348752 Whirlpool Agitator Mover
9	285587 Whirlpool Thrust Washer
10	AGITATOR
11	WPW10531289 Whirlpool Tub Ring
12	WP21366 Whirlpool Spanner Nut
13	W10554251 Whirlpool Basket
14	WP389140 Whirlpool Drive Block or Bell
15	W10371566 Whirlpool Outer Tub
16	WP8533928 Whirlpool Refrigerator Screw
17	WPW10215093 Whirlpool Filter
18	W10780045 Whirlpool Suspension Rod
19	HARNESS, LOWER
20	WP353244 Whirlpool Hose
21	CLIP
22	WPW10109200 Whirlpool Screw
23	WPW10074580 Whirlpool Agitator Inner Cap and Seal
24	WPW10072840 Whirlpool Seal Assembly
25	W10339098 Whirlpool Shield
26	W10429200 Whirlpool Retainer
