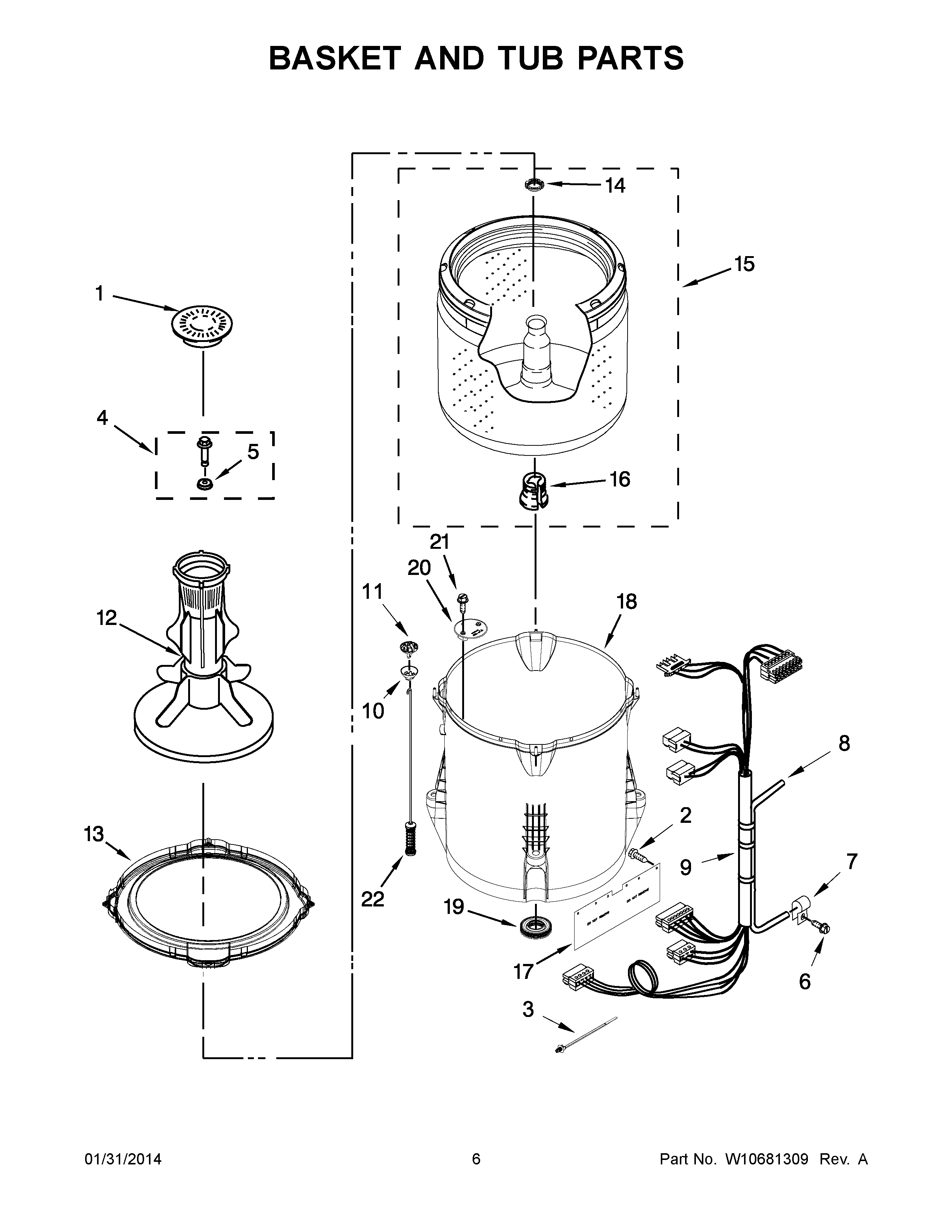

4GWTW4740YQ2 04 – BASKET AND TUB PARTS

4GWTW4740YQ2 04 – BASKET AND TUB PARTS

Written by

in

4GWTW4740YQ2 04 – BASKET AND TUB PARTS

Products

PositionProduct
1WP3352483 Whirlpool Cap
2W10429200 Whirlpool Retainer
3WPW10298887 Whirlpool Wire Tie Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6WPW10109200 Whirlpool Screw
7W10005430 Whirlpool Clamp
8WP353244 Whirlpool Hose
9W11188793 Whirlpool Wire Harness
10W10440729 Whirlpool Suspension
11BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
12AGITATOR
13RING-TUB
14WP21366 Whirlpool Spanner Nut
15W10738339 Whirlpool Basket Assembly
16WP389140 Whirlpool Drive Block or Bell
17W10339098 Whirlpool Shield
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
20WPW10215093 Whirlpool Filter
21WP8533928 Whirlpool Refrigerator Screw
22W10780048 Whirlpool Washer Suspension Rod Assembly
