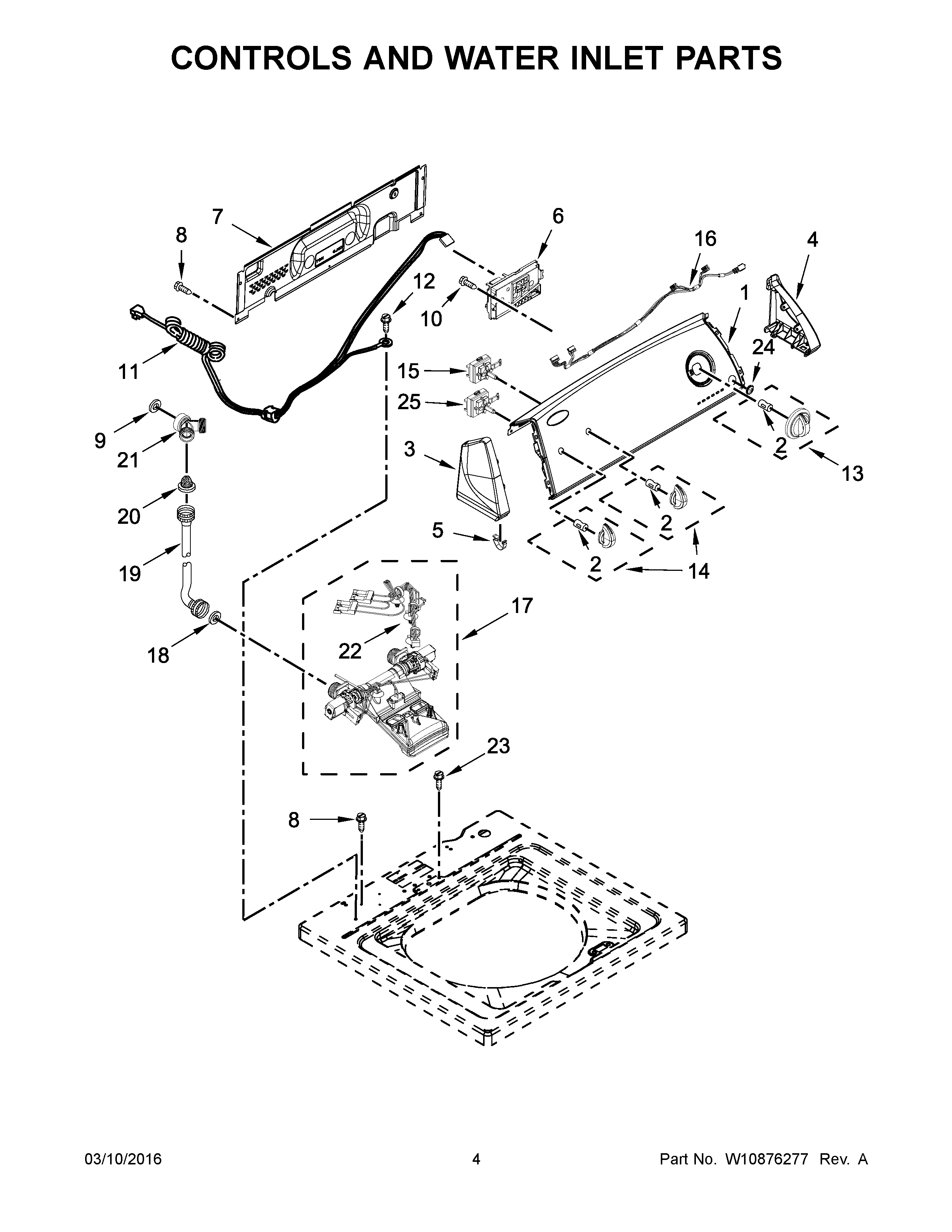

4GWTW4740YQ3 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	WPW10476822 Whirlpool Adapter
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10475423 Whirlpool Adapter
1	WPW10365091 Whirlpool Control Panel
2	WP8536939 Whirlpool Spring Clip
3	WP8565957 Whirlpool Endcap Assembly
4	WP8565954 Whirlpool Endcap
5	WP8312709 Whirlpool Endcap Clip
6	W10754631 Whirlpool Electronic Control Board + Core
7	WPW10461159 Whirlpool Rear Panel
8	WP489069 Whirlpool Compactor Screw
9	WP3357450 Whirlpool Washer Assembly
10	WP90767 Whirlpool Screw
11	W10422755 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	TIMER KNOB ASSEMBLY
14	Knob, Control (3)
15	WPW10285511 Whirlpool Cycle Switch
16	W10537670 Whirlpool Wire Harness
17	WPW10683676 Whirlpool Valve
18	WP16123 Whirlpool Washer
19	WP89503 Whirlpool Washer Fill Hose
20	285452A Whirlpool Hose Seal and Screen
21	WPW10269488 Whirlpool Connector
22	W10876654 Whirlpool Wire Harness
23	WP8281163 Whirlpool Refrigerator Screw
24	WPW10251309 Whirlpool Push Button
25	WPW10285517 Whirlpool Cycle Switch
