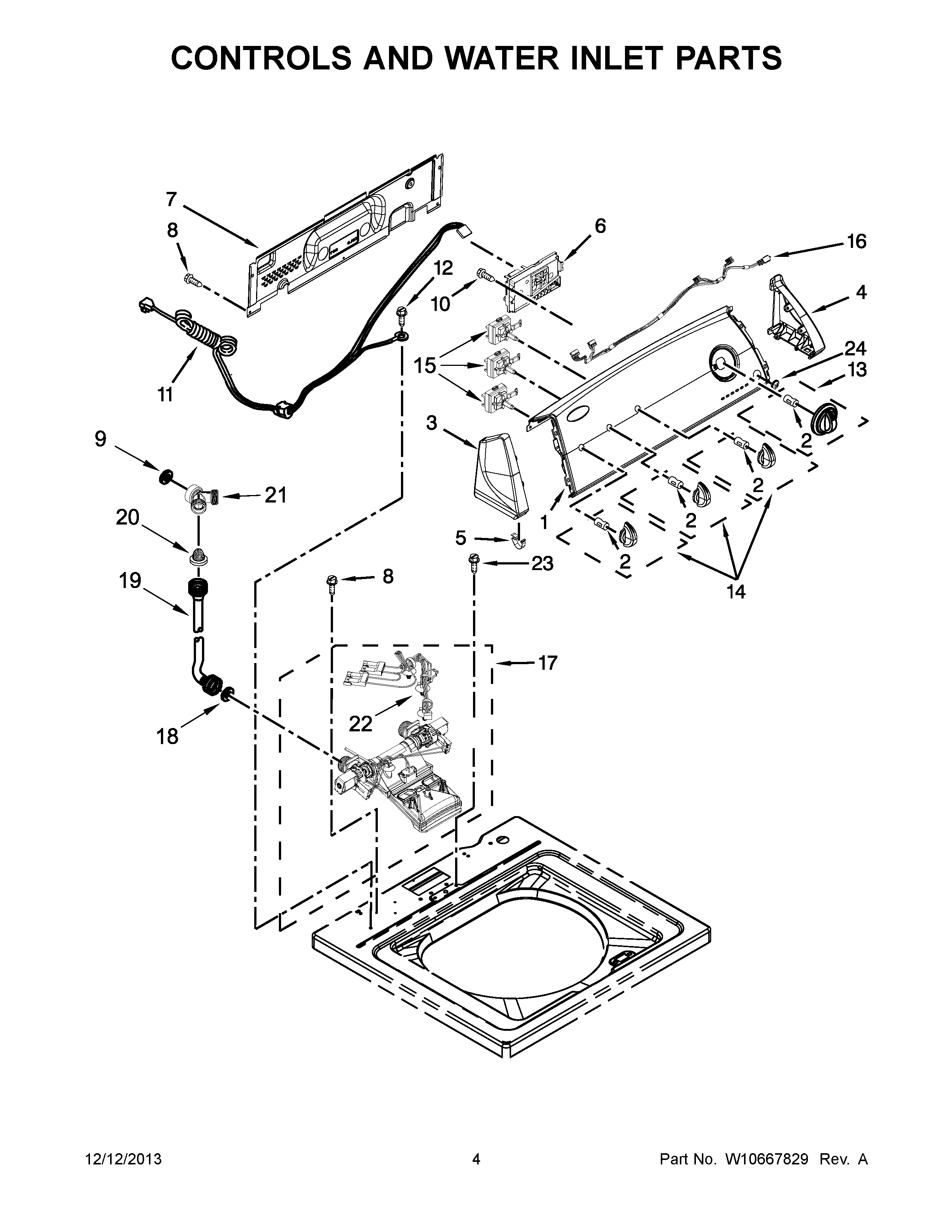

4GWTW4800YQ2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10476822 Whirlpool Adapter
NIWPW10476820 Whirlpool Adapter
NI10A CORD LOCK
NICABINET (NOT A SERVICEABLE PART)
NIWPW10475423 Whirlpool Adapter
1WPW10365092 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W10712705 Whirlpool Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WP3357450 Whirlpool Washer Assembly
10WP90767 Whirlpool Screw
11W10422755 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285512 Whirlpool Cycle Switch
16W10291183 Whirlpool Wire Harness
17WPW10683676 Whirlpool Valve
18WP16123 Whirlpool Washer
19WP89503 Whirlpool Washer Fill Hose
20285452A Whirlpool Hose Seal and Screen
21WPW10269488 Whirlpool Connector
22W10876654 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WPW10251309 Whirlpool Push Button
