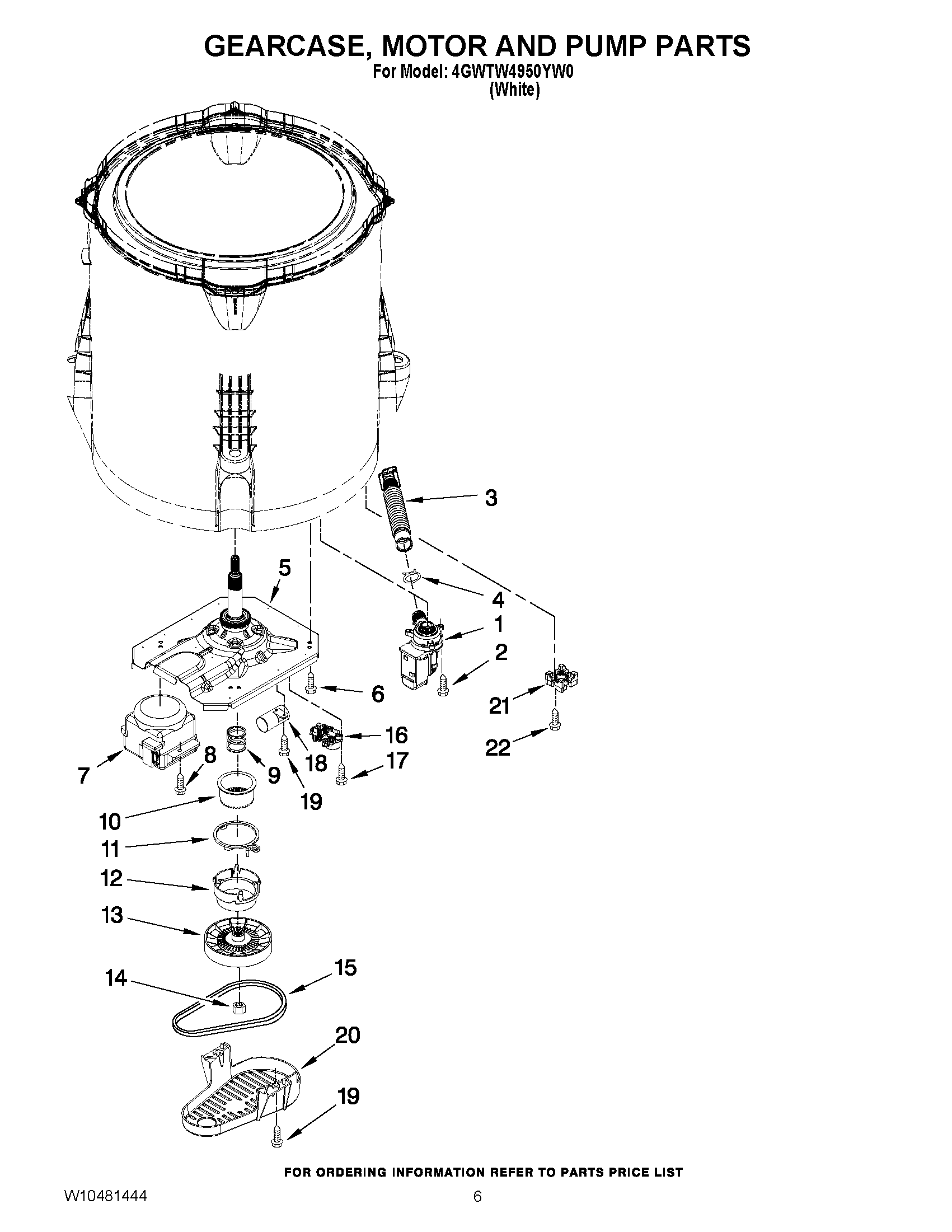

4GWTW4950YW0 04 – GEARCASE, MOTOR AND PUMP PARTS

4GWTW4950YW0 04 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

4GWTW4950YW0 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10297344 Whirlpool Water Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5W11132267 Whirlpool Transmission
6WPW10249633 Whirlpool Screw
7W10836351 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9SPRING, SPLUTCH
10W10721967 Whirlpool Washer Cam Kit
11CAM RING, SPLUTCH
12CAM, SPLUTCH
14W10759923 Whirlpool Washer Pulley Nut
15WPW10006384 Whirlpool Washer Drive Belt
16W11336577 Whirlpool Actuator
17W11596033 Whirlpool Microwave Screw
18W10804667 Whirlpool Capacitor
19W11573574 Whirlpool Screw
20WPW10427633 Whirlpool Belt Shield
21COUNTER WEIGHT
