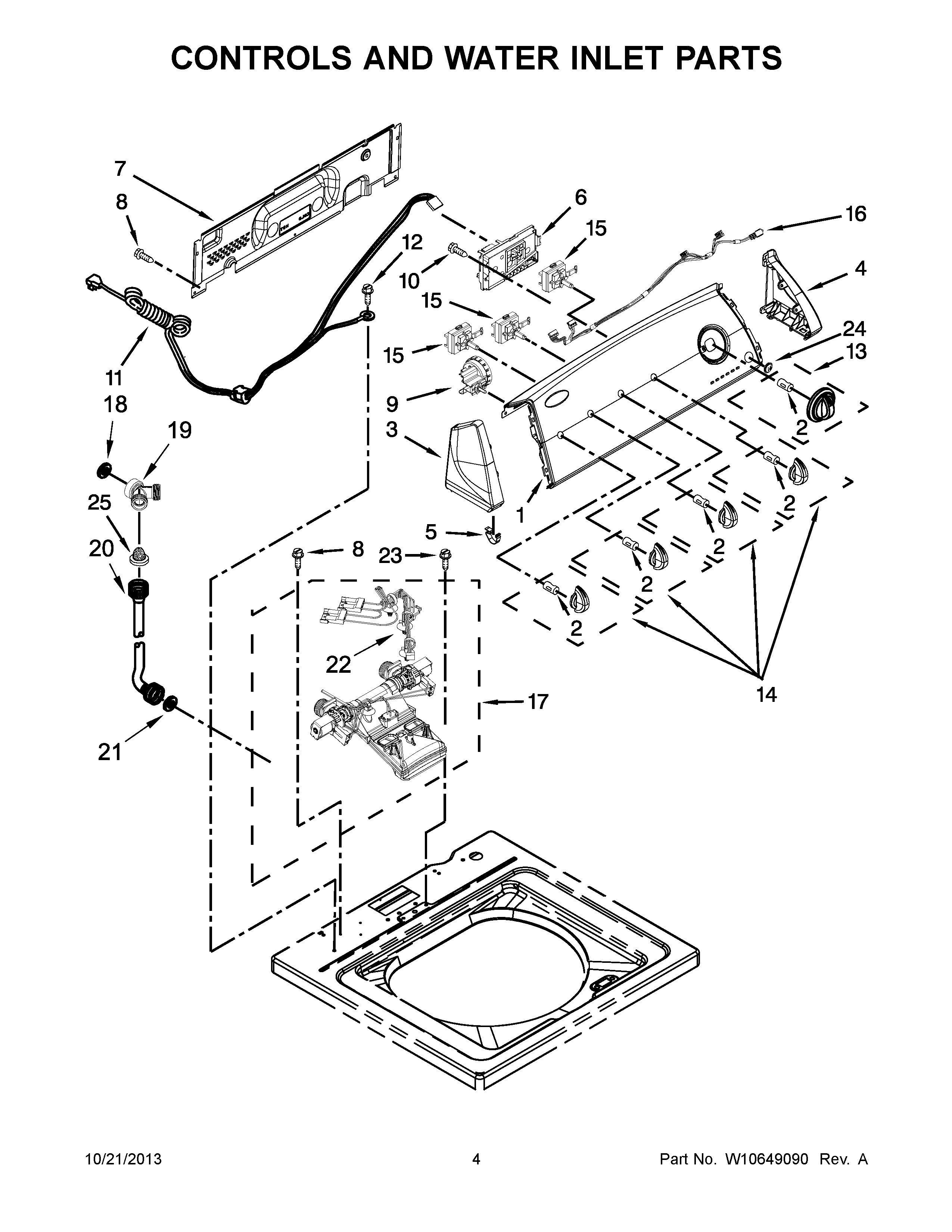

4GWTW4950YW2 03 – CONTROLS AND WATER INLET PARTS

4GWTW4950YW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4GWTW4950YW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NIWPW10476822 Whirlpool Adapter
NIWPW10476820 Whirlpool Adapter
NI10A CORD LOCK
NICABINET (NOT A SERVICEABLE PART)
NIWPW10475423 Whirlpool Adapter
1WPW10365099 Whirlpool Console
2WP8536939 Whirlpool Spring Clip
3WP8565957 Whirlpool Endcap Assembly
4WP8565954 Whirlpool Endcap
5WP8312709 Whirlpool Endcap Clip
6W11086973-includeCORE Whirlpool W11086973 Washer Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285512 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10422755 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13TIMER KNOB ASSEMBLY
14Knob, Control (3)
15WPW10285511 Whirlpool Cycle Switch
16WPW10291176 Whirlpool Wire Harness
17WPW10683676 Whirlpool Valve
18WP3357450 Whirlpool Washer Assembly
19WPW10269488 Whirlpool Connector
20WP89503 Whirlpool Washer Fill Hose
21WP16123 Whirlpool Washer
22W10876654 Whirlpool Wire Harness
23WP8281163 Whirlpool Refrigerator Screw
24WPW10251309 Whirlpool Push Button
25285452A Whirlpool Hose Seal and Screen
