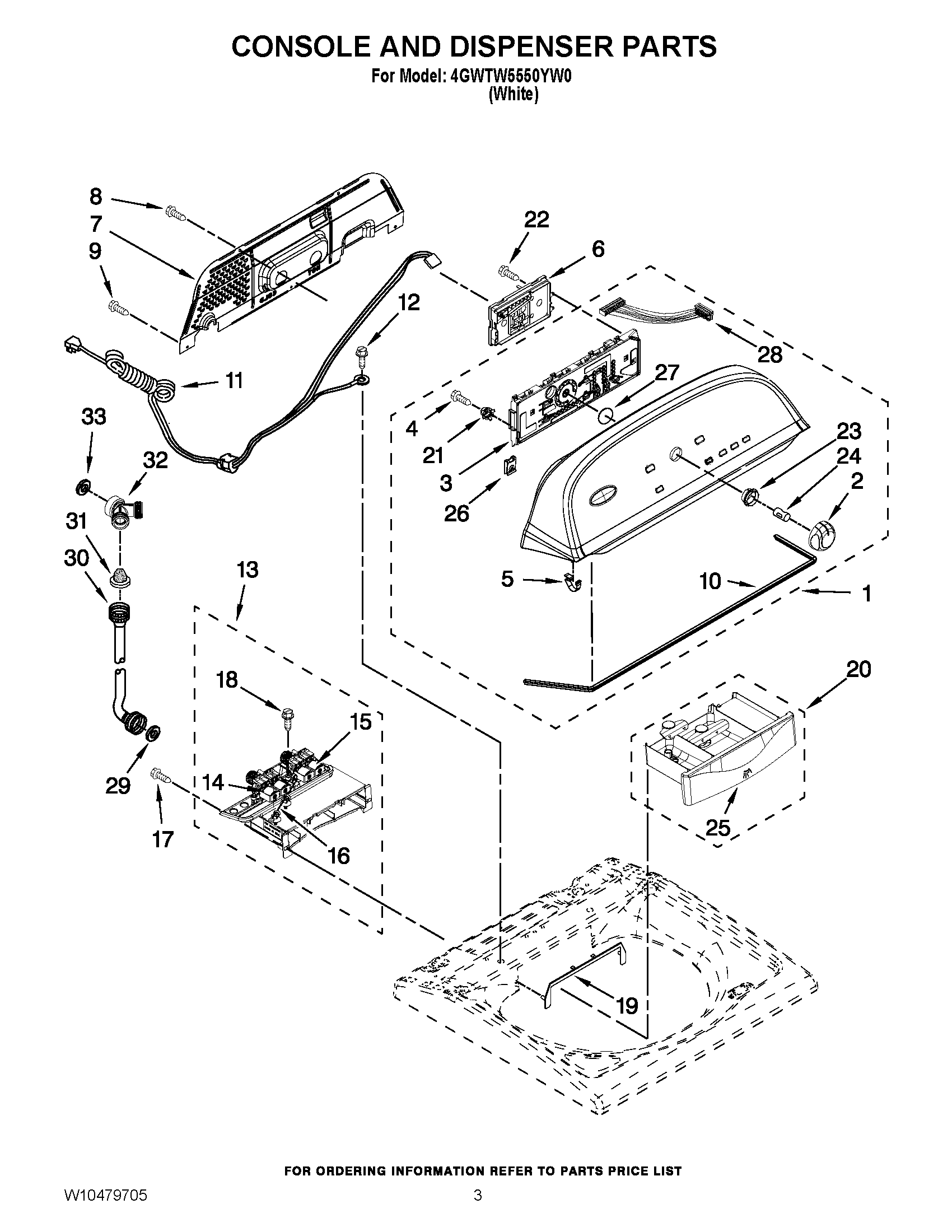

4GWTW5550YW0 02 – CONSOLE AND DISPENSER PARTS

4GWTW5550YW0 02 – CONSOLE AND DISPENSER PARTS

Written by

in

4GWTW5550YW0 02 – CONSOLE AND DISPENSER PARTS

Products

PositionProduct
1W10469858 Whirlpool Console
2WPW10251392 Whirlpool Knob
3WPW10362632-includeCORE Whirlpool WPW10362632 Washer Electronic Control Board + Core
4W10853898 Whirlpool Screw
5WP8312709 Whirlpool Endcap Clip
6W11088078 Whirlpool Electronic Control Board + Core
7W10420984 Whirlpool Rear Panel
8WP488729 Whirlpool Refrigerator Door Screw
9WP489069 Whirlpool Compactor Screw
10W10280079 Whirlpool Seal
11W10453573 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13DISPENSER, HOUSING ASSEMBLY
14WPW10240976 Whirlpool Valve
15WPW10240975 Whirlpool Valve
16HARNESS, VALVE
17W11700520 Whirlpool Screw
18WPW10109200 Whirlpool Screw
19BEZEL, DISPENSER
20WPW10658443 Whirlpool Drawer
21W10274524 Whirlpool Grommet
22WP9740848 Whirlpool Dishwasher Screw
23W10325119 Whirlpool Spacer
24WP8536939 Whirlpool Spring Clip
25WPW10287476 Whirlpool Handle
26W11213336 Whirlpool Nut
27W10323092 Whirlpool Seal
28W10285493 Whirlpool Wire Harness
29WP16123 Whirlpool Washer
30WP89503 Whirlpool Washer Fill Hose
31285452A Whirlpool Hose Seal and Screen
32WPW10269488 Whirlpool Connector
33WP3357450 Whirlpool Washer Assembly
