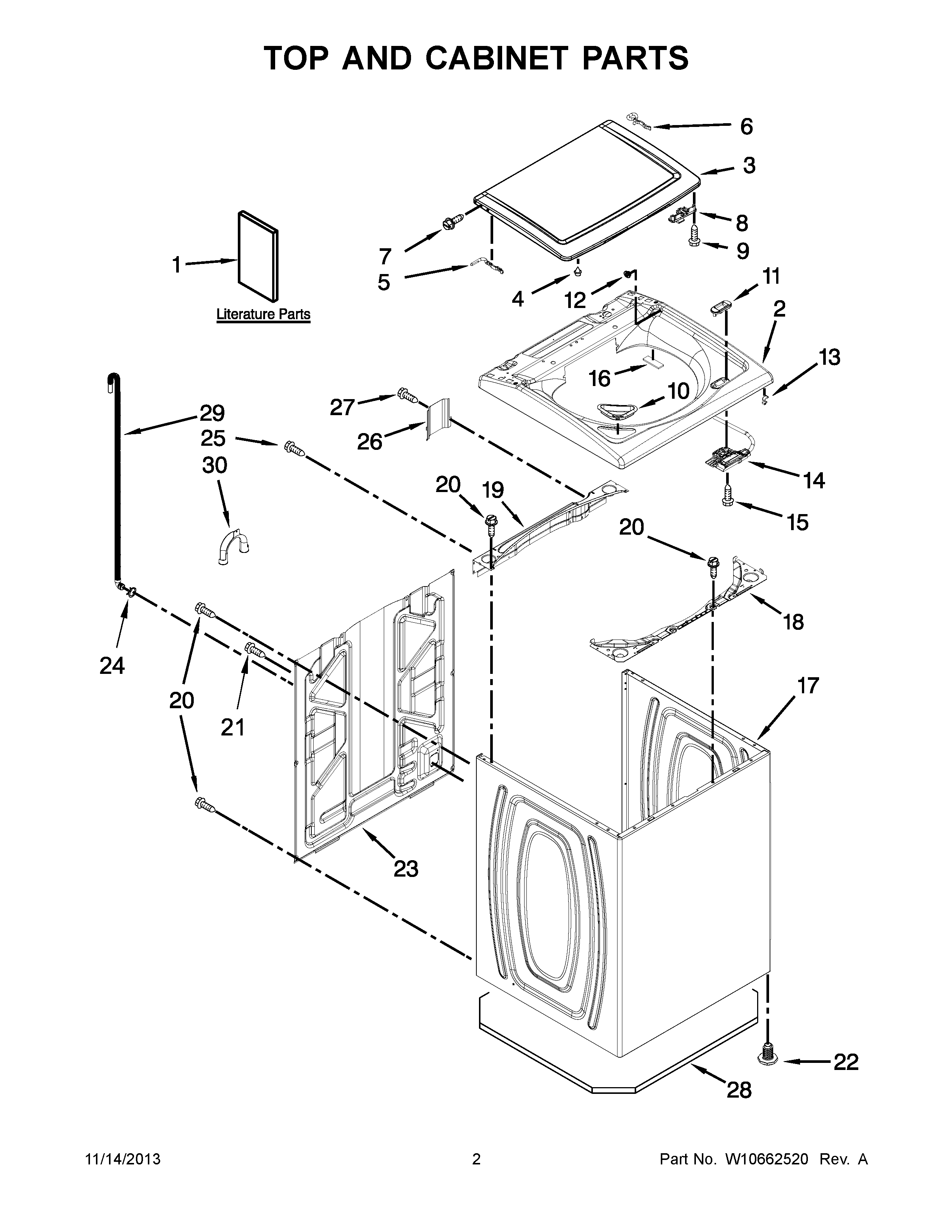

4GWTW5550YW2 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	WPW10246376 Whirlpool Top Assembly
3	WPW10270529 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	W10295775 Whirlpool Hinge
6	W10569655 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	W10874836 Whirlpool Endcap Assembly Left Hand and Right
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	W10293230 Whirlpool Bearing
12	BEARING, LID HINGE (LEFT)
13	WP90016 Whirlpool Clip
14	WPW10294102 Whirlpool Latch
15	WP8281163 Whirlpool Refrigerator Screw
16	W10684258 Whirlpool Pad
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	WP489069 Whirlpool Compactor Screw
21	WP9740848 Whirlpool Dishwasher Screw
22	WPW10687506 Whirlpool Washer Leveling Leg
23	W11486091 Whirlpool Rear Panel
24	WP356138 Whirlpool Hose Clamp
25	WP489128 Whirlpool Refrigerator Screw
26	W10676061 Whirlpool Cover Assembly
27	W10846509 Whirlpool Screw
28	W11096159 Whirlpool Sound ABS Assembly
29	W11244231 Whirlpool Hose
30	WPW10280024 Whirlpool Retainer
