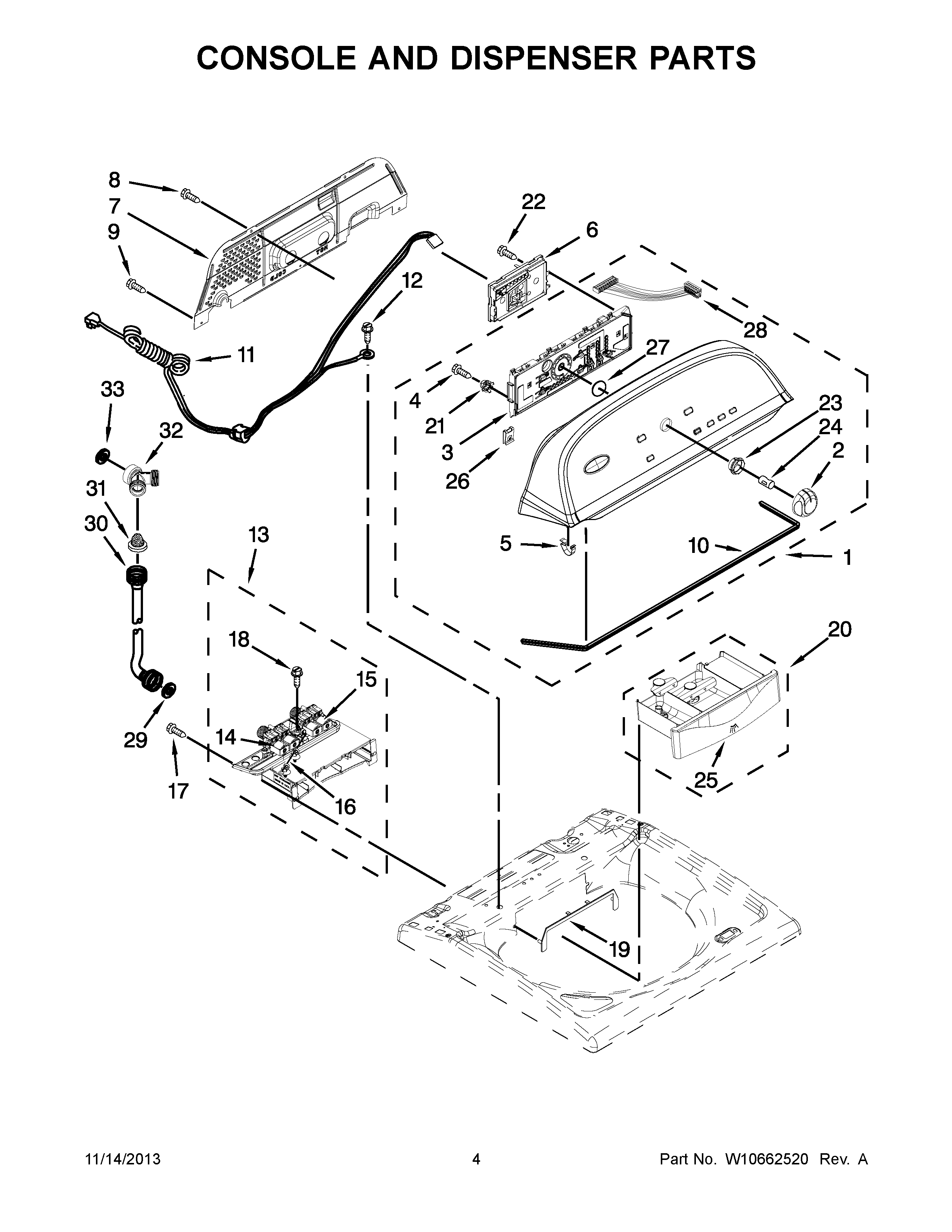

4GWTW5550YW2 03 – CONSOLE AND DISPENSER PARTS

Products

Position	Product
NI	WPW10475423 Whirlpool Adapter
NI	WPW10476822 Whirlpool Adapter
NI	WPW10476820 Whirlpool Adapter
NI	10A CORD LOCK
NI	CABINET (NOT A SERVICEABLE PART)
1	W10469858 Whirlpool Console
2	WPW10251392 Whirlpool Knob
3	WPW10362632-includeCORE Whirlpool WPW10362632 Washer Electronic Control Board + Core
4	W10853898 Whirlpool Screw
5	WP8312709 Whirlpool Endcap Clip
6	W10730255 Whirlpool Electronic Control Board + Core
7	W10420984 Whirlpool Rear Panel
8	WP488729 Whirlpool Refrigerator Door Screw
9	WP489069 Whirlpool Compactor Screw
10	W10280079 Whirlpool Seal
11	W10453573 Whirlpool Power Cord
12	W10846509 Whirlpool Screw
13	HOUSING ASSEMBLY – DISPENSER
14	WPW10240976 Whirlpool Valve
15	WPW10240975 Whirlpool Valve
16	HARNESS, VALVE
17	W11700520 Whirlpool Screw
18	WPW10109200 Whirlpool Screw
19	BEZEL, DISPENSER
20	WPW10658443 Whirlpool Drawer
21	W10274524 Whirlpool Grommet
22	WP9740848 Whirlpool Dishwasher Screw
23	W10325119 Whirlpool Spacer
24	WP8536939 Whirlpool Spring Clip
25	WPW10287476 Whirlpool Handle
26	W11213336 Whirlpool Nut
27	W10323092 Whirlpool Seal
28	W10285493 Whirlpool Wire Harness
29	WP16123 Whirlpool Washer
30	WP89503 Whirlpool Washer Fill Hose
31	285452A Whirlpool Hose Seal and Screen
32	WPW10269488 Whirlpool Connector
33	WP3357450 Whirlpool Washer Assembly
