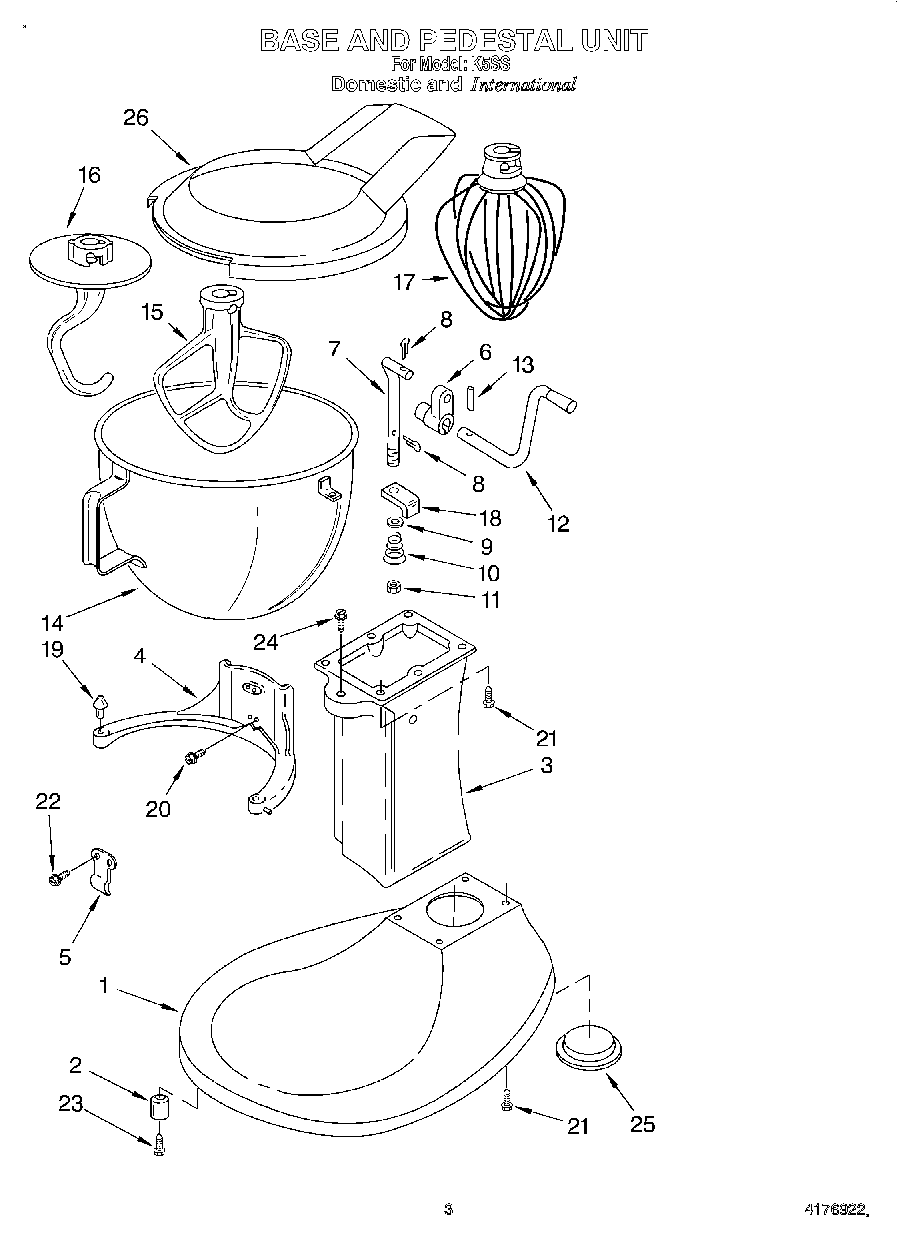

4K5SS 03 – BASE AND PEDESTAL, LITERATURE

4K5SS 03 – BASE AND PEDESTAL, LITERATURE

Written by

in

4K5SS 03 – BASE AND PEDESTAL, LITERATURE

Products

PositionProduct
Literature Parts (Use And Care Guide)
WPL LIT4176922
WPL LIT9701130
1BASE & FOOT SUPPORT-METALLIC CHROME
1BASE & FOOT SUPPORT-MAJESTIC YELLOW
1W11233906 Whirlpool Base
1BASE & FOOT SUPPORT-EMPIRE RED
1BASE & FOOT SUPPORT-COBALT BLUE
1COLUMN – IMPERIAL GREY
1BASE & FOOT SUPPORT-IMPERIAL BLK
1BASE & FOOT SUPPORT-GLOSS BLK
1BASE & FOOT SUPPORT-EMPIRE GREEN
28211628 Whirlpool Foot Assembly
3COLUMN ASSY-EMPIRE RED
3COLUMN ASSY-GLOSS BLK
3COLUMN ASSY-EMPIRE GREEN
3COLUMN ASSY-IMPERIAL GRAY
3COLUMN ASSY-IMPERIAL BLK
3COLUMN ASSY-MAJESTIC YELLOW
3COLUMN ASSY-COBALT BLUE
3COLUMN ASSY-WHITE (INTERNATIONAL)
3COLUMN ASSY-METALLIC CHROME
3COLUMN ASSY-WHITE
4BOWL SUPPORT-IMPERIAL BLK
4BOWL SUPPORT & PINS (EMPIRE RED)
4BOWL SUPPORT & PINS (MAJESTIC YELLOW)
4BOWL SUPPORT-Black Gloss
4BOWL SUPPORT-METALLIC CHROME
4WP3179304 Whirlpool Support
43179300 Whirlpool Support Assembly
4BOWL SUPPORT-Empire Green
4BOWL SUPPORT-COBALT BLUE
5WP3182857 Whirlpool Spring
6WP241764 Whirlpool Mixer Lift Arm Bowl
7W10598834 Whirlpool Lift Rod
8WP9704608 Whirlpool Cotter Pin
9W11708396 Whirlpool Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W10598843 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
14WPW10714130 Whirlpool Mixer Bowl
15W10807813 Whirlpool Mixer Beater
16WPW10674621 Whirlpool Dough Hook Assembly
17WPW10731415 Whirlpool Stand Mixer Wire Whip
18240169 Whirlpool Bracket
19WP240185 Whirlpool Bowl Retaining Pin
20W10861883 Whirlpool Screw
21WP4162403 Whirlpool Screw
22WP4159193 Whirlpool Screw
23WPL 4159349
243182904 Whirlpool Screw
25WPL 4176184
26W11312468 Whirlpool Pour Shelf
