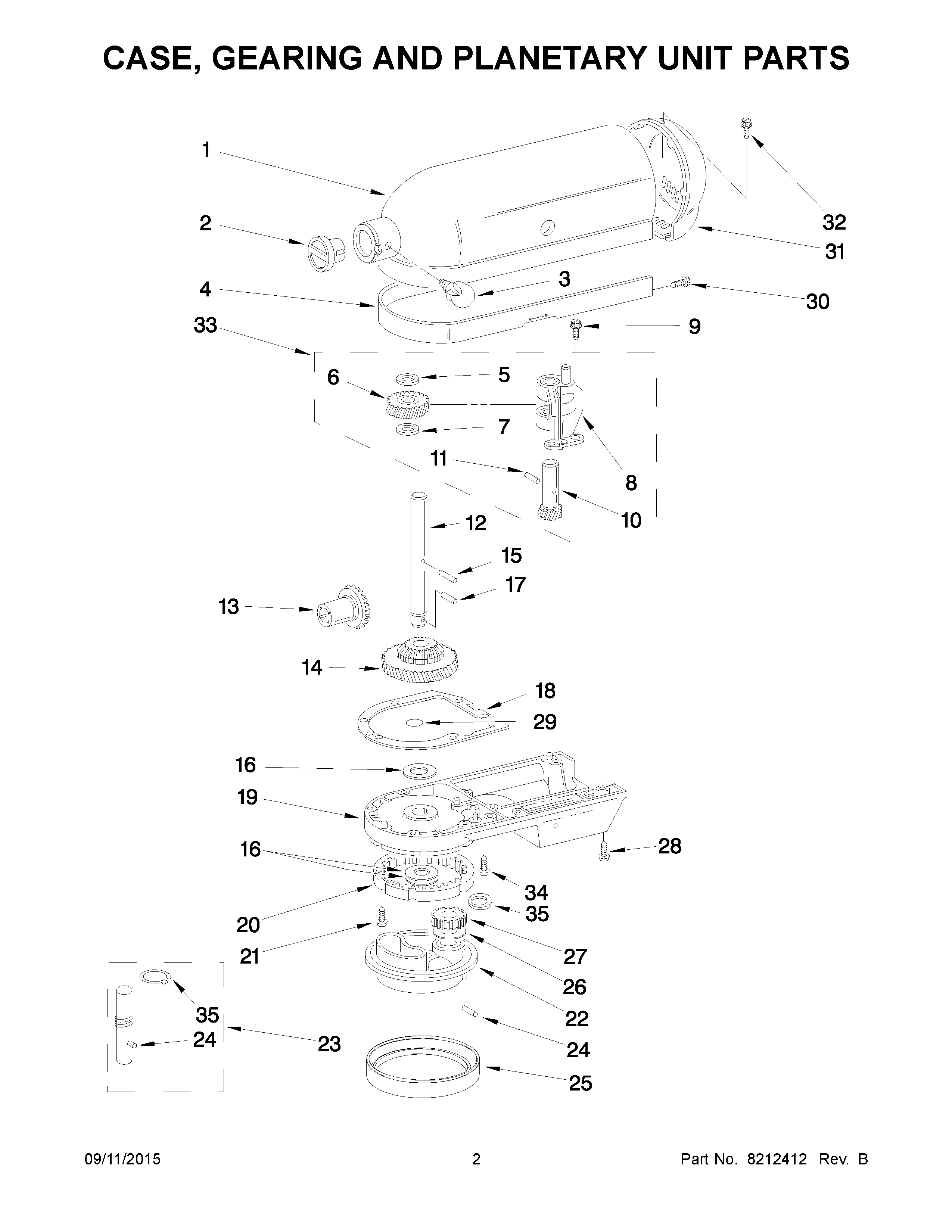

4K5SSWH1 02 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2Cap, Attachment Hub
3WP9709194 Whirlpool Black Thumb Screw
6WPW10112253 Whirlpool Gear Assembly
7WPW10323373 Whirlpool Washer
8W11082541 Whirlpool Bearing
9W11097298 Whirlpool Dishwasher Screw
10Shaft & Pinion
11WP9705444 Whirlpool Pin Groove
12WP240026 Whirlpool Control Shaft
13W11192794 Whirlpool HUB Gear
15Pin (Vertical Center Shaft)
16WPW10323378 Whirlpool Washer
17WP9705443 Whirlpool Pin Groove
18WP4162324 Whirlpool Case Gasket
20W11340106 Whirlpool Gear Assembly
21Screw, Special (5)
23WP243368 Whirlpool Agitator Shaft
24W11664709 Whirlpool Groove Pin
25WP240285 Whirlpool Drip Ring
26WP9706090 Whirlpool Washer
27W11133645 Whirlpool Pinion Gear
28WP3400025 Whirlpool Screw
29O RING
30WP313808 Whirlpool Screw
31CABINET (NOT A SERVICEABLE PART)
32WP241877 Whirlpool Screw
33GEAR, WORM AND BRACKET
34WP9708653 Whirlpool Screw
35WP9703438 Whirlpool Snap Retaining Ring
