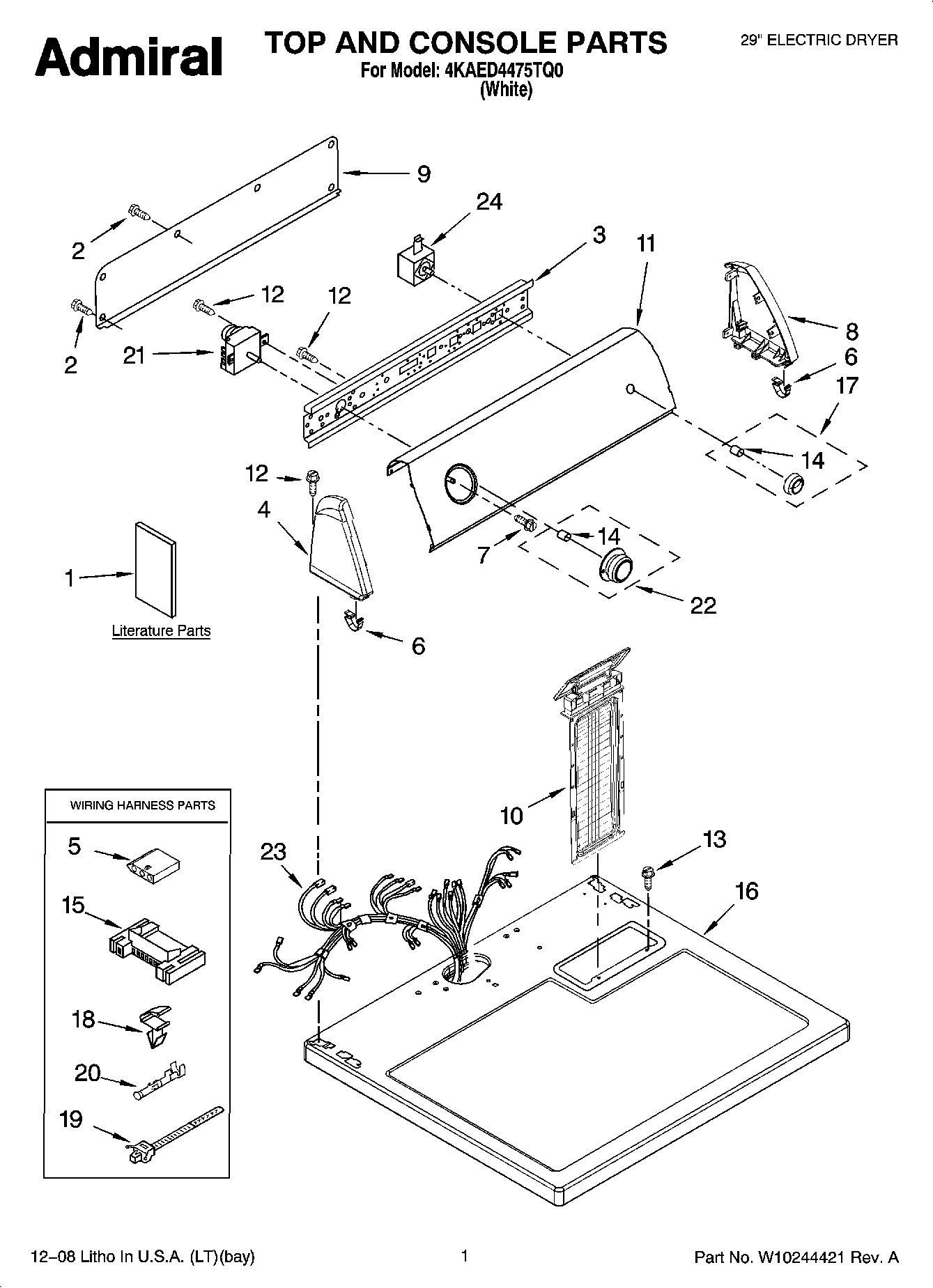

4KAED4475TQ0 01 – TOP AND CONSOLE PARTS

4KAED4475TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

4KAED4475TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10131621
1MAY W10167647
1MAY W10131613
1MAY W10131614
1MAY W10131617
1MAY W10131618
1MAY W10131622
2Screw
3Bracket-Control
4Cap, End (L.H.) (White)
5MAY 3936144
6MAY 8312709
7MAY 8533951
8Cap, End (R.H.) (White)
9MAY 8274261
10LINT SCREEN WHITE
11MAY W10115454
12MAY 8533971
13SCREW
14CLIP, SPRING
15CONNECTOR (MOTOR)
16MAY 8559800
17MAY W10110065
18CLIP, HARNESS
19Tie, Cable
20Terminal
21MAY 8299781
22Timer Knob Assembly (White)
23MAY W10111060
24MAY 3977456
