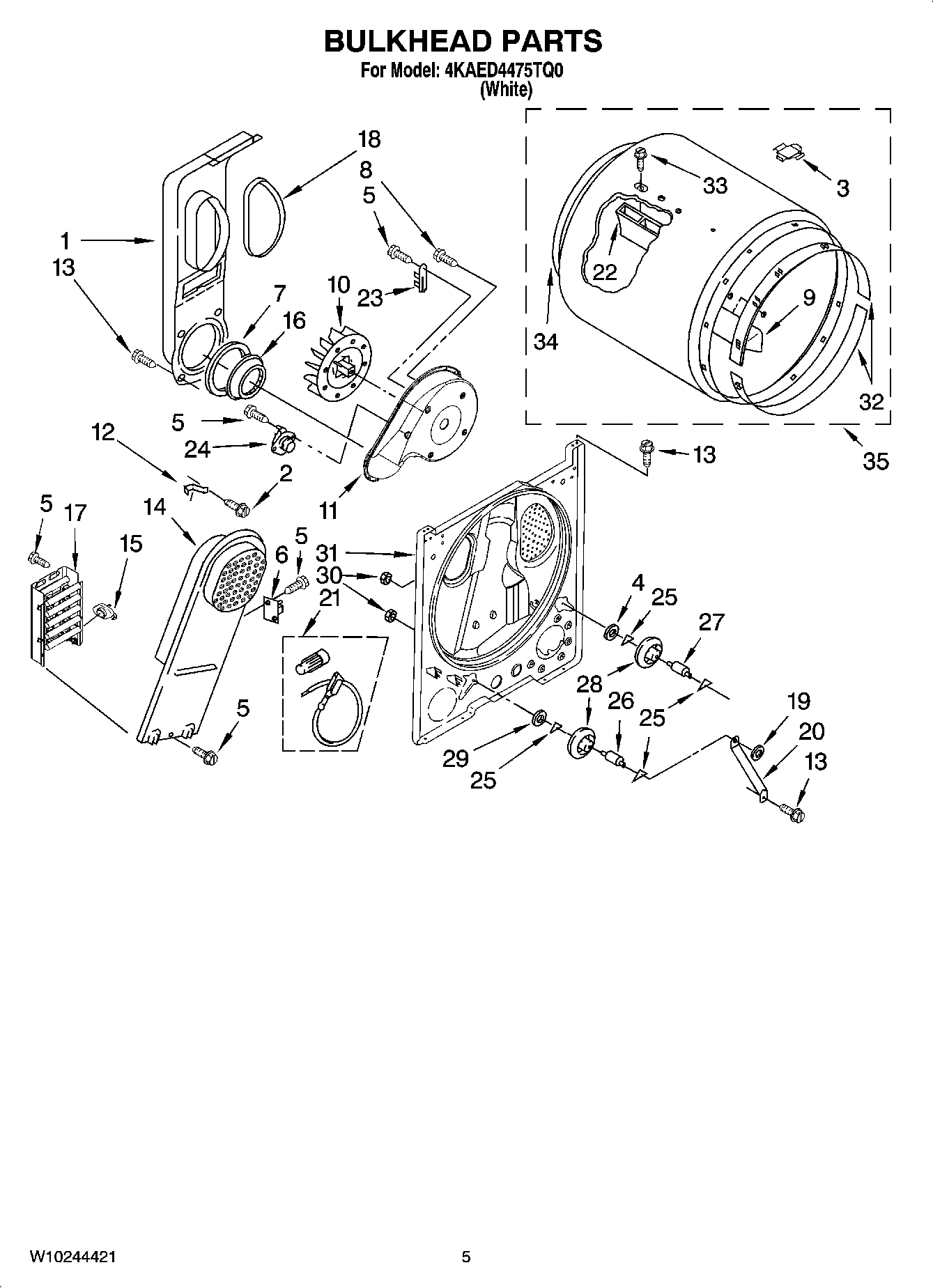

4KAED4475TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIDry Rack
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
1MAY 348368
2Screw
3Plug, Drum Hole
4WASHER
5SCREW,8-18 X 3/8
6MAY 3977393
7MAY 347139
8SCREW
9BAFFLE, DRUM (SHORT)
10Wheel, Blower
11MAY 8577230
12MAY 8066155
13SCREW
14MAY 8541818
15MAY 3977767
16MAY 696302
17MAY 3403585
18MAY 339956
19NUT, PUSH ON
20MAY 3976434
21BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
22BAFFLE, DRUM (LONG)
23Fuse, Thermal (91 C)
24THERMOSTAT, INTERNAL BIAS
25WASHER, TRI RING
26MAY 3399506
27MAY 3399507
28MAY 3397590
29WASHER
30Nut, 3/8-16
31MAY 3403491
32Bearing, Ring
33MAY W10219342
34MAY 3406130
35MAY 695587
