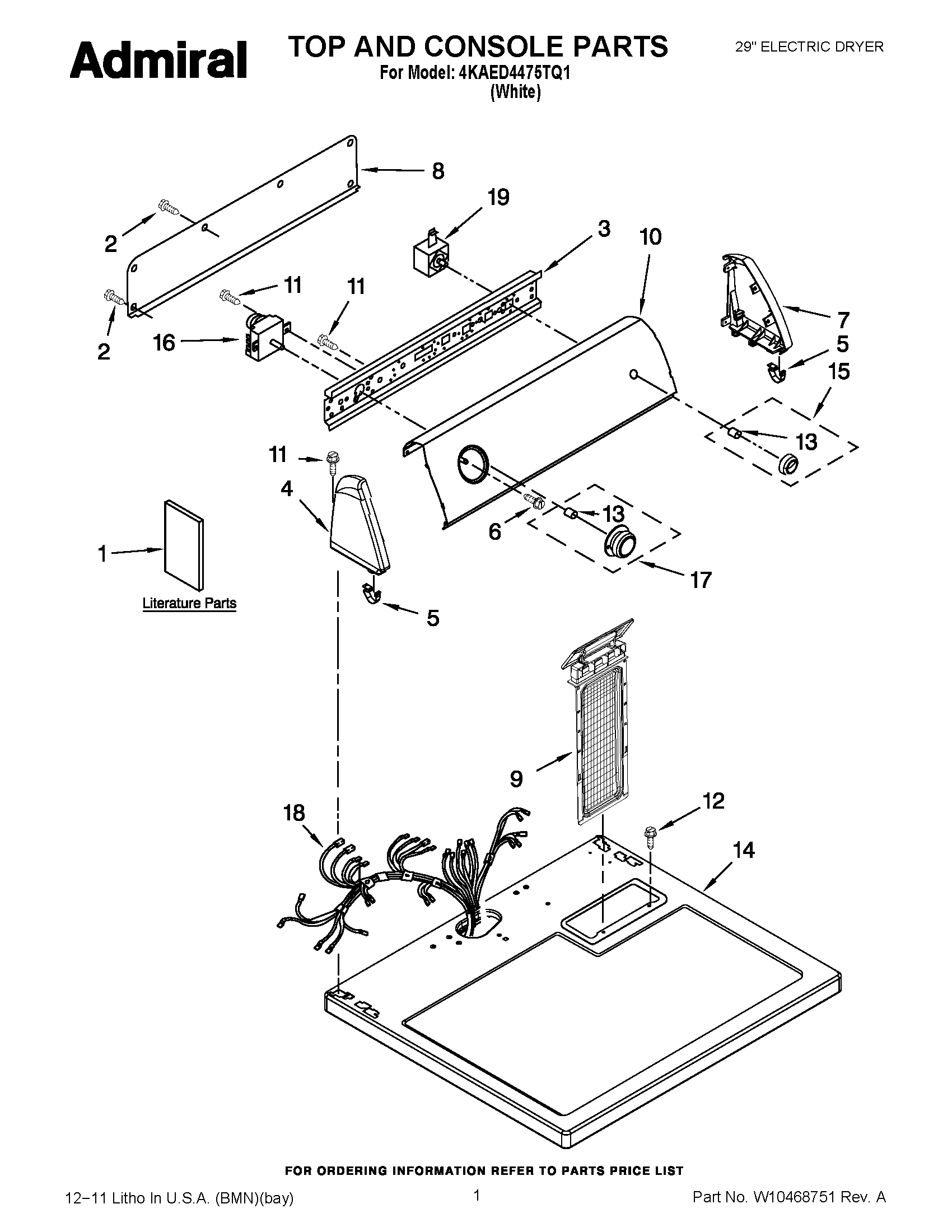

4KAED4475TQ1 01 – TOP AND CONSOLE PARTS

4KAED4475TQ1 01 – TOP AND CONSOLE PARTS

Written by

in

4KAED4475TQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10131613
1MAY W10131622
1MAY W10131614
1MAY W10131621
1MAY W10131618
1MAY W10131617
1MAY W10396178
2Screw
3Bracket-Control
4Cap, End (L.H.) (White)
5MAY 8312709
6MAY 8533951
7Cap, End (R.H.) (White)
8MAY 8274261
9LINT SCREEN WHITE
10MAY W10115454
11MAY 8533971
12SCREW
13CLIP, SPRING
14MAY 8559800
15MAY W10110065
16MAY 8299781
17Timer Knob Assembly (White)
18MAY W10386309
19MAY 3977456
