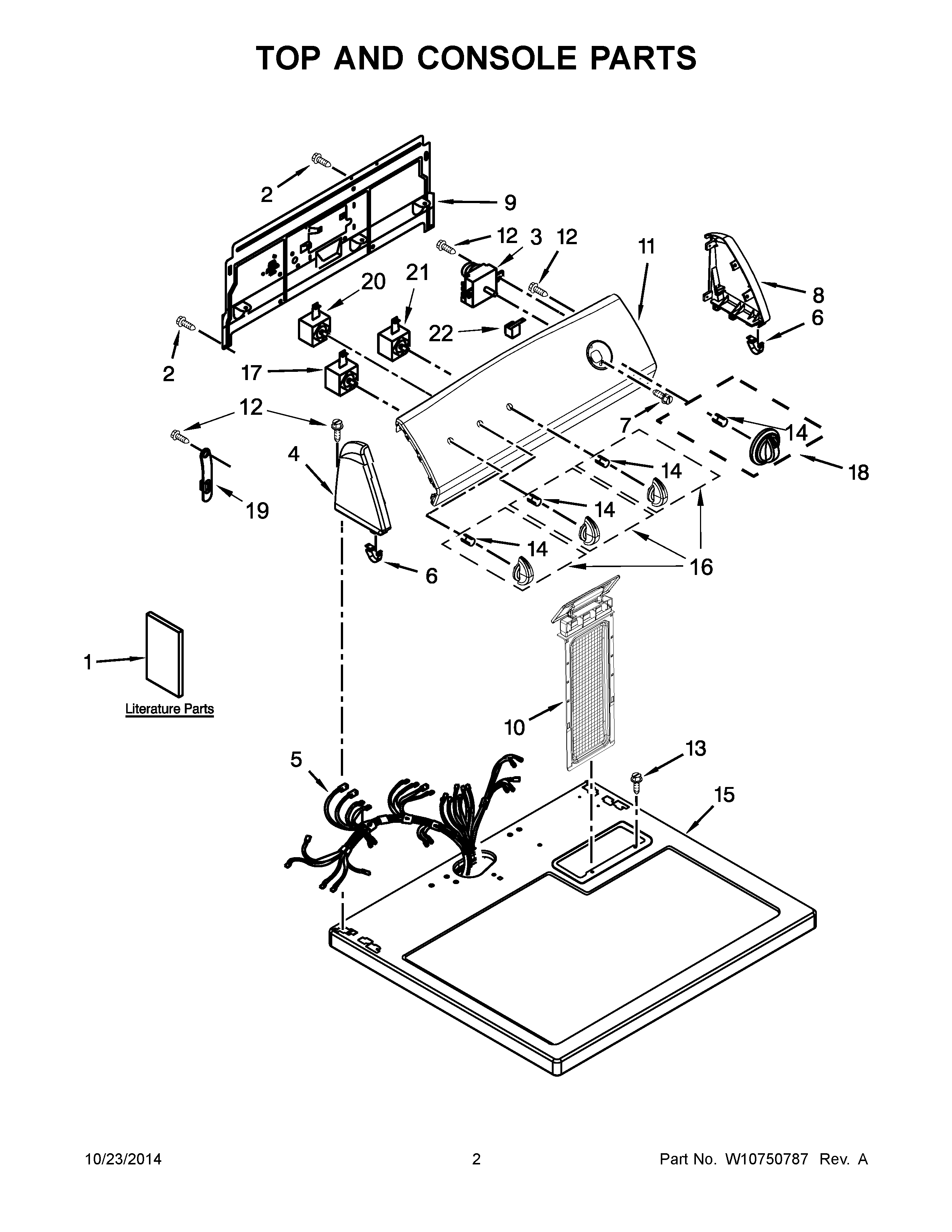

4KAED4900BW1 02 – TOP AND CONSOLE PARTS

4KAED4900BW1 02 – TOP AND CONSOLE PARTS

Written by

in

4KAED4900BW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10636932
1AMAY W10629448
1BMAY W10660262
2Screw
3MAY W10112668
4MAY W10251358
5MAY W10640695
6MAY 8312709
7MAY 3348629
8MAY W10251355
9MAY W10121161
10LINT SCREEN (WHITE)
11MAY W10598020
12SCREW,8-18 X 3/8
13SCREW
14CLIP, SPRING
15TOP
16MAY W10327523
17TIMER, 60 HZ.
18MAY W10327522
19Strap, Console
20MAY 3405156
21Switch, Temperature
22MAY 3952439
