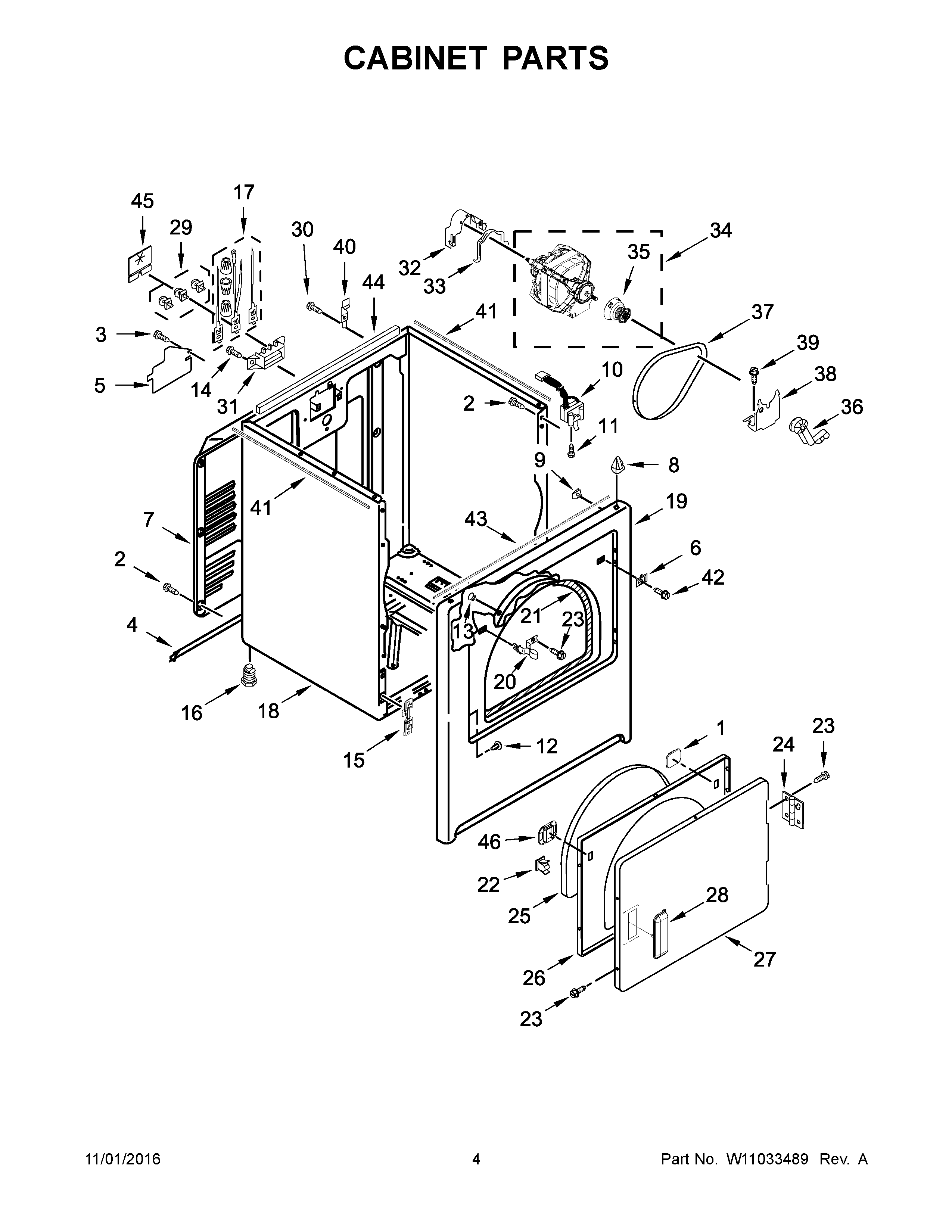

4KAED4900FW0 03 – CABINET PARTS

Products

Position	Product
1	COVER, DOOR CATCH
2	SCREW
3	Screw
4	SEAL, SPILL GUARD
5	COVER, TERMINAL BLOCK
6	PLUG, STRIKE
7	PANEL. REAR
8	MAY 8066092
9	Clip, Ground
10	MAY W10237959
11	SCREW
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW, 10-16 X 1/2
15	CLIP, FRONT PANEL
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	PANEL, FRONT (WHITE)
20	Strike, Door
21	ASSEMBLY, SEAL AND BEARING
22	MAY W10610880
23	MAY 342055
24	ASSEMBLY, HINGE AND PIN
25	SEAL, DOOR
26	DOOR, INNER
27	DOOR, FRONT (WHITE)
28	HANDLE, DOOR (WHITE)
29	MAY 279393
30	MAY 8533974
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	ASSEMBLY, MOTOR (50 HZ)
35	PULLEY
36	IDLER ASSEMBLY
37	MAY W10131364
38	MAY 348780
39	BOLT
40	Hinge, Top
42	SCREW
43	SEAL, SPILL GUARD
44	SEAL, FOAM
45	PAD, POWER CORD
46	BEZEL, DOOR CATCH
