4KAED5000FW0 02 – TOP AND CONSOLE PARTS

4KAED5000FW0 02 – TOP AND CONSOLE PARTS

Written by

in

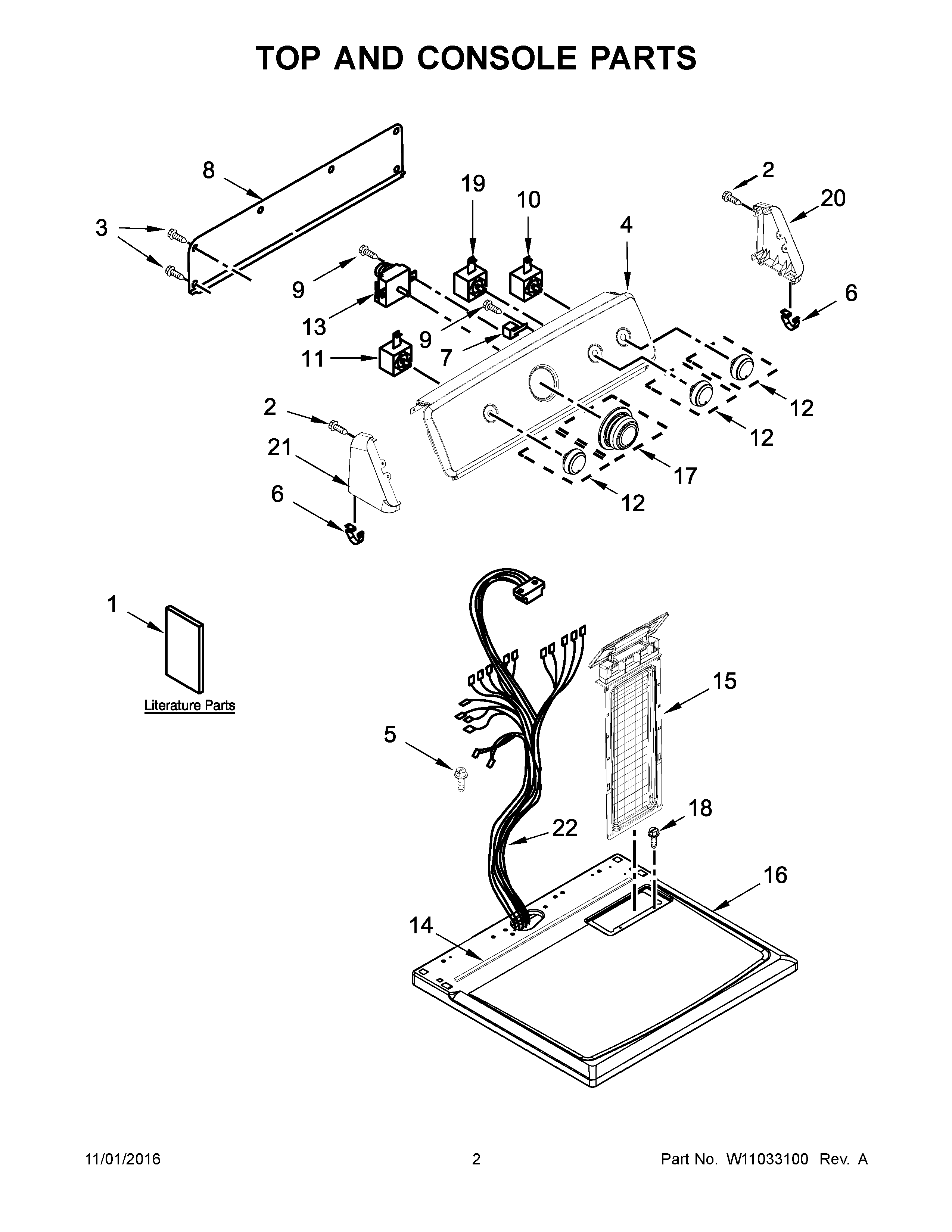

4KAED5000FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10849531
1BINSTALLATION INSTRUCTIONS
1AWIRING DIAGRAM
2MAY 8533971
3Screw
4MAY W10804427
5SCREW
6MAY 8312709
7MAY 3952439
8MAY W10103406
9MAY 3348629
10SWITCH, PUSH TO START
11Switch-Rotary
12MAY W10562155
13TIMER, 60 HZ.
14MAY W10316616
15MAY W10717210
16MAY 8559800
17MAY W10558463
18SCREW
19SWITCH, ROTARY (2 POS)
20END CAP (RIGHT) (WHITE)
21END CAP (LEFT) (WHITE)
22HARNESS, WIRE
