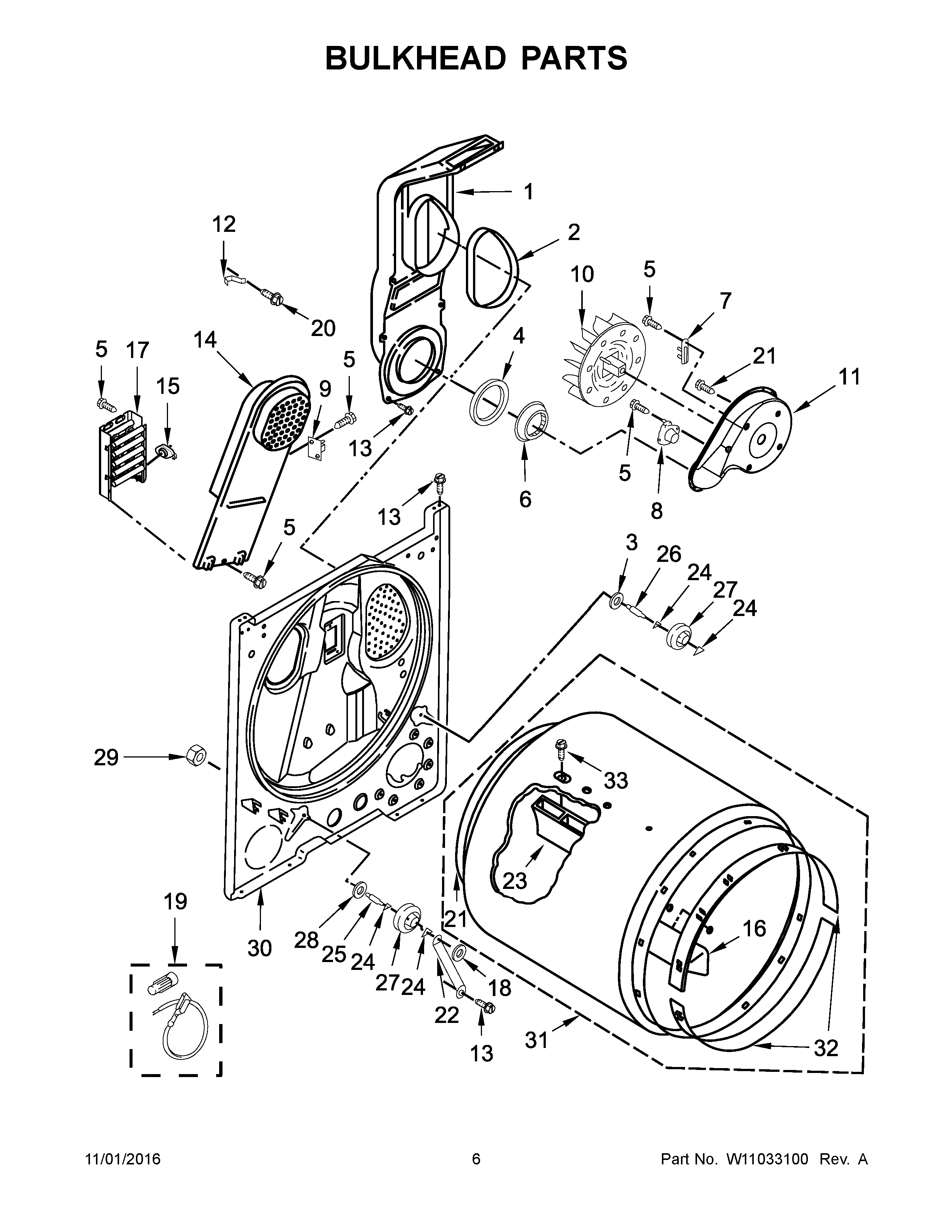

4KAED5000FW0 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	MAY 339956
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	THERMOSTAT, INTERNAL BIAS
9	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
10	Wheel, Blower
11	MAY 8577230
12	CLIP, HEATER BOX
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	BAFFLE, DRUM (SHORT)
17	ELEMENT, HEATER
18	NUT, PUSH ON
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SEAL, REAR DRUM
22	MAY 3976434
23	BAFFLE, DRUM (LONG)
24	WASHER, TRI RING
25	MAY W10359270
26	MAY W10359269
27	MAY 3397590
28	WASHER
29	MAY W10298789
30	MAY 3403410
31	ASSEMBLY, DRUM (COMPLETE)
32	Bearing, Ring
33	MAY W10219342
