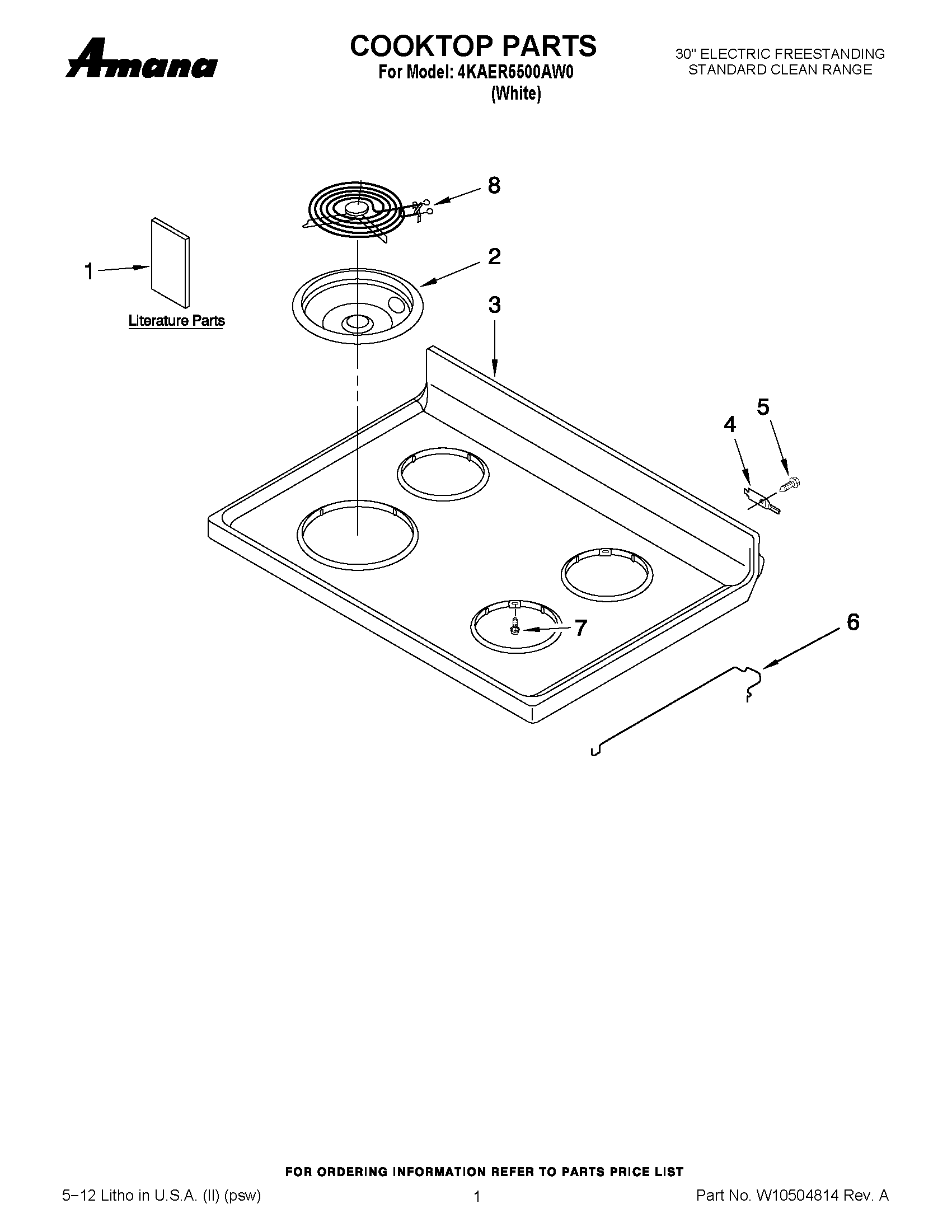

4KAER5500AW0 01 – COOKTOP PARTS

4KAER5500AW0 01 – COOKTOP PARTS

Written by

in

4KAER5500AW0 01 – COOKTOP PARTS

Products

PositionProduct
1SHEET, TECH (ARABIC)
1MAY W10394782
1MAY W10394781
1MAY W10464419
1MAY W10464420
1SHEET, TECH (ENGLISH)
1TIPS, SAFE COOKING (ENGLISH)
2BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6ROD, SUPPORT
7SCREW
8ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
8ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
