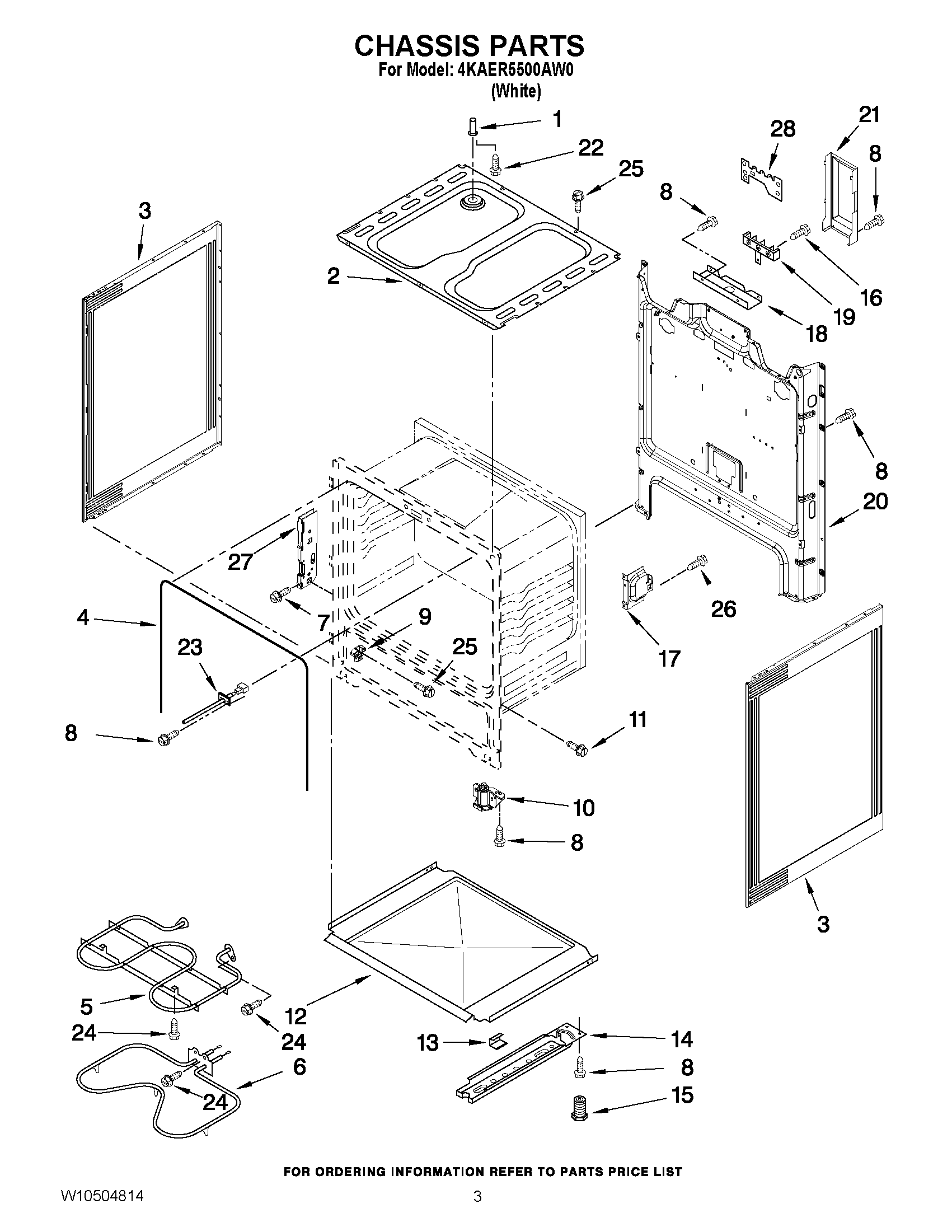

4KAER5500AW0 03 – CHASSIS PARTSadmin2025-04-26T09:15:20+00:004KAER5500AW0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, WRAP |
| NI | INSULATION, BACK |
| NI | KIT, BARE WIRE ADAPTER BLOCK |
| 1 | MAY 3169143 |
| 2 | BOX, BURNER |
| 3 | MAY W10322769 |
| 4 | SEAL, DOOR |
| 5 | ELEMENT, BROIL |
| 6 | ELEMENT, BAKE |
| 7 | MAY W10031780 |
| 8 | SCREW |
| 9 | GLIDE, DRAWER |
| 10 | ASSEMBLY, FRONT FOOT |
| 11 | SCREW |
| 12 | RETAINER, INSULATION |
| 13 | CLIP, PANEL |
| 14 | ASSEMBLY, BASE RAIL (LEFT) |
| 14 | ASSEMBLY, BASE RAIL (RIGHT) |
| 15 | FOOT, LEVELING |
| 16 | SCREW |
| 17 | BRACKET, OVEN SUPPORT |
| 18 | BRACKET, SERVICE |
| 19 | WP7103P027-60 Whirlpool Nut |
| 19 | BLOCK, TERMINAL |
| 20 | BACK, MAIN |
| 21 | COVER, TERMINAL BLOCK |
| 22 | SCREW |
| 23 | SENSOR, OVEN |
| 24 | SCREW |
| 25 | SCREW |
| 26 | SCREW |
| 27 | RECEIVER, HINGE |
| 28 | MAY W10451176 |
