4KAER5500AW1 04 – CHASSIS PARTS

4KAER5500AW1 04 – CHASSIS PARTS

Written by

in

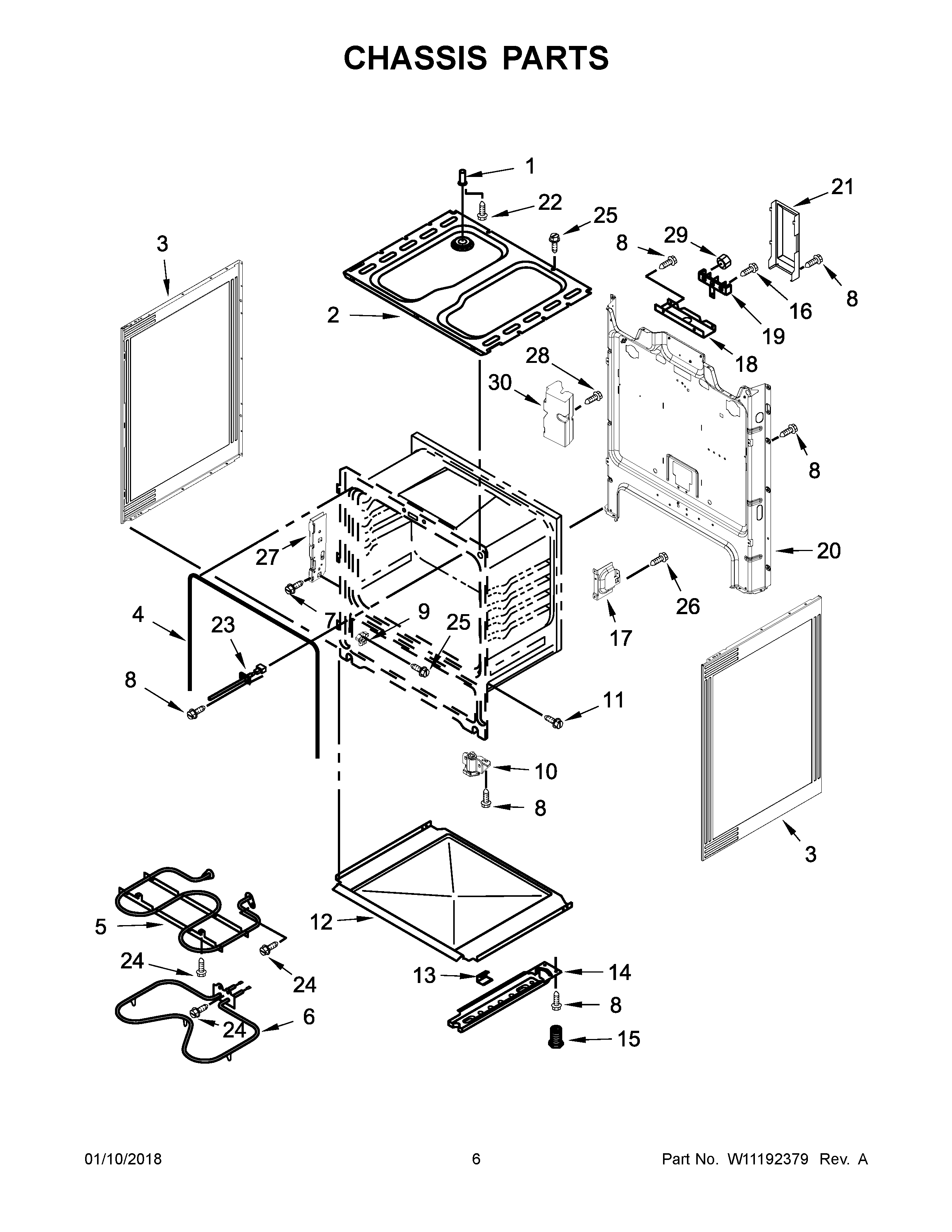

4KAER5500AW1 04 – CHASSIS PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIINSULATION, WRAP
NIINSULATION, BACK
NIKIT, BARE WIRE ADAPTER BLOCK
1MAY 3169143
2BOX, BURNER
3PANEL, SIDE (WHITE)
4SEAL, DOOR
5ELEMENT, BROIL
6ELEMENT, BAKE
7MAY W10031780
8SCREW
9GLIDE, DRAWER FRONT
10ASSEMBLY, FRONT FOOT
11SCREW
12RETAINER, INSULATION
13CLIP, PANEL
14AASSEMBLY, BASE RAIL (LEFT)
14ASSEMBLY, BASE RAIL (RIGHT)
15FOOT, LEVELING
16SCREW
17CLIP, OVEN SUPPORT
18BRACKET, SERVICE
19BLOCK, TERMINAL
20BACK, MAIN
21COVER, TERMINAL BLOCK
22SCREW
23SENSOR, OVEN
24SCREW
25SCREW
26SCREW
27RECEIVER, HINGE
28SCREW
29NUT
30COUNTERWEIGHT
