4KAER5500AW1 05 – DOOR PARTS

4KAER5500AW1 05 – DOOR PARTS

Written by

in

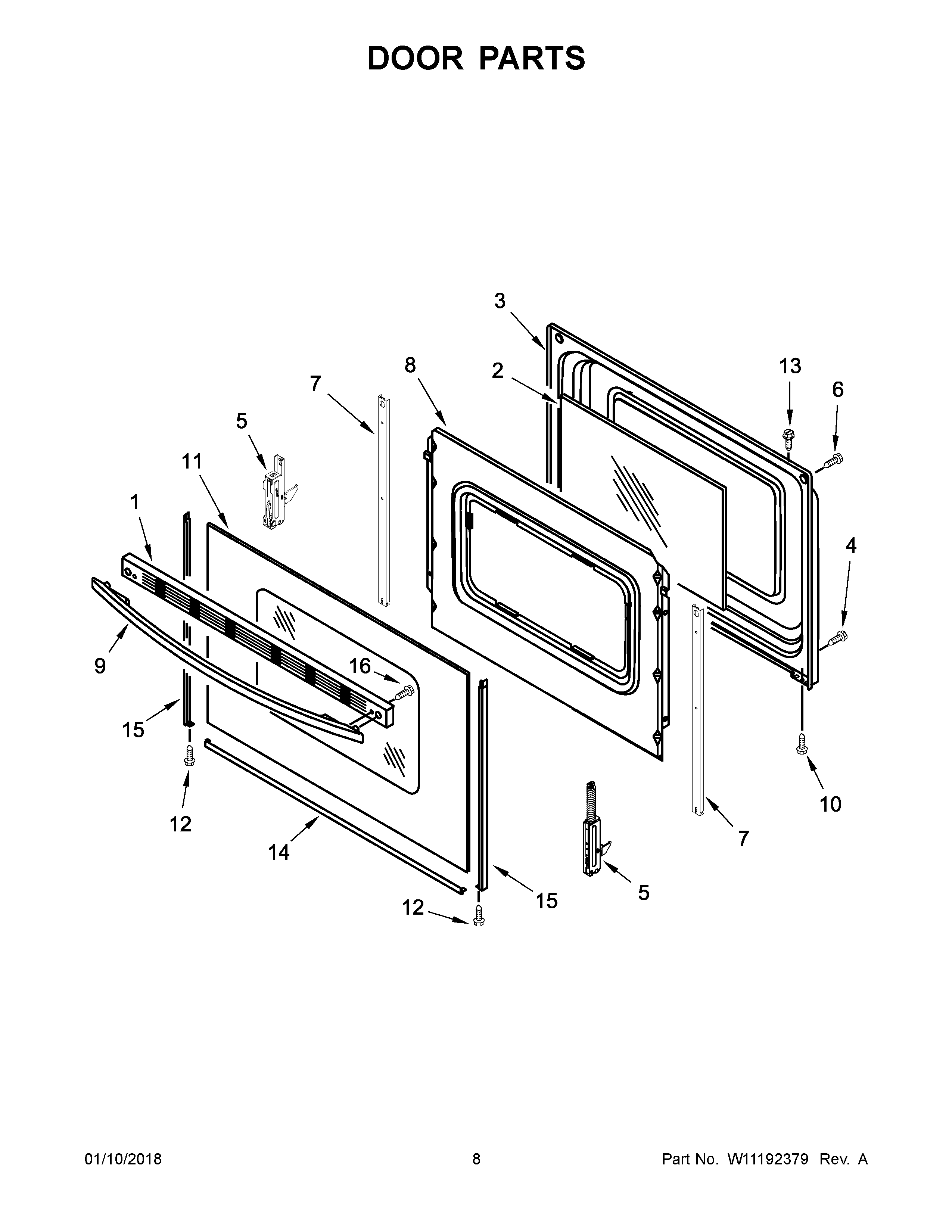

4KAER5500AW1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	GLASS, INNER
3	LINER, DOOR
4	MAY W10031780
5	HINGE, ACTIVE
5A	HINGE, DOOR (PASSIVE)
6	SCREW
7	STRAP, DOOR
8	RETAINER, INSULATION
9	HANDLE, DOOR (WHITE)
10	SCREW
11	Glass, Outer (White)
12	SCREW
13	SCREW
14	TRIM, LOWER (WHITE)
15A	TRIM, SIDE (WHITE (LEFT))
15	TRIM, SIDE (WHITE (RIGHT))
16	SCREW
