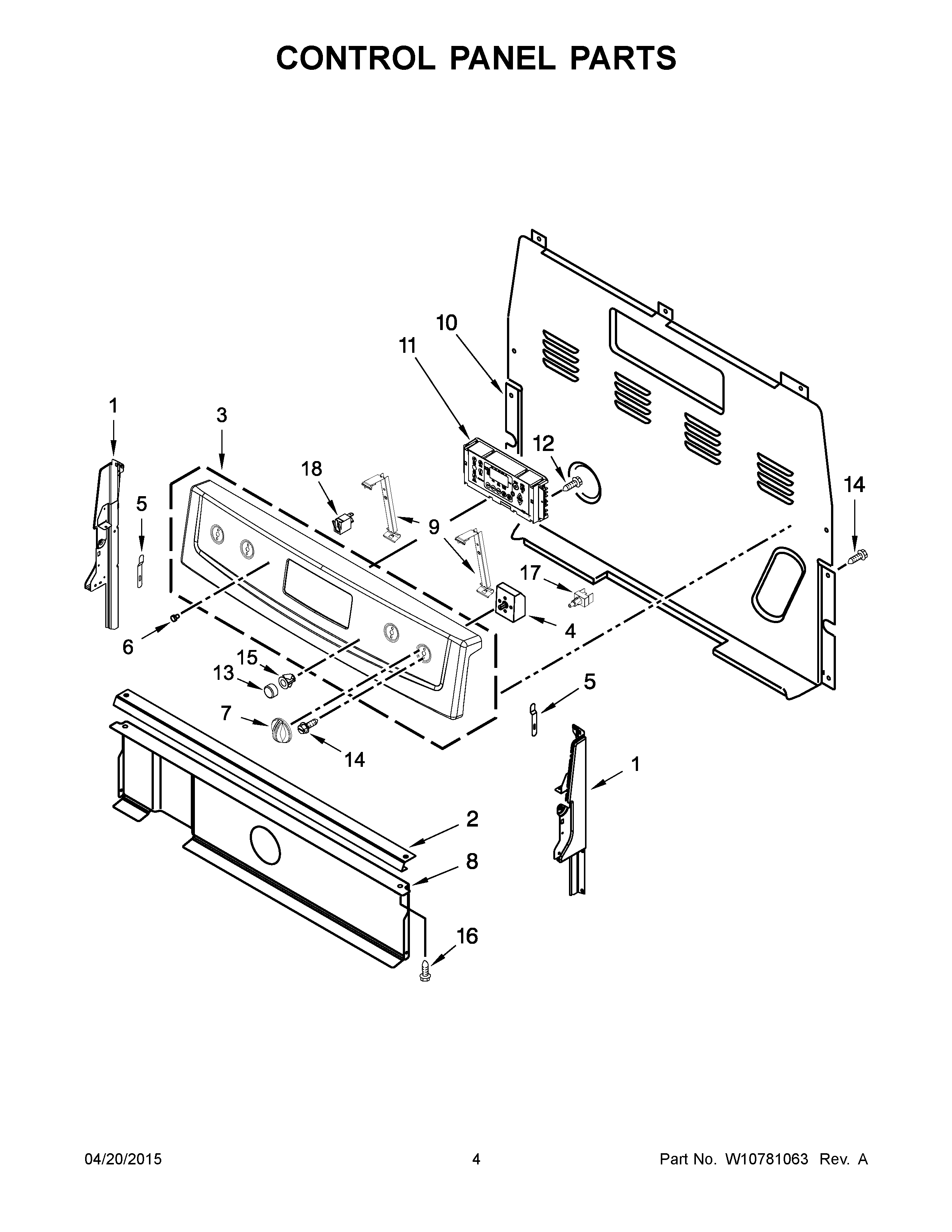

4KAER7685EW0 03 – CONTROL PANEL PARTS

4KAER7685EW0 03 – CONTROL PANEL PARTS

Written by

in

4KAER7685EW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (WHITE (RIGHT))
1ENDCAP (WHITE (LEFT))
2BRACKET, CONSOLE MOUNTING
3MAY W10772083
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4BSWITCH, INFINITE (DUAL) (LEFT FRONT)
5CLIP, SPRING
6MAY 3196068
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, CONTROL
10COVER, UPPER REAR
11MAY W10734600
12SCREW
13MAY 9757492
14SCREW
15BEZEL, KEEP WARM (WHITE)
16SCREW
17SWITCH, WARM CONSOLE MOUNTING
18MAY 8523265
