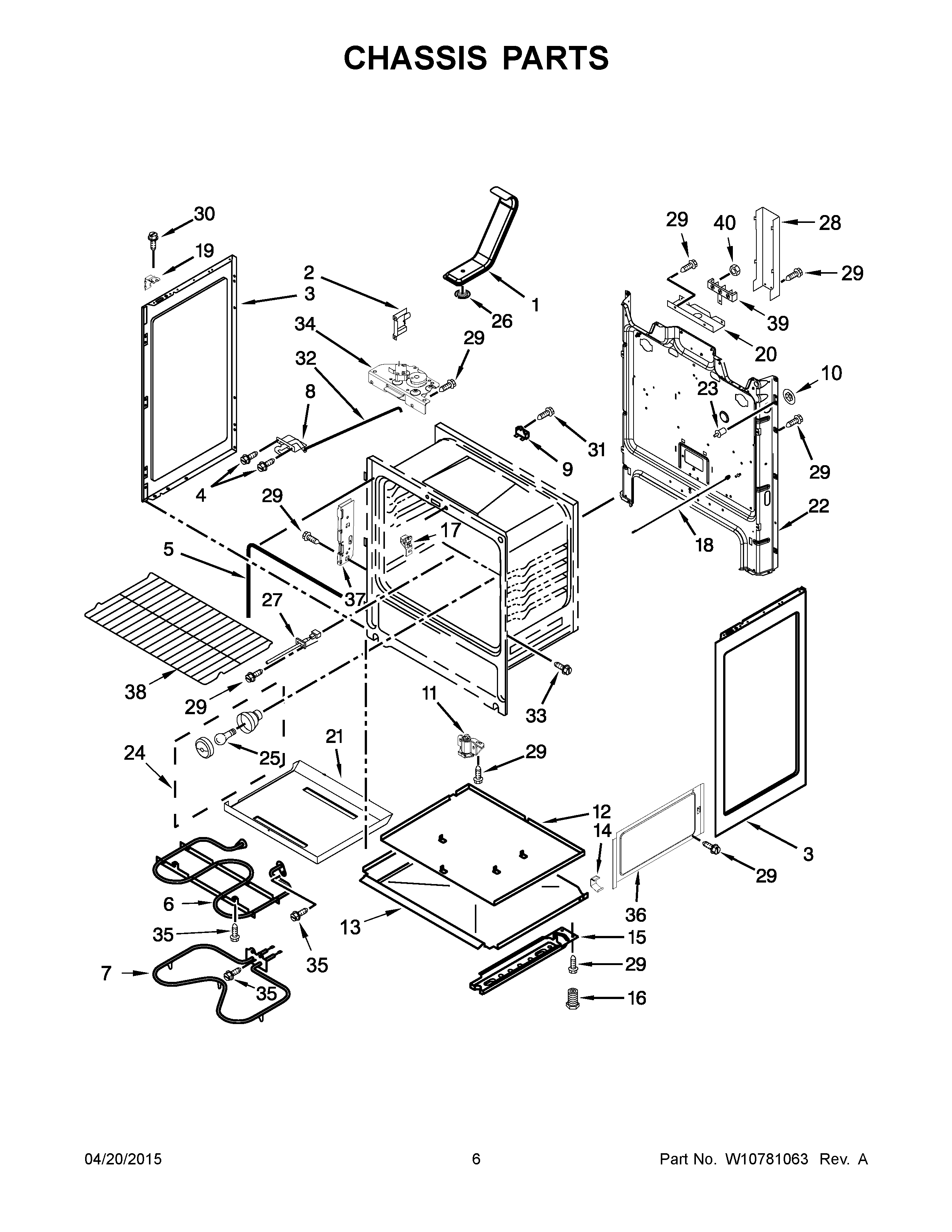

4KAER7685EW0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	MAY W10208653
NI	MAY W10465685
NI	INSULATION, FLUE
NI	CARD, INSULATOR
1	TUBE, VENT
2	CLIP, OVEN SUPPORT
3	PANEL, SIDE (WHITE)
4	SCREW
5	SEAL, DOOR
6	ELEMENT, BAKE
7	ELEMENT, BROIL
8	ASSEMBLY, DOOR LATCH (FRONT)
9	FUSE, THERMAL
10	MAY 3400968
11	ASSEMBLY, FRONT FOOT
12	SHIELD, HEAT
13	TRAY, INSULATION
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	GLIDE, DRAWER FRONT
18	ROD, DOOR SWITCH
19	CLIP, SPRING STEEL
20	BRACKET, SERVICE
21	TRAY, HIDDEN BAKE
22	BACK, MAIN
23	SWITCH, DOOR
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	MAY 9761301
27	SENSOR, OVEN
28	COVER, TERMINAL BLOCK
29	SCREW
30	SCREW
31	SCREW
32	ROD, LATCH
33	SCREW
34	ASSEMBLY, DOOR LATCH (REAR)
35	SCREW
36	MAY W10450380
37	RECEIVER, HINGE
38	RACK, OVEN
39	BLOCK, TERMINAL
40	WP7103P027-60 Whirlpool Nut
