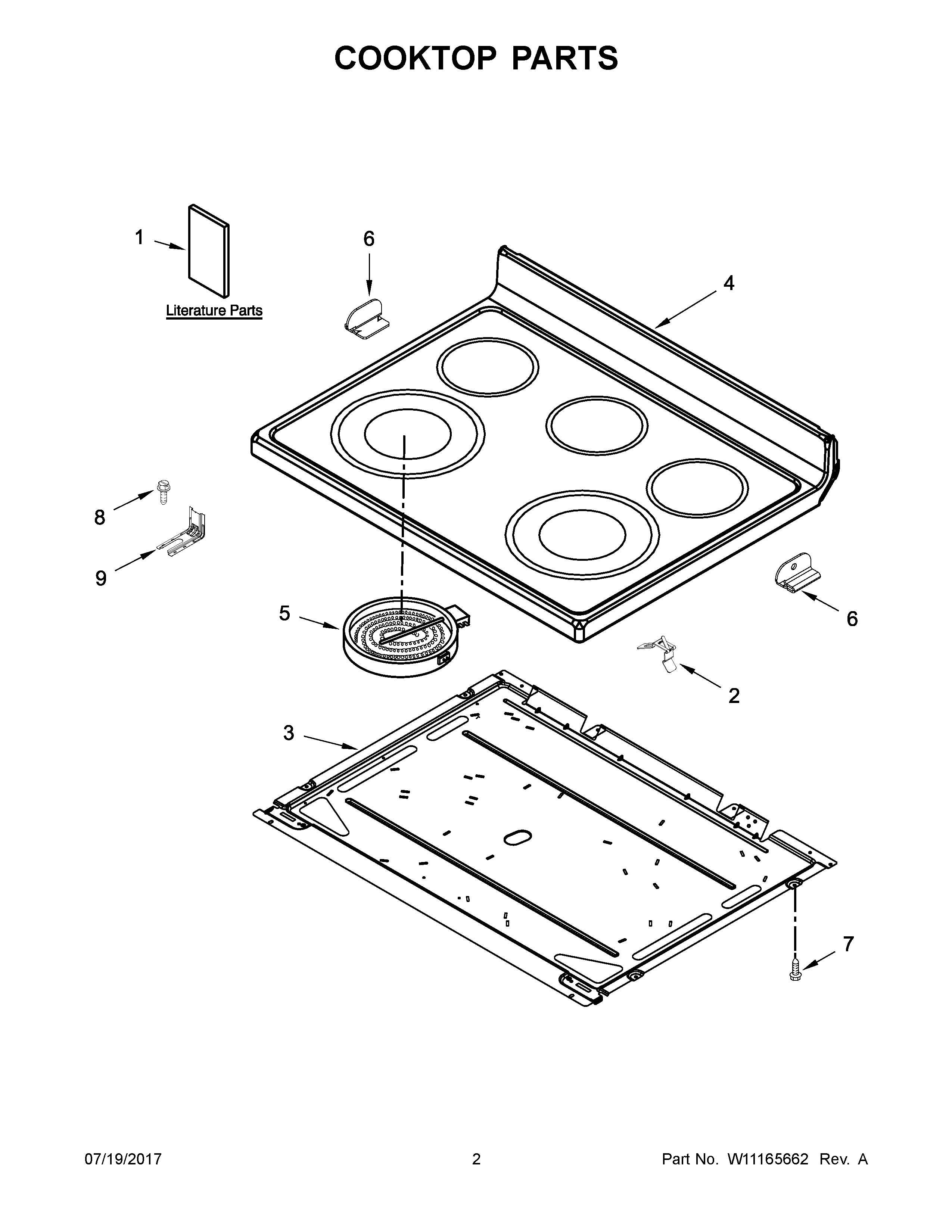

4KAER7685EW1 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	MAY W10261085
NI	MAY W10084660
NI	CLIP, WIRE
NI	WIRING HARNESS PARTS, HARNESS, WIRE COOKTOP LEFT
NI	HARNESS, WIRE (CERAN)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10744973
NI	HARNESS, HIDDEN BAKE
1C	MAY W10720111
1E	TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1	MAY W10771750
1A	MAY W10771751
1B	TECH SHEET (ENGLISH)
1D	Template, Anti-Tip (English/French)
1F	TIPS, SAFE COOKING (ENGLISH)
2	SPRING, ELEMENT
3	PAN, RADIANT ELEMENT
4	MAY W10720823
5A	ELEMENT (2500W) (RIGHT FRONT)
5B	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5	ELEMENT (3000W) (LEFT FRONT)
5C	ELEMENT, WARM ZONE (CENTER REAR)
6	BRACKET, COOKTOP (LEFT)
6A	BRACKET, COOKTOP (RIGHT)
7	SCREW
8	SCREW, ANTI-TIP KIT
9	BRACKET, ANTI-TIP
