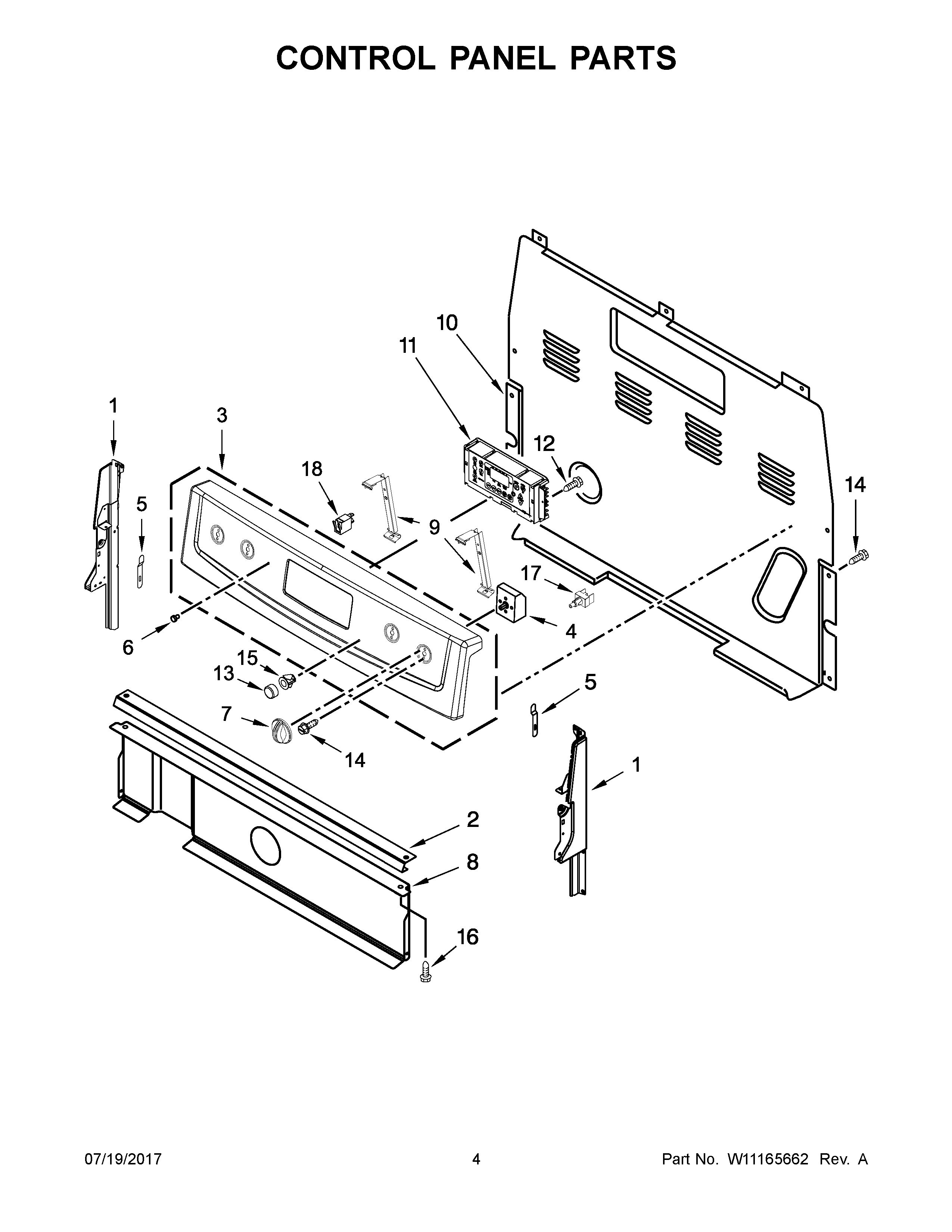

4KAER7685EW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (WHITE (LEFT))
1A	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	MAY W10772083
4B	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4	SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	CLIP, SPRING
6	MAY 3196068
7	KNOB, INFINITE (WHITE)
8	SHIELD, HEAT
9	BRACKET, CONTROL
10	COVER, UPPER REAR
11	CONTROL, RANGE (LCC 95) (WHITE)
12	SCREW
13	MAY 9757492
14	SCREW
15	BEZEL, KEEP WARM (WHITE)
16	SCREW
17	SWITCH, WARM CONSOLE MOUNTING
18	MAY 8523265
