4KAER7685EW1 05 – DOOR PARTS

4KAER7685EW1 05 – DOOR PARTS

Written by

in

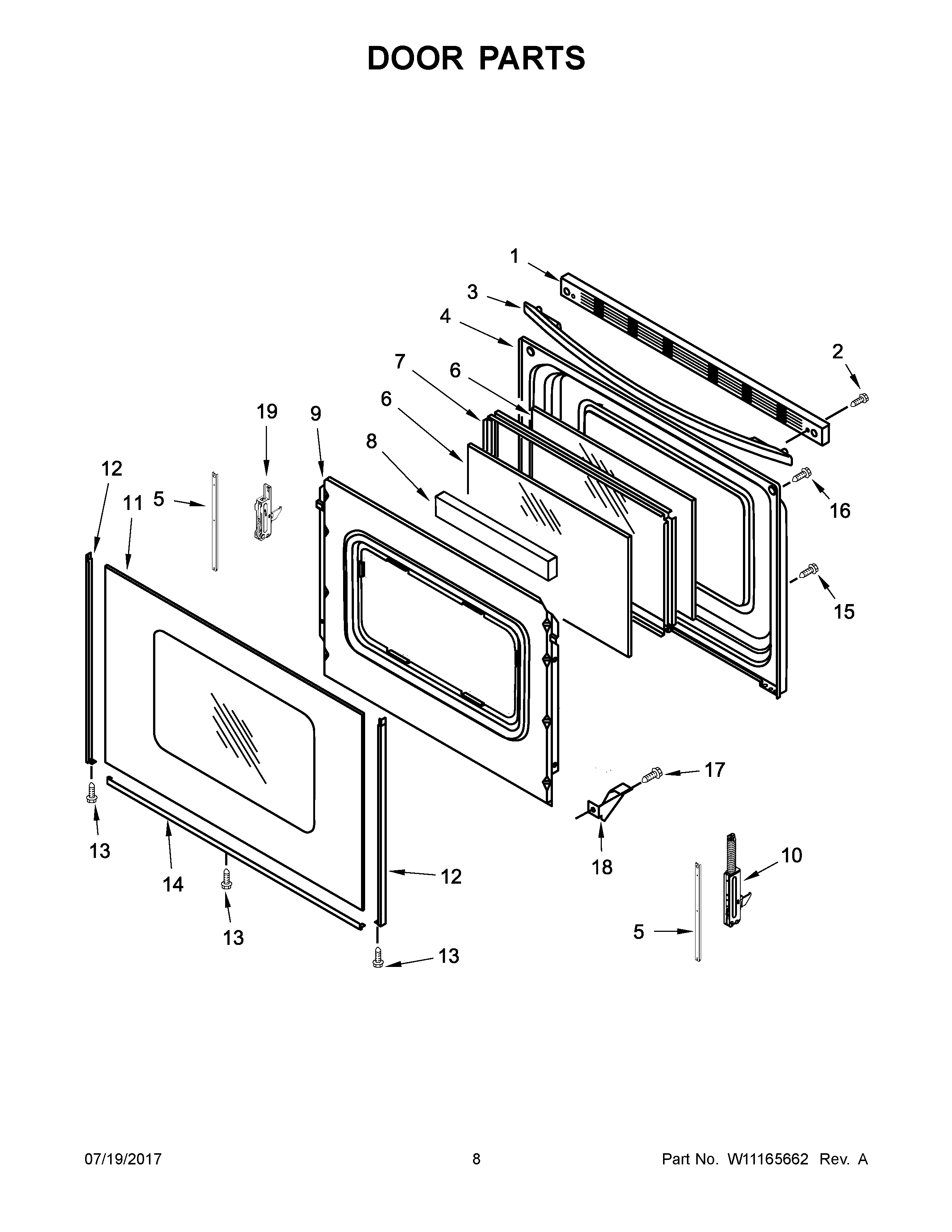

4KAER7685EW1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	STRAP, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, ACTIVE (WITH SPRING)
11	Glass, Outer (White)
12	TRIM, SIDE (WHITE (LEFT))
12A	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	TRIM, LOWER (WHITE)
15	SCREW
16	MAY W10031780
17	SCREW
18	CLIP, PANEL
19	HINGE, DOOR (PASSIVE)
