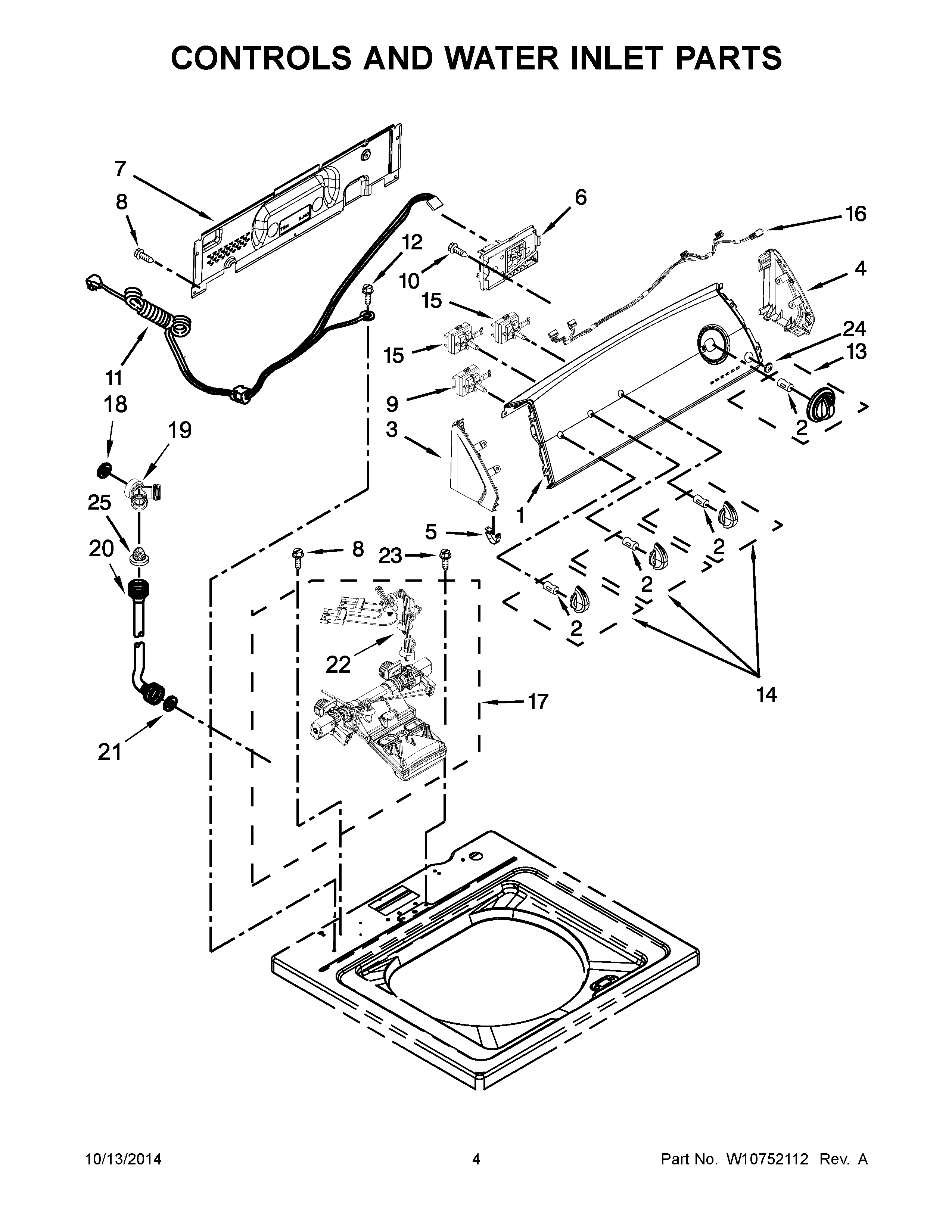

4KATW4930DW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (TYPE B)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10725842
2	CLIP, SPRING
3	MAY W10251358
4	MAY W10251355
5	MAY 8312709
6	MAY W10729893
7	MAY W10461159
8	MAY 1157158
9	SWITCH, ROTARY ENCODER
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	MAY W10327522
14	MAY W10327523
15	MAY W10285511
16	MAY W10291183
17	MAY W10683676
18	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
19	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
20A	MAY W10194211
20	MAY W10194210
21	ACCESSORY PARTS, WASHER, HOSE
22	MAY W10684972
23	MAY W10213953
24	MAY W10251309
25	MAY 353362
