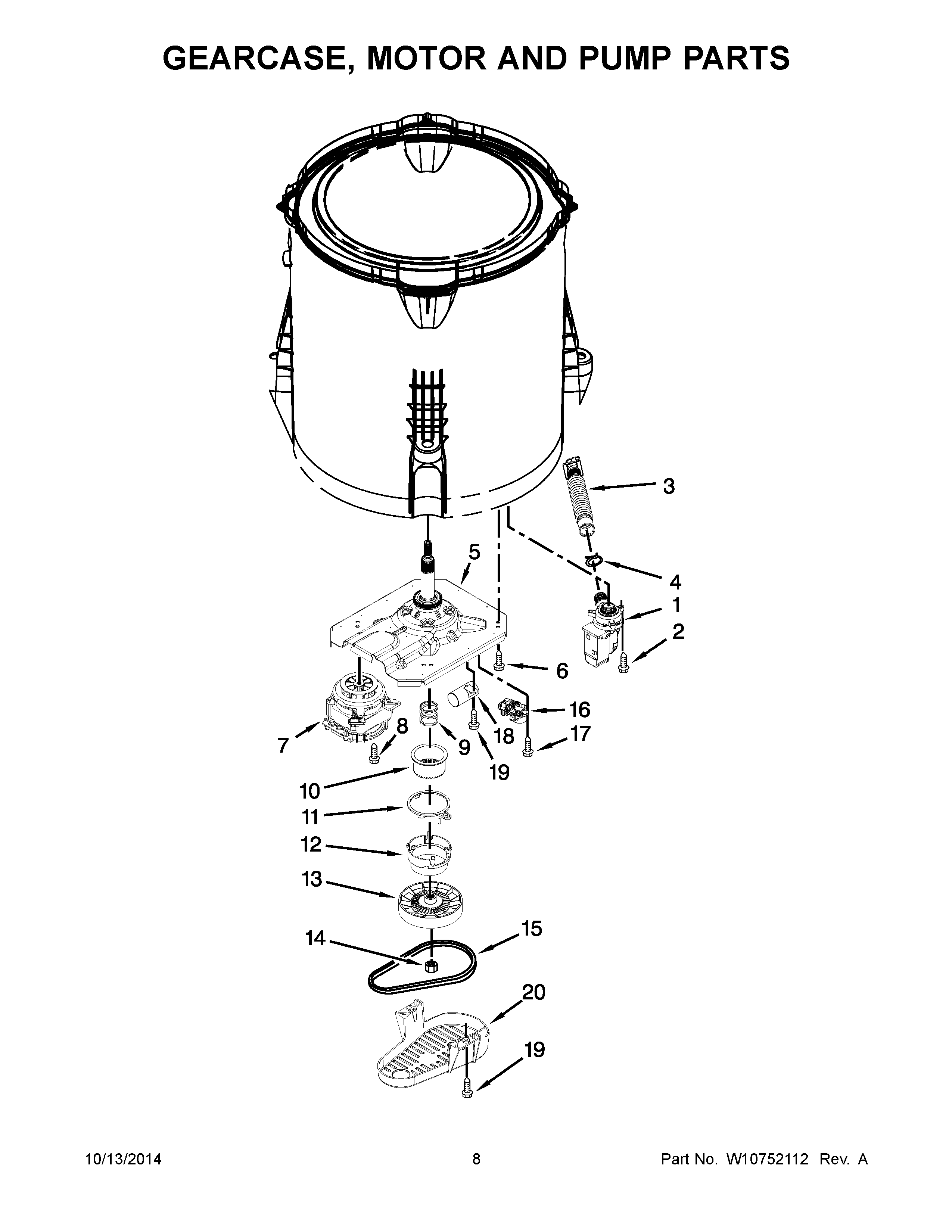

4KATW4930DW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

Products

Position	Product
1	MAY W10297344
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10469845
6	SCREW
7	MAY W10416663
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH (INCLUDES ITEMS 9, 11, 12 AND 13)
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10239973
14	NUT
15	MAY W10006384
16	MAY W10249623
17	SCREW
18	CAPACITOR, MOTOR RUN
19	SCREW
20	MAY W10427633
