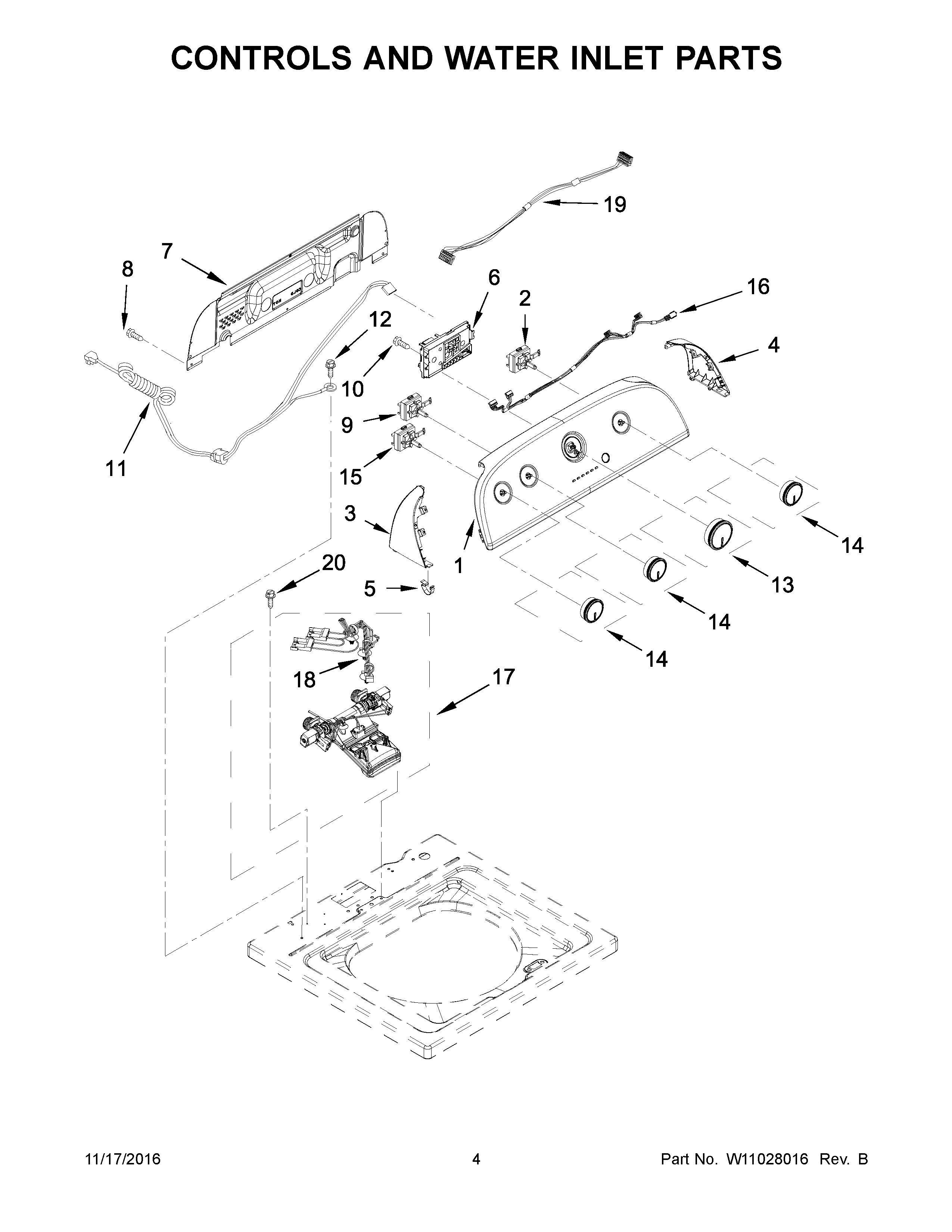

4KATW5215FW0 03 – CONTROLS AND WATER INLET PARTS

4KATW5215FW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4KATW5215FW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (TYPE B)
NI10A CORD LOCK
1MAY W10774534
2MAY W10285511
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5MAY 8312709
6MAY W10863045
7MAY W10461159
8MAY 1157158
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11POWER CORD, UNIVERSAL
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16MAY W10694682
17INLET ASSEMBLY, WATER
18HARNESS, VALVE
19HARNESS, UPPER
20MAY W10213953
