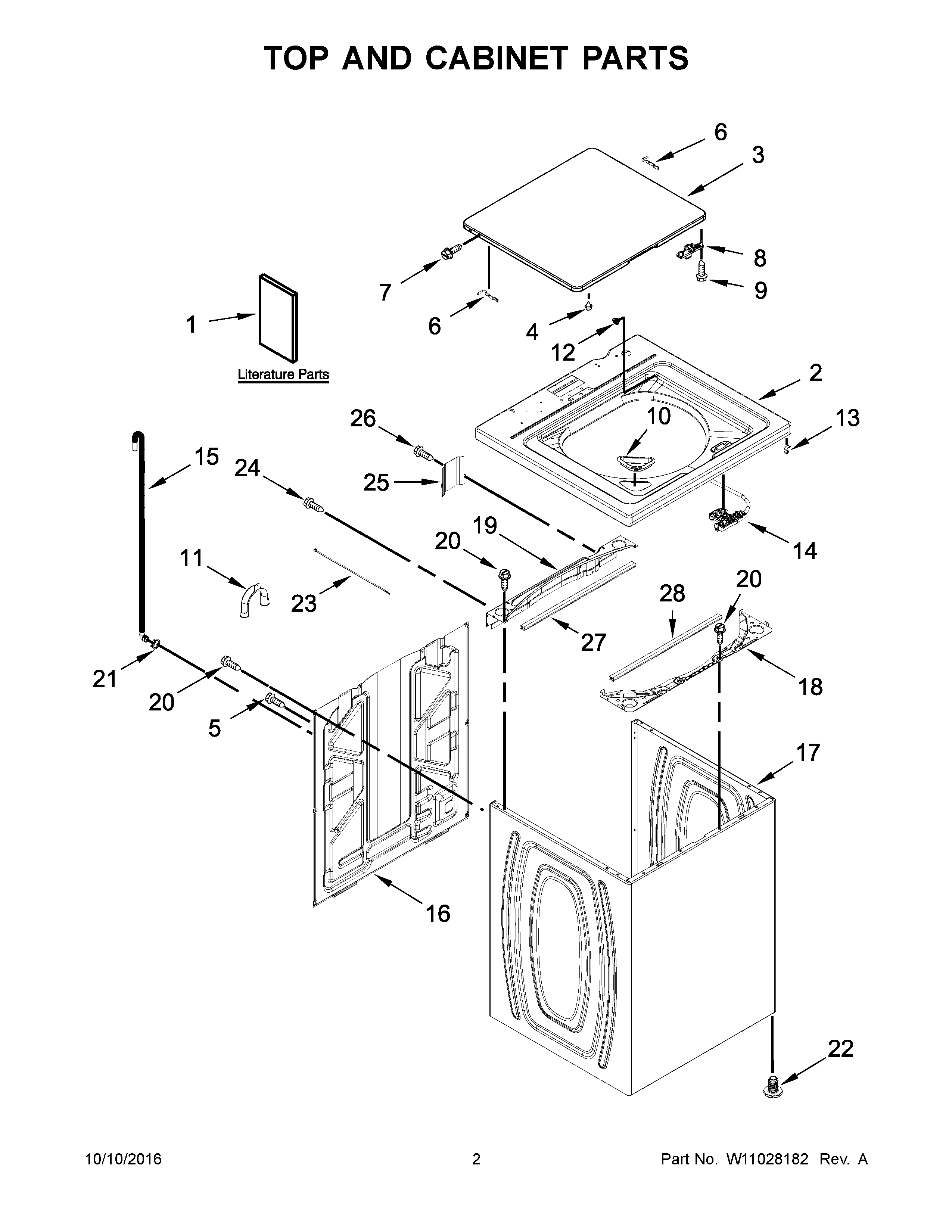

4KATW5415FW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1AMAY W10849504
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
2MAY W10686433
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11MAY W10280024
12Hinge, Bearing (2)
13Clip, Wire (4)
14LATCH, LID LOCK ASSEMBLY
15HOSE, OUTER DRAIN ASSEMBLY
16PANEL, REAR
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21MAY 356138
22MAY W10397994
23TIE, CABLE
24SCREW
25MAY W10676061
26Screw, 10-32 x 5/8
27BRACE-GUARD, CABINET REAR TOP
28BRACE-GUARD, CABINET FRONT TOP
