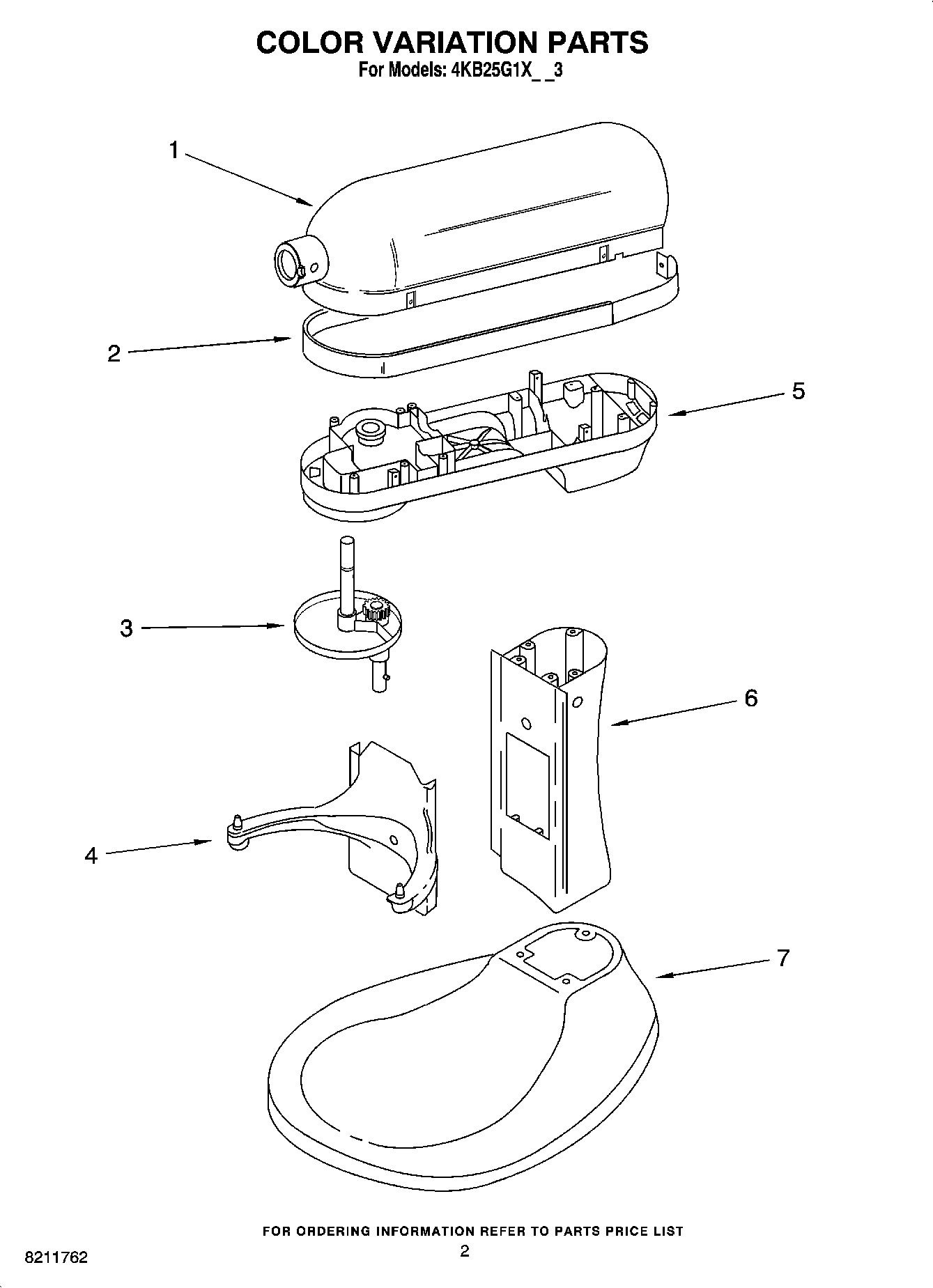

4KB25G1XBU3 01 – COLOR VARIATION PARTS

4KB25G1XBU3 01 – COLOR VARIATION PARTS

Written by

in

4KB25G1XBU3 01 – COLOR VARIATION PARTS

Products

PositionProduct
1Motor Housing (Tangerine)
19703311 Whirlpool Housing Assembly
19705296 Whirlpool Housing
19705300 Whirlpool Housing Assembly
1Motor Housing (Cobalt Blue)
2Trim Band (Grey/White)
2Trim Band (Black/Silver)
3Planetary (Cobalt Blue)
3WP9708180 Whirlpool Planetary Gear
3WP9708176 Whirlpool Planetary Mixer
3WP9708172 Whirlpool Planetary Assembly
39708189 Whirlpool Planetary Mixer
49703674 Whirlpool Support
49705356 Whirlpool Support
49705360 Whirlpool Support Assembly
4BOWL SUPPORT-Cobalt blue
4WPL 9708074
59708070 Whirlpool Gearcase
5Lower Gearcase (Cobalt Blue)
59706311 Whirlpool Gearcase
59706331 Whirlpool Gearcase
5WP9706047 Whirlpool Gearcase
69703673 Whirlpool Column
6WPL 9708077
69705384 Whirlpool Column
69705324 Whirlpool Column Assembly
69705320 Whirlpool Column
79703690 Whirlpool Base
7WPL 9708080
7Base And Foot Assembly (C
79705348 Whirlpool Base
79705344 Whirlpool Base
