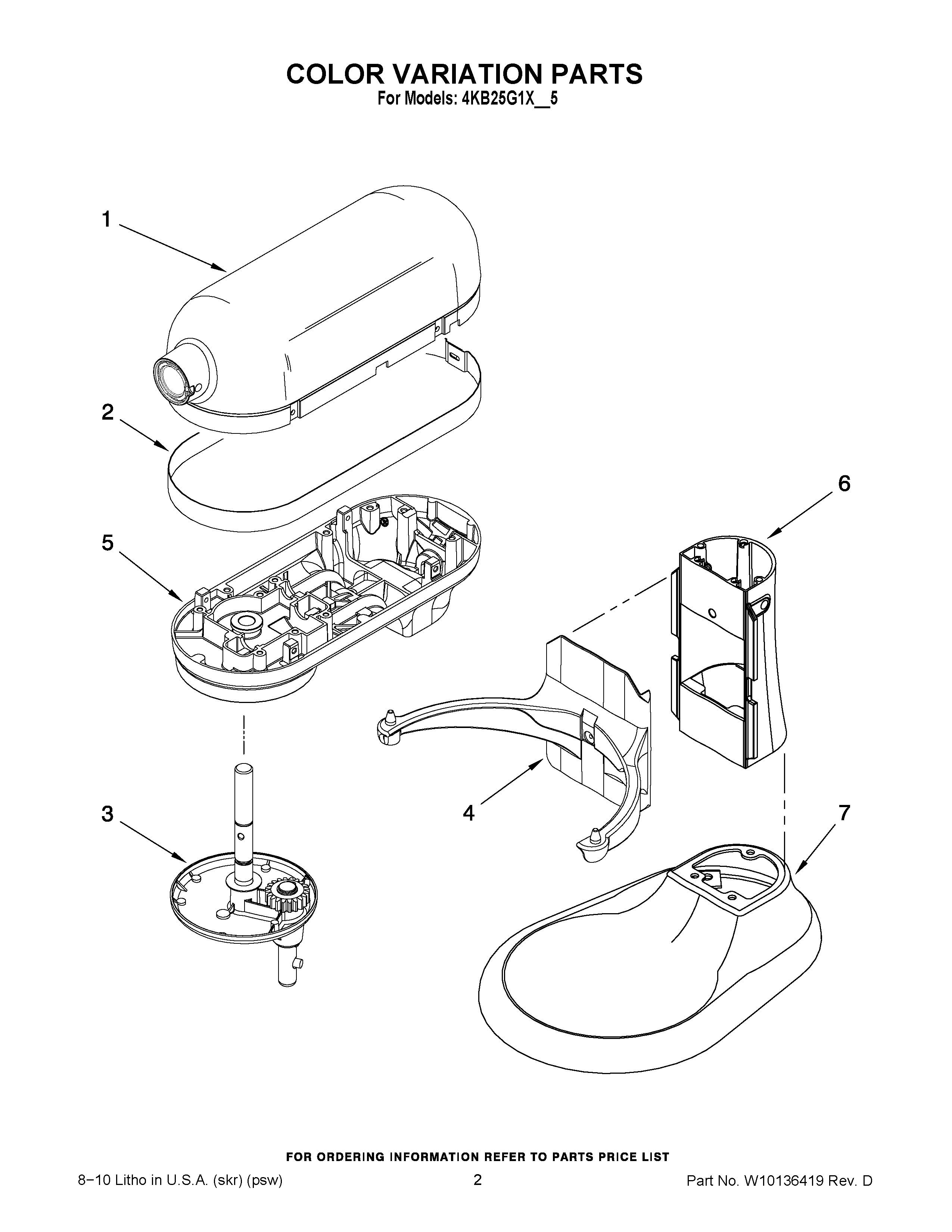

4KB25G1XBY5 01 – COLOR VARIATION PARTS

4KB25G1XBY5 01 – COLOR VARIATION PARTS

Written by

in

4KB25G1XBY5 01 – COLOR VARIATION PARTS

Products

PositionProduct
1Motor Housing (Cobalt Blue)
1MOTOR HOUSING (BOYSENBERRY)
1Motor Housing (Tangerine)
1Motor Housing (Majestic Yellow)
1MOTOR HOUSING (GREEN APPLE)
1MOTOR HOUSING (CORNFLOWER BLUE)
19705300 Whirlpool Housing Assembly
19705296 Whirlpool Housing
19703311 Whirlpool Housing Assembly
19703433 Whirlpool Housing
2Trim Band (Grey/White)
2Trim Band (Black/Silver)
3Planetary (Cobalt Blue)
39708181 Whirlpool Planetary
39708189 Whirlpool Planetary Mixer
3W10343681 Whirlpool Planetary Gear
3PLANETARY (CORNFLOWER BLUE)
3WP9708172 Whirlpool Planetary Assembly
3W10343683 Whirlpool Planetary Gear
3WP9708175 Whirlpool Planetary Gear
3WP9708176 Whirlpool Planetary Mixer
3WP9708180 Whirlpool Planetary Gear
4WPL 9708074
4BOWL SUPPORT & PIN (CORNFLOWER BLUE)
4BOWL SUPPORT & PIN (BOYSENBERRY)
4W10344054 Whirlpool Support
4WPL 9705361
49703674 Whirlpool Support
49703397 Whirlpool Support
49705356 Whirlpool Support
49705360 Whirlpool Support Assembly
4BOWL SUPPORT-Cobalt blue
5WPL W10343979
5Lower Gearcase (Majestic Yellow)
5LOWER GEARCASE (GREEN APPLE)
5Lower Gearcase (Metallic Chrome)
5WP9706047 Whirlpool Gearcase
59706331 Whirlpool Gearcase
59706311 Whirlpool Gearcase
5W10343980 Whirlpool Gearcase Assembly
59708070 Whirlpool Gearcase
5Lower Gearcase (Cobalt Blue)
6WPL W10344073
69705324 Whirlpool Column Assembly
6WPL W10344074
69705320 Whirlpool Column
6WPL 9705325
6WPL 9708077
6WPL W10344072
69703349 Whirlpool Column
69703673 Whirlpool Column
69705384 Whirlpool Column
79705348 Whirlpool Base
7Base And Foot Assembly (C
79703346 Whirlpool Base
7WPL W10344175
7WPL W10344174
7WPL 9705349
79703690 Whirlpool Base
79705344 Whirlpool Base
7WPL 9708080
7WPL W10344173
