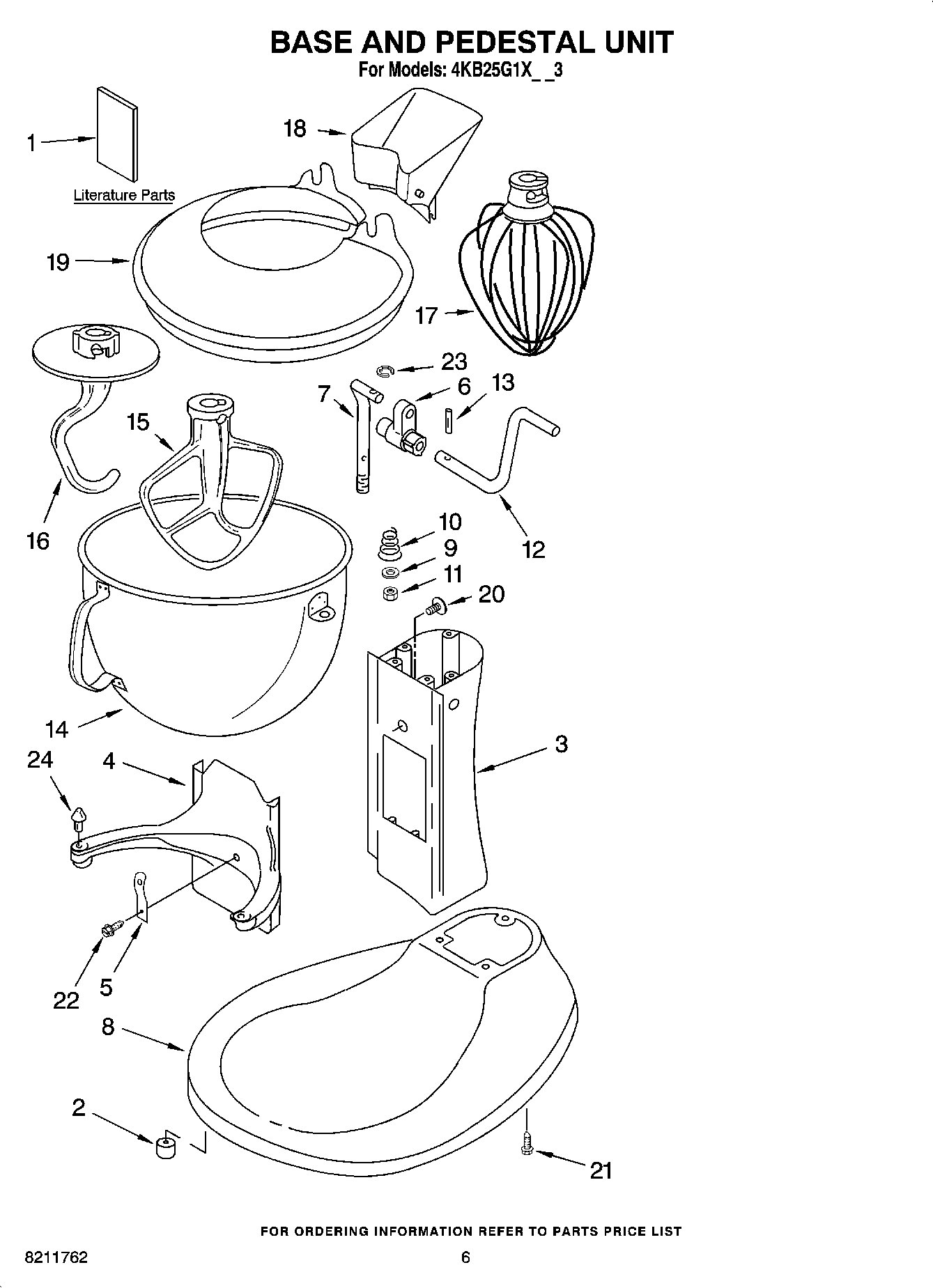

4KB25G1XER3 03 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

4KB25G1XER3 03 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Written by

in

4KB25G1XER3 03 – BASE AND PEDESTAL UNIT AND ACCESSORY PARTS

Products

PositionProduct
1Use & Care Guide (Repair Parts List (7))
1GUIDE, USE AND CARE
2WP9708649 Whirlpool Foot
3Column Assembly
4Bowl Support
5WPW10504114 Whirlpool Clip
6WP9706885 Whirlpool Lift Arm Assembly
7W11376364 Whirlpool Lift Rod
8Base And Foot Supports
9Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W11376371 Whirlpool Handle Assembly
13WP3400814 Whirlpool Screw
14WPW10717235 Whirlpool Mixer Bowl
15WPW10672616 Whirlpool Mixer Beater
16WPW10674620 Whirlpool Dough Hook
17WP9703491 Whirlpool Wire Whip
19WPW10617049 Whirlpool Pour Shelf
20Cam, Adjusting
21W10913677 Whirlpool Screw
22W10861883 Whirlpool Screw
23WP9703307 Whirlpool Ring-C Assembly
24JUICER (JE)
24FOOD GRINDER (FG-A)
24ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
24CAN OPENER (CO)
24Food Tray (FT)
24Grain Mill (GM-A)
2467500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
24PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
24WP240185 Whirlpool Bowl Retaining Pin
24FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
24FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
24PASTA MAKER PLATES (SNPA)
24W11200218 Whirlpool Grease Filter
24SAUSAGE STUFFER KIT (SSA)
