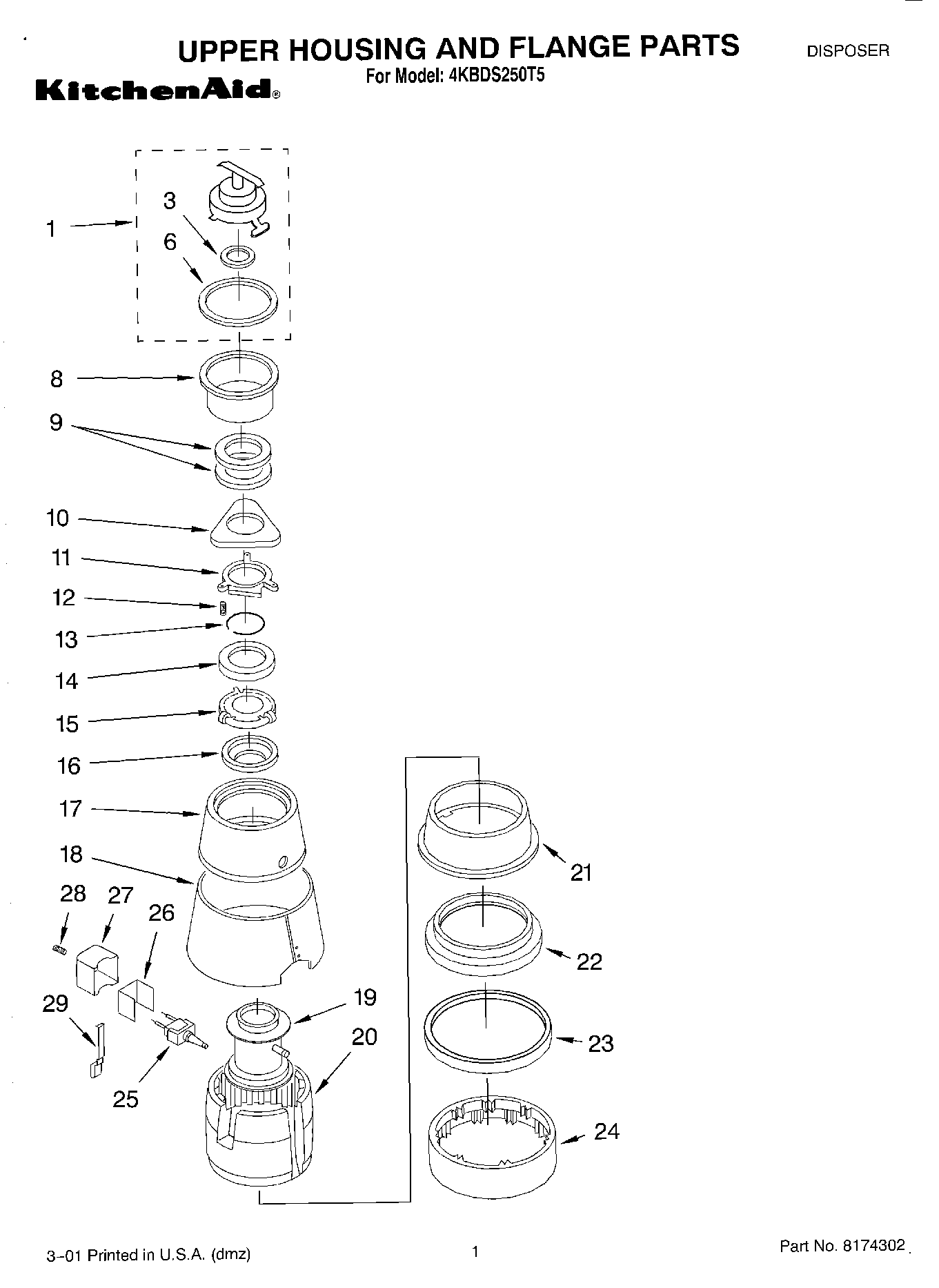

4KBDS250T5 01 – SECTION

4KBDS250T5 01 – SECTION

Written by

in

4KBDS250T5 01 – SECTION

Products

PositionProduct
Repair Parts List
Instructions, Installation (French)
Instructions, Installation (English)
Guide, Use And Care
1Lock Stopper Assembly
34211355 Whirlpool Disposer Gasket
6Gasket, Stopper (Outer)
84211301 Whirlpool Disposer Flange
9WP4211302 Whirlpool Disposer Seal
104211303 Whirlpool Disposer Flange
114211304 Whirlpool Flange Disposer
124211305 Whirlpool Disposer Screw
134211306 Whirlpool Disposer Ring
14Gasket, Mounting
15Flange, Body
16Gasket, Body
17Shell Assembly, Trim (Top)
18Band Assembly, Trim
19Container, Body Assembly (Includes Sound Insulation)
20Insulation, Top
21Body, Lower
22Gasket, Shredder
23Insulation, Sound
24Shredder, Stationary
25Switch, Pushbutton
26Insulation, Switch Cover
27Cover, Switch
28Screw, Tapping (Switch Cover)
29Bracket, Wire Cover
