4KBDS250T5 02 – SECTION
Written by
in

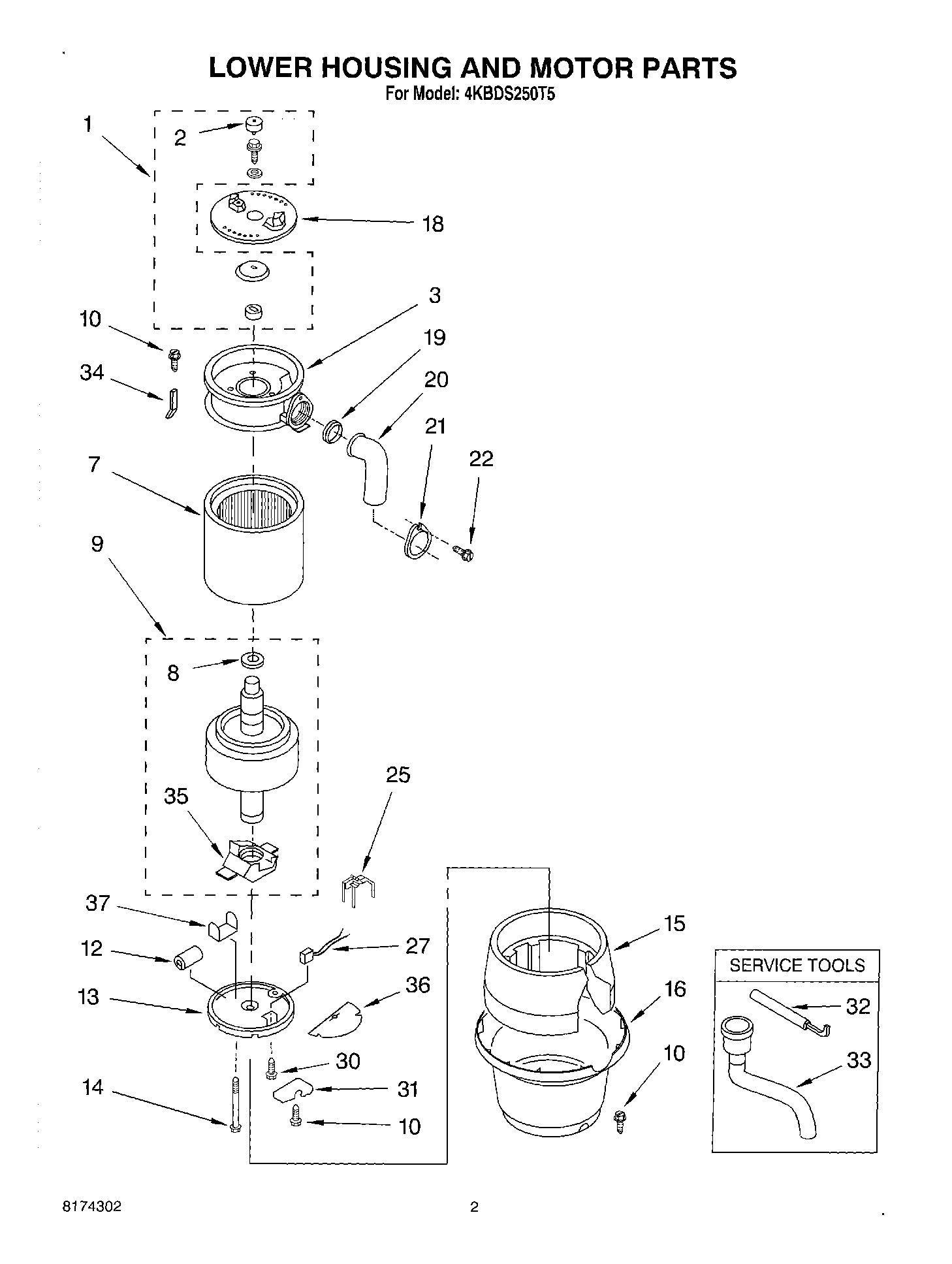

4KBDS250T5 02 – SECTION
Products
Position
Product
2
4211578 Whirlpool Disposer Sleeve
3
End Bell Assembly, Upper
7
Stator Assembly
8
4211321 Whirlpool Washer
9
Shaft Assembly (Includes 8 & 35)
10
WP98008545 Whirlpool Screw
12
Capacitor
13
End Frame, Assembly (Lower)
14
Bolt, Thru
15
Insulation, Bottom
16
Trim, Shell Assembly
18
Shredder Assembly, Rotating
19
Gasket, Tailpipe
20
4211317 Whirlpool Disposer Tail Pipe
21
Flange, Tailpipe
22
WP8204624 Whirlpool Bolt
25
Switch Assembly, Start & Reverse
27
Overload, Protector
30
Screw, Tailpipe
31
Cover, Terminal
32
WP8174310 Whirlpool Disposer Wrench
33
4211396 Whirlpool Disposer Adapter
34
Shield, Wire Cover
35
4211322 Whirlpool Disposer Actuator
36
Shield, Wire
37
Clip, Capacitor
←
