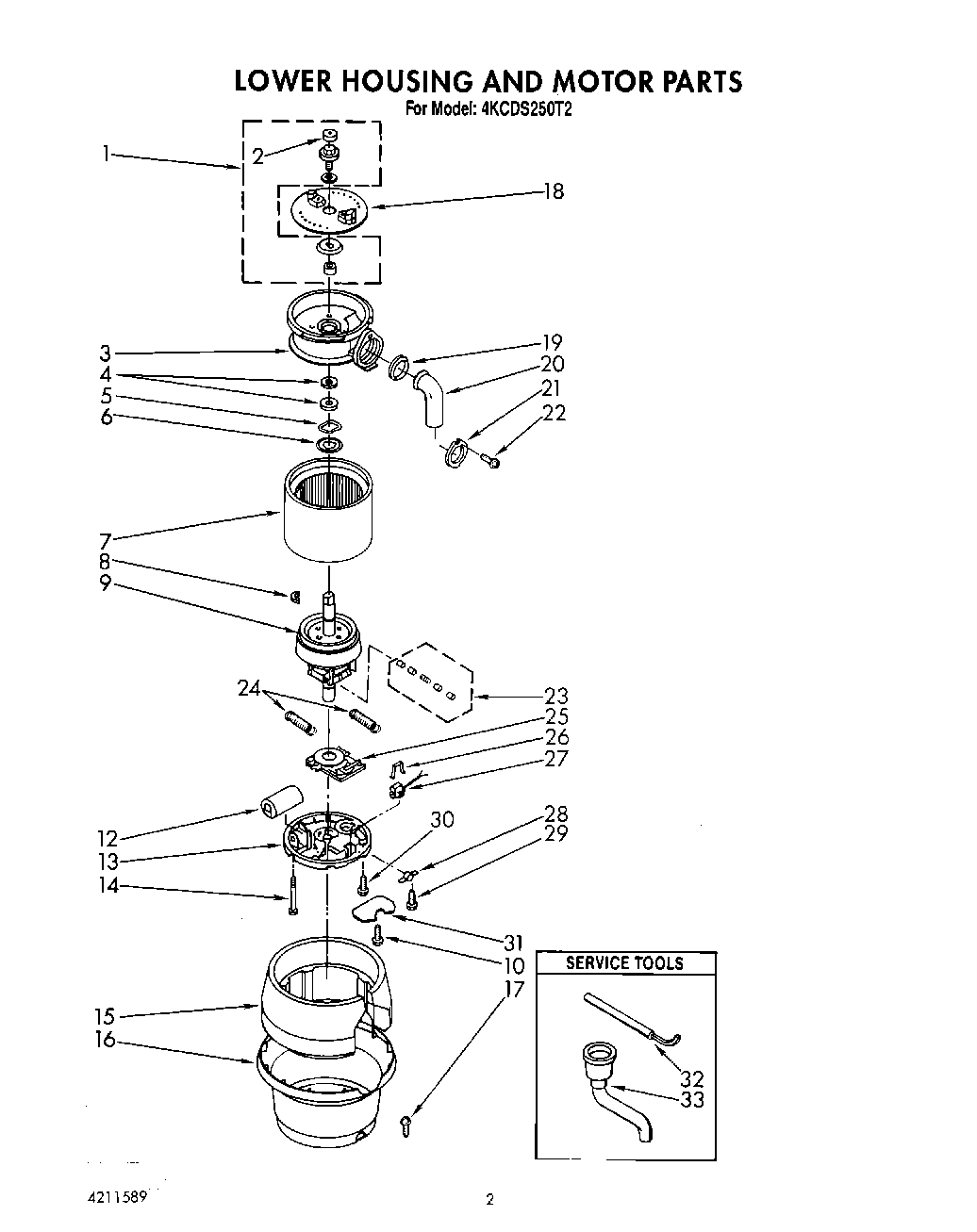

4KCDS250T2 02 – SECTION

Products

Position	Product
2	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly, Upper
4	Washer, Phenolic (2)
5	Washer, Rubber
6	Washer, Thrust
7	Stator Assembly
8	Ring, C
9	Rotor And Shaft Assembly
10	Screw
12	Capacitor
13	End Frame Assembly (Lower)
14	Bolt, Thru (4)
15	Insulation, Bottom
16	Trim, Shell Assembly
17	Screw, Tapping
18	Shredder Assembly, Rotating
19	Gasket, Tailpipe
20	4211317 Whirlpool Disposer Tail Pipe
21	Flange, Tailpipe
22	WP8204624 Whirlpool Bolt
23	Transfer Assembly
24	Spring (2) (Centrifugal Actuator)
25	Switch Assembly, Start
26	Clip, Overload
27	Protector, Overload
28	Clamp, BX
29	Screw, Clamp (2)
30	Screw, Ground
31	Cover, Terminal
32	WP8174310 Whirlpool Disposer Wrench
33	4211396 Whirlpool Disposer Adapter
