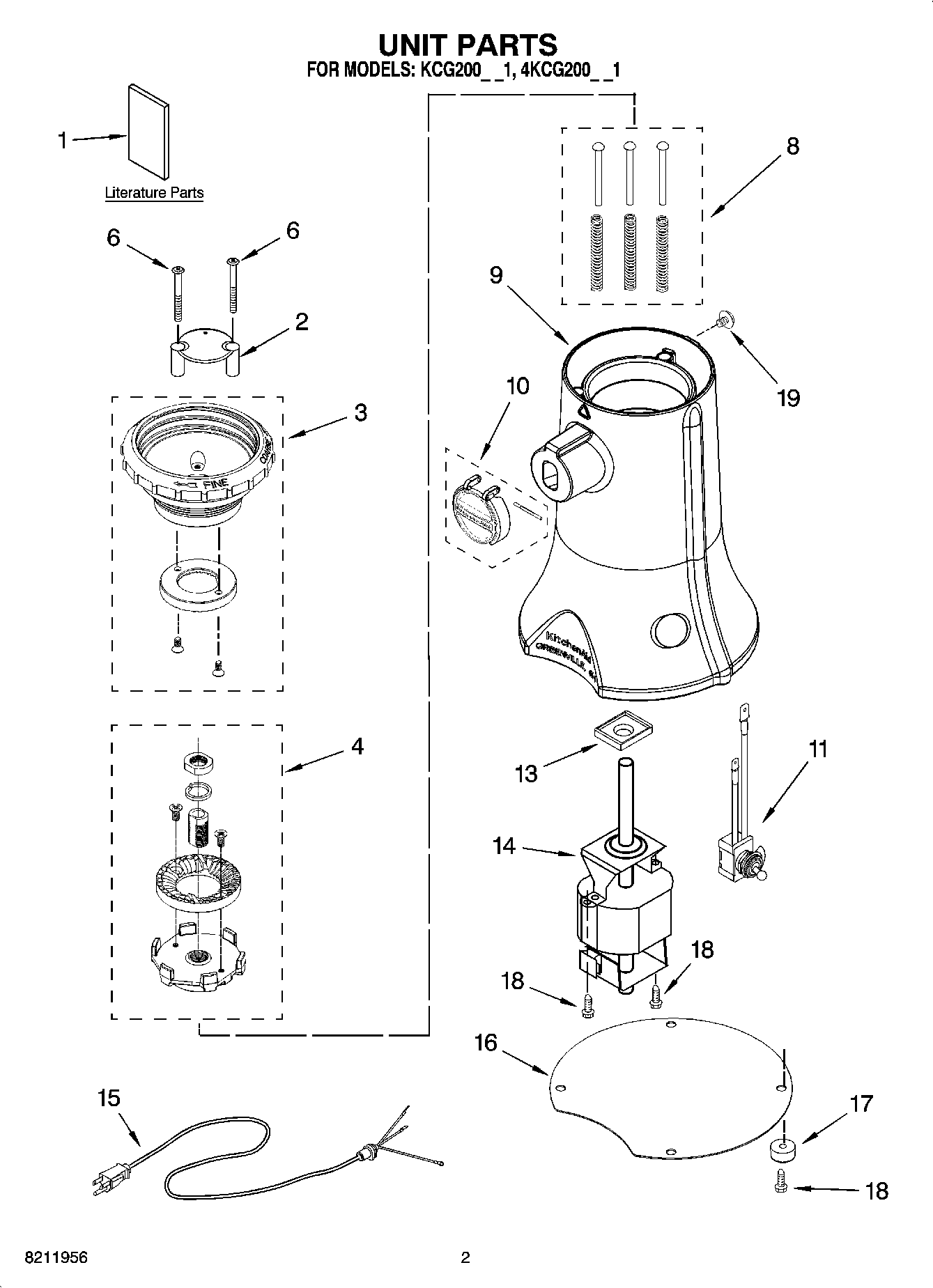

4KCG200OB1 01 – UNIT PARTS

Products

Position	Product
1	Use & Care Guide
1	Use & Care Guide
1	Repair Parts List
2	Guard, Finger
3	Support, Jar Asm
4	Assembly, Support & Burr
6	Screw, Finger Grd
8	Spring/Plunger Assembly
9	Housing, Motor (Empire Red)
9	Housing, Motor (White)
9	Housing, Motor (Blue Willow)
9	Housing, Motor (Gloss Cinnamon)
9	Housing, Motor (Tangerine)
9	Housing, Motor (Pink)
9	Housing, Motor (Cobalt Blue)
9	Housing, Motor (Metallic Chrome)
9	Housing, Motor (Onyx Black)
10	Door, Hub
11	Switch, Toggle Wire
13	Gasket, Motor
14	Motor
15	Cord, Power (Black)
15	Cord, Power (White)
16	Plate, Bottom
17	Foot, Rubber
18	WP489128 Whirlpool Refrigerator Screw
19	Screw, Locking
