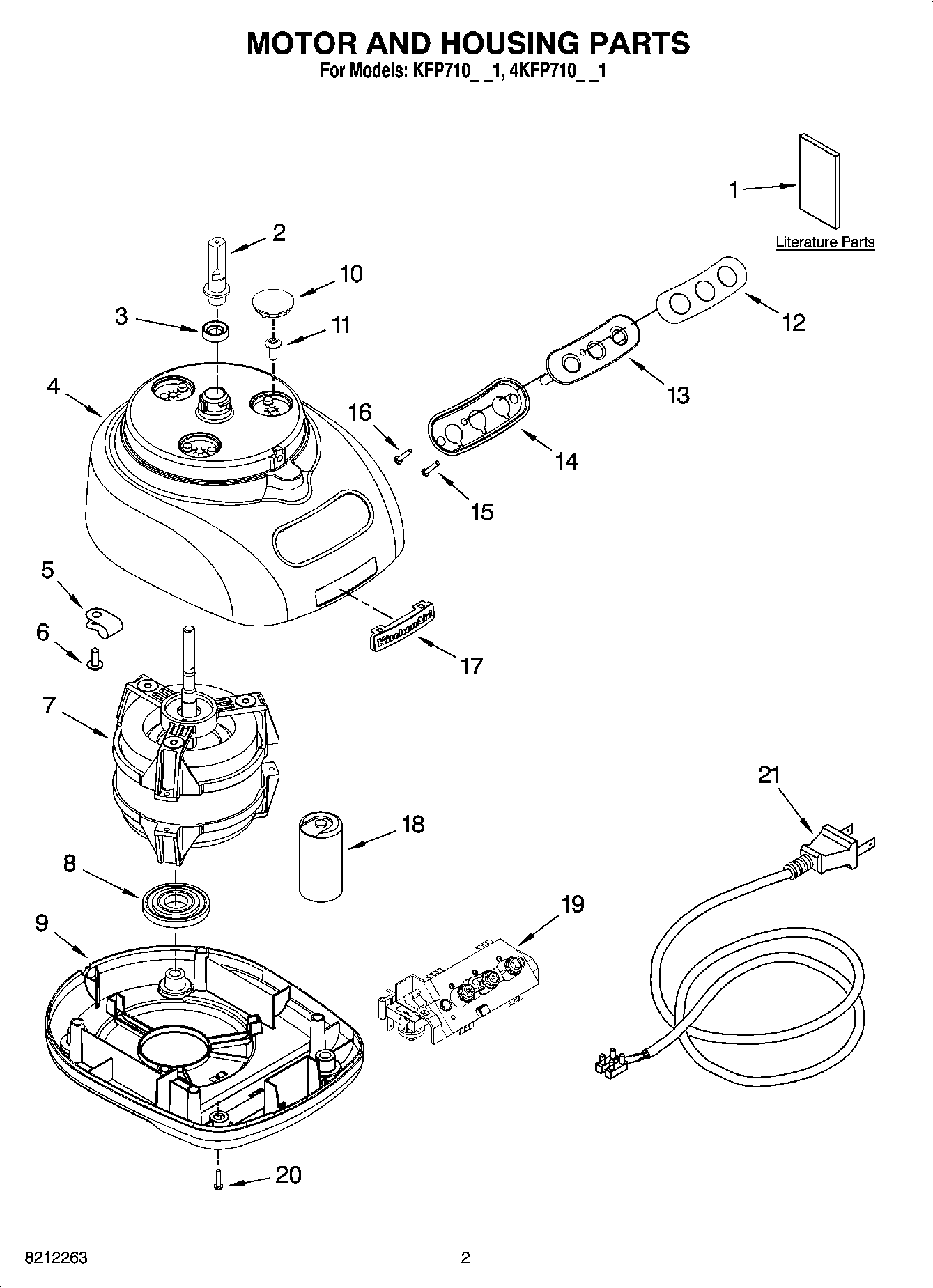

4KFP710WH1 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide Trilingual
2	Sleeve, Motor Shaft
3	8211817 Whirlpool Seal Assembly
4	Housing, Motor (White)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	Base, Housing (White)
10	Cover, Screw (White)
11	Screw, Motor Locking
12	8211878 Whirlpool Overlay
13	Bezel, Switch Panel
14	8211887 Whirlpool Cover
15	Screw, Torx
16	Screw, Switch Panel
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot, Black
21	W10451329 Whirlpool Power Cord
