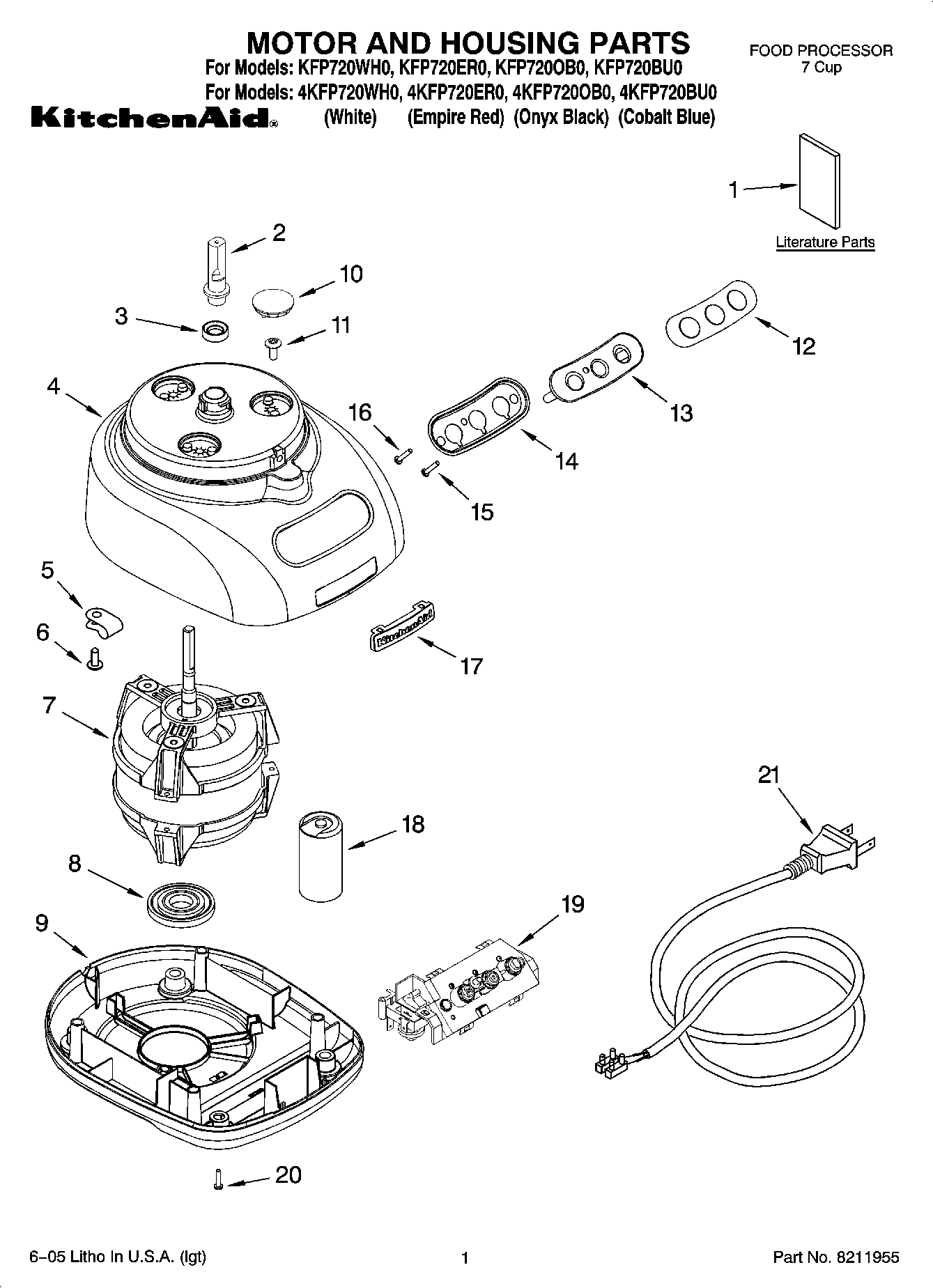

4KFP720ER0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Use & Care Guide
1	List, Repair Parts (1)
2	Sleeve, Motor Shaft
3	8211817 Whirlpool Seal Assembly
4	8211809 Whirlpool Housing
4	Housing, Motor (White)
4	Housing, Motor (Empire Red)
4	Housing, Motor (Cobalt Blue)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	Base, Housing (Onyx Black)
9	Base, Housing (Cobalt Blue)
9	Base, Housing (Empire Red)
9	Base, Housing (White)
10	Cover, Screw (White)
10	Cover, Screw (Empire Red)
10	Cover, Screw (Cobalt Blue)
10	Cover, Screw (Onyx Black)
11	Screw, Motor Locking
12	8211878 Whirlpool Overlay
13	Bezel, Switch Panel
14	8211887 Whirlpool Cover
15	Screw, Torx
16	Screw, Switch Panel
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot, Black
21	W10451329 Whirlpool Power Cord
