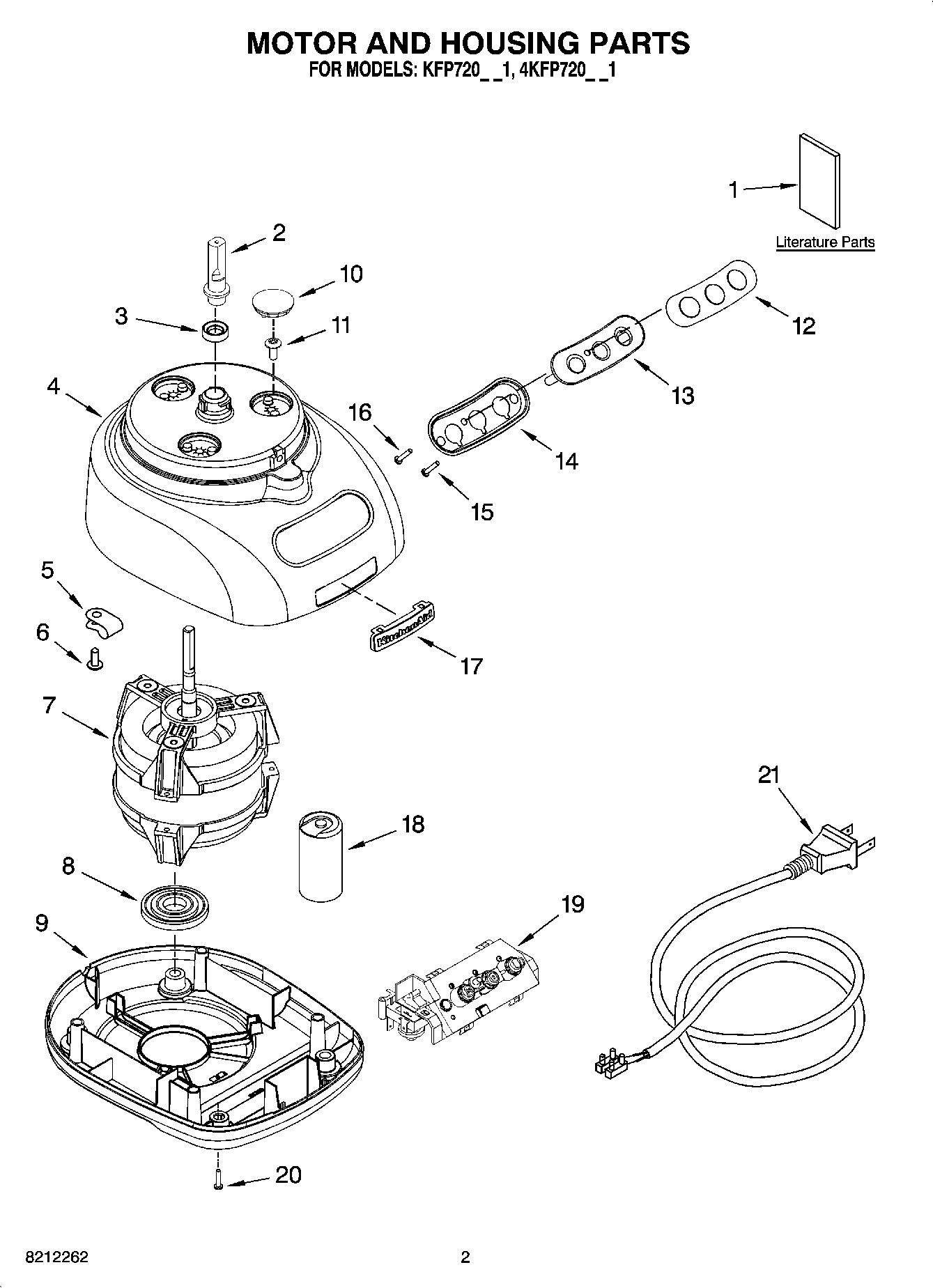

4KFP720OB1 01 – MOTOR AND HOUSING PARTSadmin2025-04-26T13:09:42+00:004KFP720OB1 01 – MOTOR AND HOUSING PARTS
Products
| Position | Product |
|---|
| 1 | Repair Parts List |
| 1 | Use & Care Guide Trilingual |
| 2 | Sleeve, Motor Shaft |
| 3 | 8211817 Whirlpool Seal Assembly |
| 4 | Housing, Motor (Blue Willow) |
| 4 | Housing, Motor (White) |
| 4 | Housing, Motor (Cobalt Blue) |
| 4 | Housing, Motor (Empire Red) |
| 4 | 8211809 Whirlpool Housing |
| 5 | 2185825 Whirlpool Refrigerator Clamp |
| 6 | Screw, Clamp |
| 7 | Motor |
| 8 | Grommet, Motor |
| 9 | Base, Housing (Onyx Black) |
| 9 | Base, Housing (Cobalt Blue) |
| 9 | Base, Housing (Empire Red) |
| 9 | Base, Housing (White) |
| 9 | Base, Housing (Blue Willow) |
| 10 | Cover, Screw (Cobalt Blue) |
| 10 | Cover, Screw (Empire Red) |
| 10 | Cover, Screw (Blue Willow) |
| 10 | Cover, Screw (White) |
| 10 | 8212313 Whirlpool Cover |
| 11 | Screw, Motor Locking |
| 12 | 8211878 Whirlpool Overlay |
| 13 | Bezel, Switch Panel |
| 14 | 8211887 Whirlpool Cover |
| 15 | Screw, Torx |
| 16 | Screw, Switch Panel |
| 17 | Nameplate |
| 18 | Capacitor |
| 19 | Relay & Switch Assembly |
| 20 | Foot, Black |
| 21 | W10451329 Whirlpool Power Cord |
