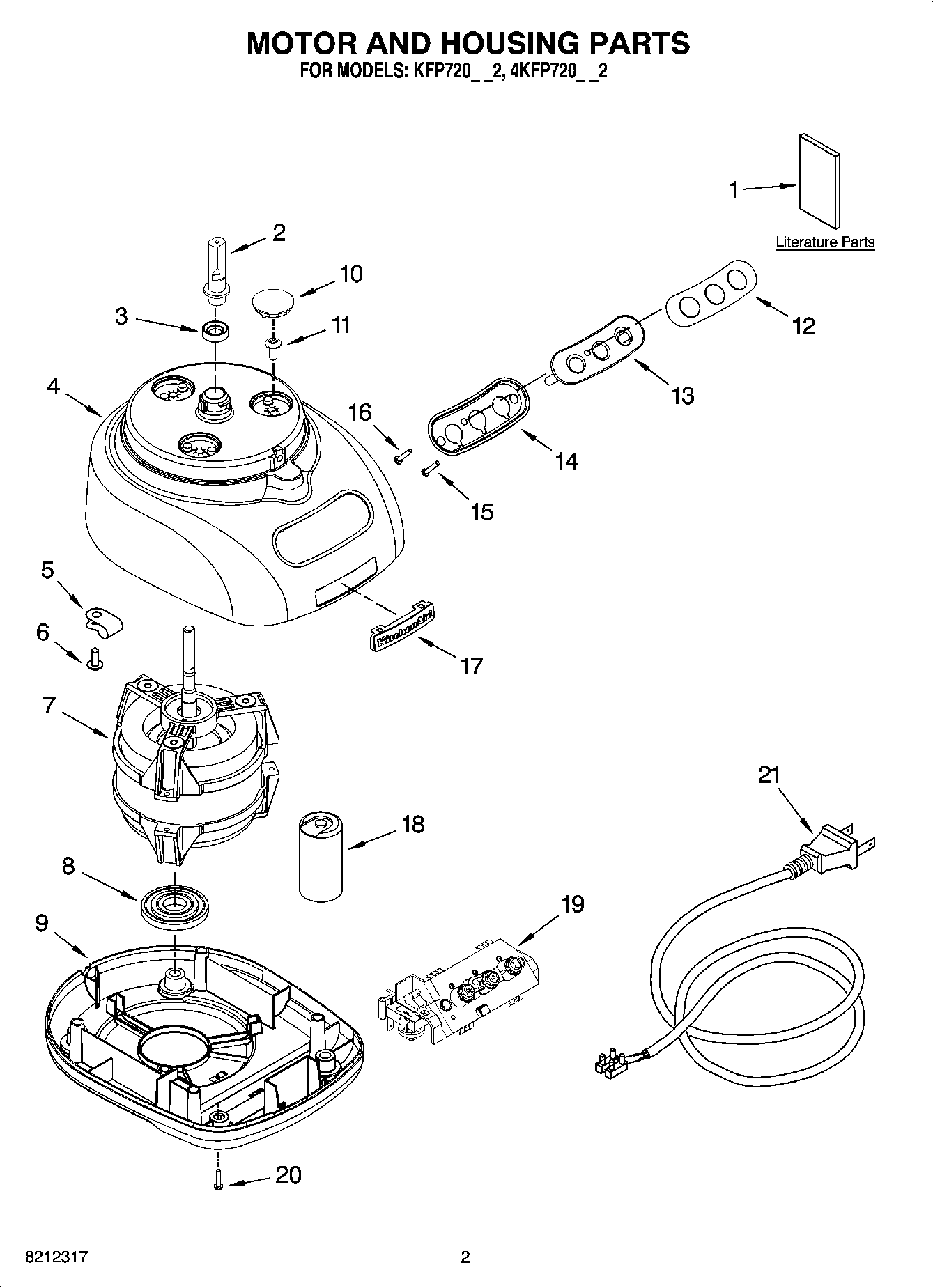

4KFP720WH2 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide Trilingual
2	Sleeve, Motor Shaft
3	8211817 Whirlpool Seal Assembly
4	Housing, Motor (White)
4	Housing, Motor (Cobalt Blue)
4	Housing, Motor (Empire Red)
4	8211809 Whirlpool Housing
4	Housing, Motor (Blue Willow)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	WP8212318 Whirlpool Motor
8	Grommet, Motor
9	Base, Housing (White)
9	Base, Housing (Empire Red)
9	Base, Housing (Cobalt Blue)
9	Base, Housing (Blue Willow)
9	Base, Housing (Onyx Black)
10	8212313 Whirlpool Cover
10	Cover, Screw (Cobalt Blue)
10	Cover, Screw (Empire Red)
10	Cover, Screw (Blue Willow)
10	Cover, Screw (White)
11	Screw, Motor Locking
12	8211878 Whirlpool Overlay
13	Bezel, Switch Panel
14	8211887 Whirlpool Cover
15	Screw, Torx
16	Screw, Switch Panel
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot, Black
21	W10451329 Whirlpool Power Cord
