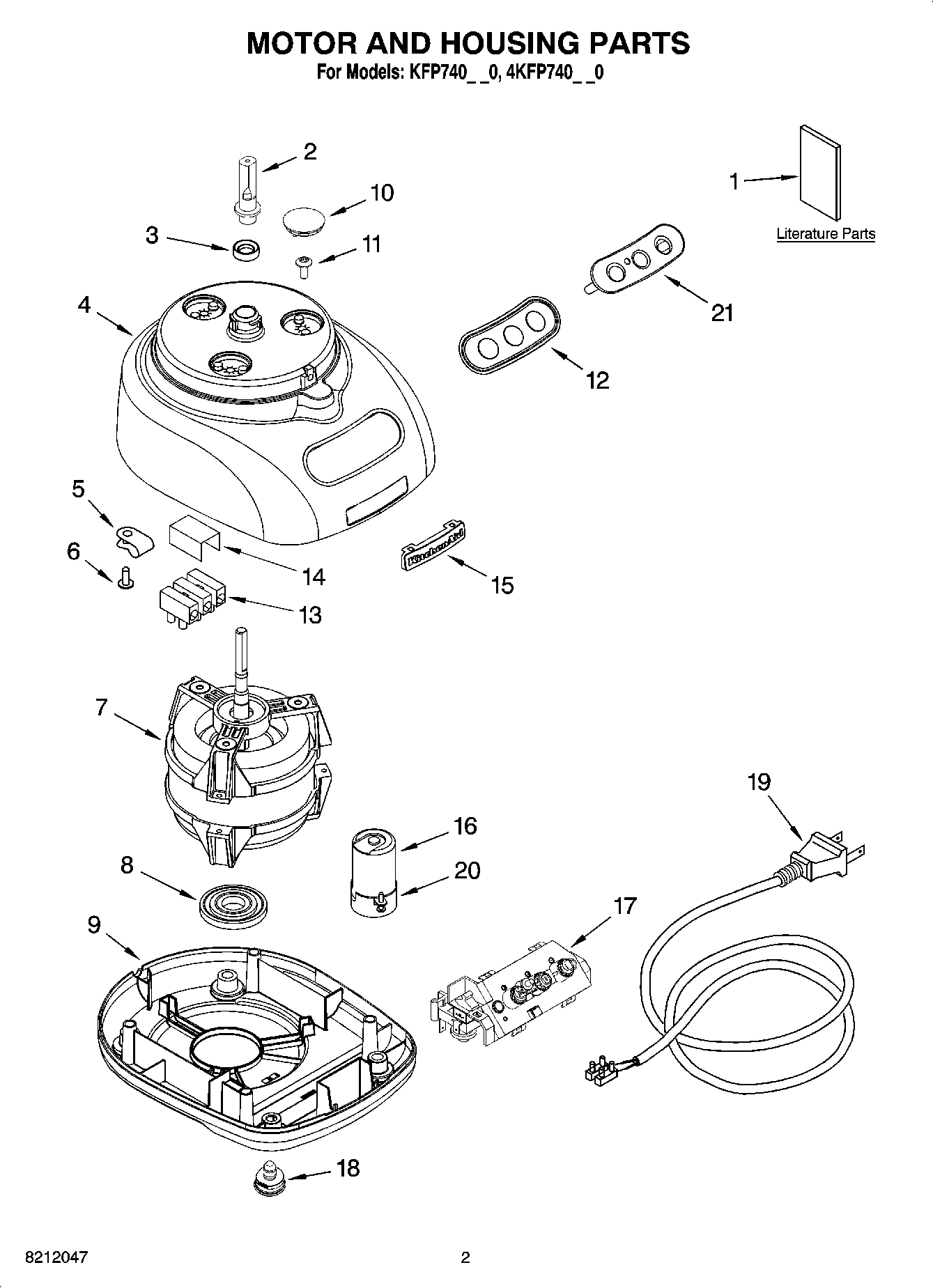

4KFP740CR0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Use & Care Guide
1	Repair Parts List
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Chrome)
4	Housing, Motor (White)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor, Die Cast
8	Grommet, Motor
9	Base, Housing (Onyx Black)
9	Base, Housing (White)
10	Cover, Screw (White)
10	Cover, Screw (Onyx Black)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Block, Terminal
14	Cover, Terminal
15	Nameplate
16	Capacitor
17	Relay & Switch Assembly
18	Foot (Black)
18	Foot (White)
19	Cord, Power (Black for Chrome Model)
19	W10451329 Whirlpool Power Cord
20	Clip, Capacitor
21	Overlay, Switch Assembly (Silver)
21	Overlay & Cover (Black)
