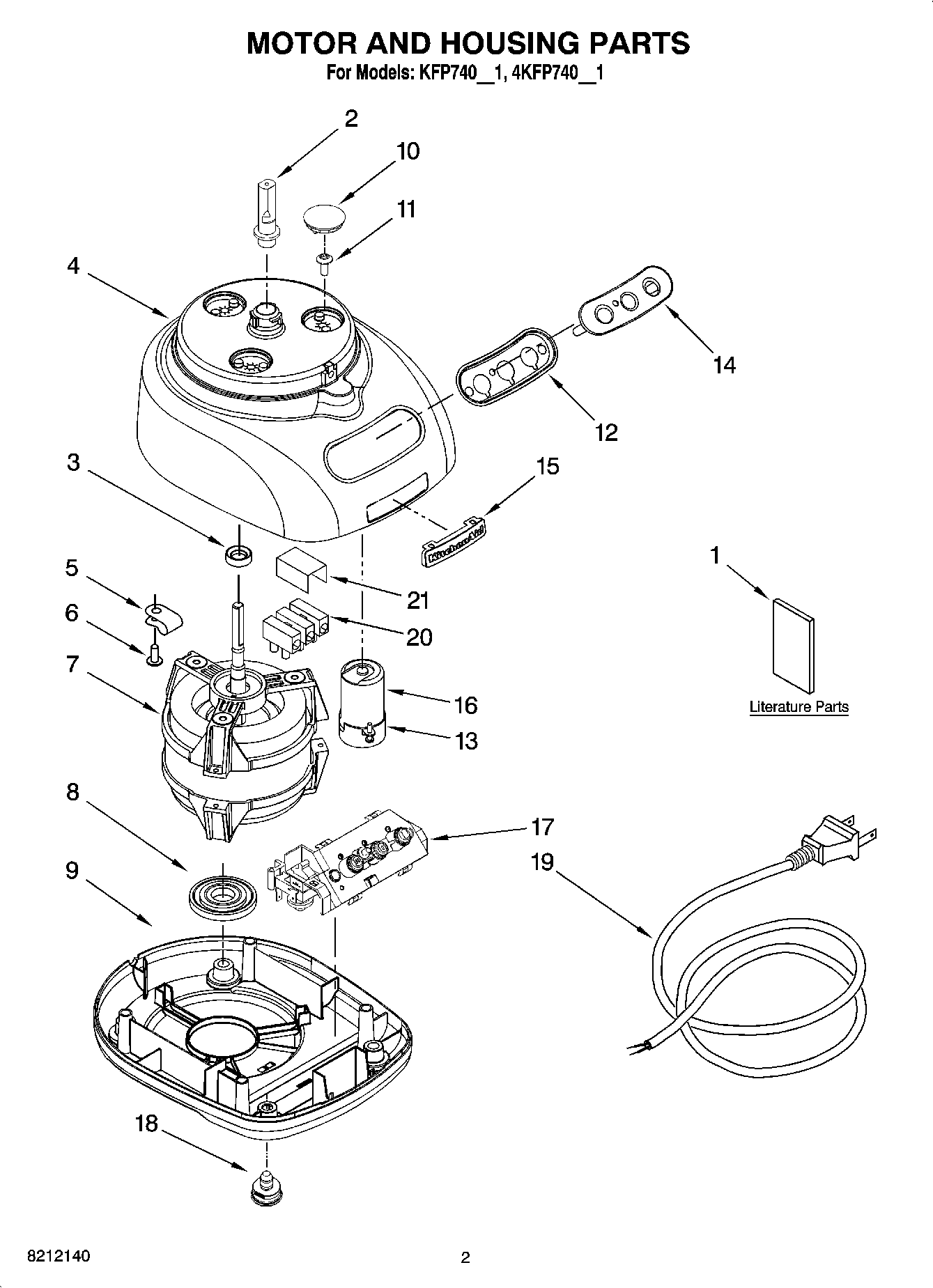

4KFP740WH1 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Use & Care, Trilin
1	Repair Parts List
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (White)
4	Housing, Motor (Onyx Black)
4	Housing, Motor (Blue Willow)
4	Housing, Motor (Gloss Cinnamon)
4	Housing, Motor (Empire Red)
4	Housing, Motor (Buttercup)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor, Sheet Metal
8	Grommet, Motor
9	Base, Housing (Onyx Black)
9	Base, Housing (Gloss Cinnamon)
9	Base, Housing (Blue Willow)
9	Base, Housing (Empire Red)
9	Base, Housing (White)
9	Base, Housing (Buttercup)
10	Cover, Screw (Gloss Cinnamon)
10	Cover, Screw (Buttercup)
10	Cover, Screw (Blue Willow)
10	Cover, Screw (Black)
10	Cover, Screw (Red)
10	Cover, Screw (White)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	Overlay, Switch Assembly (Silver)
15	Nameplate
16	Capacitor
17	Relay & Switch Assembly
18	Foot (White)
18	Foot (Black)
19	W10451329 Whirlpool Power Cord
20	Block, Terminal
21	Cover, Terminal
